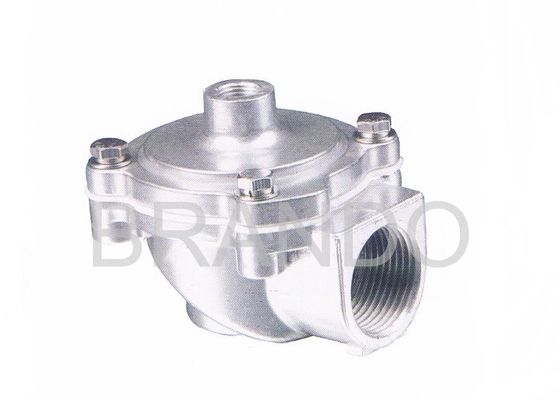

ASCO Pulse Jet Solenoid Valve 0.4 - 0.6Mpa Working Pressure SCG353A042

Large Image : ASCO Pulse Jet Solenoid Valve 0.4 - 0.6Mpa Working Pressure SCG353A042

Product Details:

Place of Origin:	China
Brand Name:	ASCO or OEM
Certification:	CE, ISO
Model Number:	SCG353A042

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	PVC bag, inner box, canton, then packed by pallet
Delivery Time:	Negotiation
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Part Name:	Remote Pilot Pulse Vave	Port Size:	3/4 Inch
Material:	Aluminum, SS304, Enamelled Wire	Voltage:	DC, AC All Available
Working Pressure:	0.4--0.6Mpa	Working Life:	More Than 1 Million Times
Highlight:	ASCO Pulse Valve , ASCO Diaphragm Valve , ASCO Pulse Jet Valve

ASCO Pulse Jet Solenoid Valve 0.4 - 0.6Mpa Working Pressure SCG353A042

Quick details:

Part No. SCG353A042

Port Size: 3/4"

Type: Z type

Nominal Diameter: 25mm

Model Specification:

Model	Port Size	Orifice	Flow Value		Working Pressure Difference
SCG353A043	3/4"	25	14m³/h	233l/min	min0.3	max8.5
SCG353A044	1"	25	23m³/h	283l/min	min0.3	max8.5
SCG353A047	1 1/2"	52	46m³/h	768l/min	min0.3	max8.5
SCG353A050	2"	66	77m³/h	1290l/min	min0.35	max8.5
SCG353A051	2 1/2"	66	92m³/h	1540l/min	min0.35	max8.5
SCG353.060	3"	72	170m³/h	2833l/min	min1	max6

Asco Pulse Valve Working Condition:

Model	SCG353A043	SCG353A044	SCG353A047	SCG353A050	SCG353A051
Working pressure	0.3--0.8Mpa
Ambient temperature	-5--55℃
Relative humidity	＜85%
Medium	dry clean compressed air
Voltage	110V AC/ 220V AC/ 24V DC
Diaphragm woking life	more than 1 million times
Nominal diameter	φ20	φ25	φ40	φ50	φ62
Port thread	G3/4"	G1"	G1 1/2"	G2"	G 2 1/2"

Overall Dimensions of ASCO Pulse valve SCG353A042

ASCO Pulse Jet Solenoid Valve 0.4 - 0.6Mpa Working Pressure SCG353A042 0

Pulse Valve Internal Structure and Main Parts:

Part Name	Material
Solenoid coil	high quanlity enamelled wire
Armature assembly	SS304, 430FR
Small common cap	ADC aluminum
Diaphragm	NBR (nitrile, buna-n)
Top end cap	ADC aluminum
Big spring	SS304
Screws	SS302
Seal	NBR, Viton, all can be customized
Main body	ADC aluminum

Advantages of ASCO pulse valve:

1, mainly designed for dust collecting application, with characteristic of high flow value, long working life and fast switch response, to ensure the steady function of dust removing system

2, the diaphragms with high quality and proffessional design for pulse valve working life

Welcome your enquiry, we also can OEM pulse valve as per your special demands. You can call us, or email us, we will response at once.
