| Place of Origin: | CHINA |
| Brand Name: | BRANDO |
| Certification: | CE |
| Model Number: | CA |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Inner Box,Carton,Pallet |
| Delivery Time: | 4-7 days |
| Payment Terms: | T/T, Western Union, L/C, MoneyGram |
| Supply Ability: | 165000 pieces per month |
| Port Size: | 1'', 1-1/2'', 2'', 2-1/2'' | Valve Operation: | Diaphragm Pilot Operated |
|---|---|---|---|
| Voltage: | 24VDC, 110VAC, 220VAC | Workinｇ Pressure Range: | 0.3 To 0.8MPa |
| Threaded Pulse Jet Valve: | CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T | Dresser Nut Pulse Jet Valve: | CA25DD, RCA25DD, CA45DD |
| Immersion Pulse Jet Valve: | CA50MM, CA62MM, CA76MM, CA89MM | Flanged Pulse Jet Valve: | CAC25FS, CAC45FS |
| Remote Pilot Pulse Jet Valve: | RCA25DD, RCA45T, RCA50T | Application: | Cartridge Filters, Envelope Filters, Ceramic Filters, Sintered Metal Fiber Filters |
| High Light: | Goyen Pulse Valve,Goyen Pulse Jet Valve,Goyen Solenoid Valve |
||

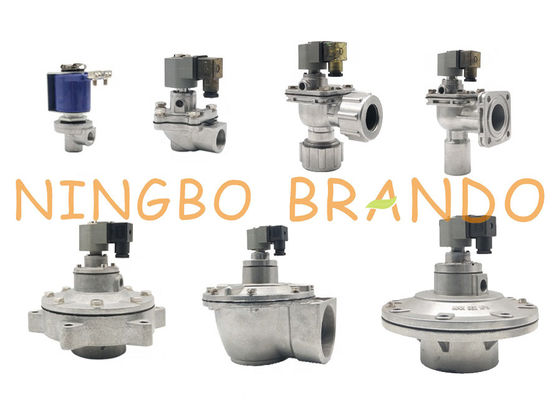

Goyen Type Pulse Valve
Goyen Type Pulse Jet Valves:
1. Threaded Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T
2. Dresser Nut Pulse Jet Valve: CA25DD, RCA25DD, CA45DD
3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA89MM
4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS
5. Remote Pilot Pulse Jet Valve: RCA25DD, RCA45T, RCA50T
Pulse jet valve, also called diaphragm valve acts as a “switch” for compressed air in the dust clean blowing system for pulse bag filters. It is controlled by the electric signals from the pulse-jet control device.Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

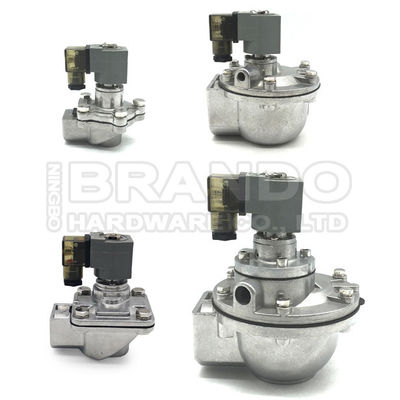

Technical data of Threaded Pulse Jet Valves:
|
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
|
Nonimal size
|
φ15
|
φ20
|
φ25
|
φ35
|
φ45
|
φ50
|
φ62
|
φ76
|
|
Port Size
|
G1/2''
|
G3/4''
|
G1''
|
G1 1/4''
|
G1 1/2''
|
G2''
|
G2 1/2''
|
G3''
|
|
Working pressure
|
0.3-0.8MPa
|
|||||||
|
Temp. range
|
-5℃ - 55℃
|
|||||||
|
Relative humidity
|
≤85%
|
|||||||
|
Working
medium
|
Compressed clean air
|
|||||||
|
Service life
|
Over 1000000 times
|
|||||||
|
Voltage
|
24VDC, 110VAC, 220VAC
|
|||||||

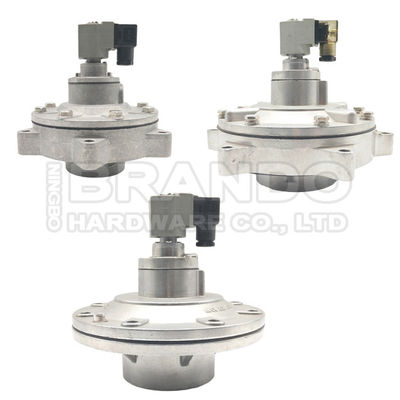

Technical data of Immersion Pulse Jet Valves:
|
Model No
|
CA25MM
|
CA40MM
|
CA50MM
|
CA62MM
|
CA76MM
|
CA102MM
|
||
|
Nominal Size
|
25
|
40
|
50
|
62
|
76
|
102
|
||
|
Port Size
|
mm
|
25
|
40
|
50
|
62
|
76
|
102
|
|
|
inch
|
1''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
3 1/2''
|
4''
|
|
|
Pressure Range
|
0.3 to 0.8MPa
|
|||||||
|
Temp.
Range
|
Nitrile seals
|
-40 to 82℃
|
||||||
|
Viton seals
|
-29 to 232℃
|
|||||||

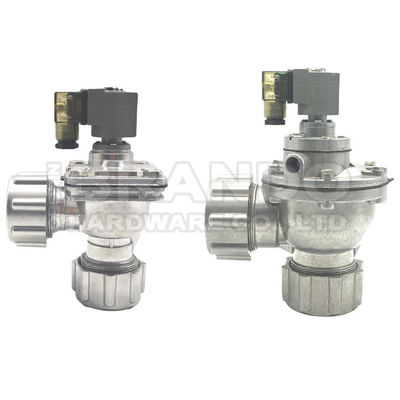

Technical data of Dresser Nut Pulse Jet Valves:
|
Model
|
CA20DD
|
CA25DD
|
CA45DD
|
|
|
Nominal Size
|
20
|
25
|
45
|
|
|
Port size
|
mm
|
20
|
25
|
40
|
|
in
|
3/4
|
1
|
1-1/2
|
|
|
Number of Diaphragms
|
1
|
1
|
2
|
|
|
Flow
|
Kv
|
12
|
20
|
44
|
|
Cv
|
14
|
23
|
51
|
|
|
Pressure (Psi)
|
5 to 125
|
5 to 125
|
5 to 125
|
|
|
Temperature℃
|
NBR
|
-40 to 82
|
-40 to 82
|
-40 to 82
|
|
FKM
|
-29 to 232
|
-29 to 232
|
-29 to 232
|
|

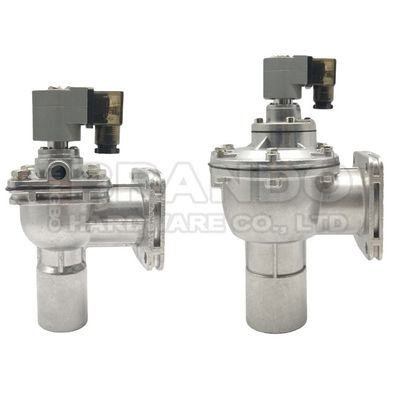

Technical data of Flanged Pulse Jet Valves:
|
Model
|
CAC25FS
|
CAC45FS
|
|
Working Pressure
|
0.3~0.8Mpa
|
|
|
Working Temperature
|
-5~+55℃
|
|
|
Voltage
|
AC24V, AC110V, AC220V, DC24V
|
|
|
Inlet and Out Pipe Size
|
1 1/2'' IN, 1'' OUT
|
2'' IN, 1 1/2'' OUT
|
|
Remote or Integral
|
Integral Pilot
|
|
|
Connection Type
|
Weldless Flange
|
|
|
Body Material
|
Aluminium ADC12
|
|
|
Diaphragm Material
|
NBR (Common), Viton (Available)
|
|

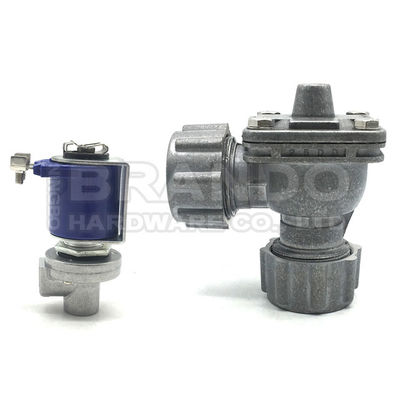

Technical data of Remote Pilot Pulse Jet Valves:
|
Model
|
RCA25DD
|
RCA45T
|
RCA50T
|
|
Port Size
|
Inlet=Outlet=φ35.5mm
|
Inlet=Outlet=1 1/2''
|
Inlet=Outlet=2''
|
|
Pilot Size
|
1/8'', 1/4''
|
||
|
Orifice Size
|
25mm
|
45mm
|
50mm
|
|
Connection
|
Dresser Nut (Quick Mount)
|
Threaded (G, NPT)
|
|
|
Working Pressure
|
0.3 to 0.8 MPa
|
||
|
Diaphragm Nos
|
1
|
2
|
2
|
Technical data of RCA3D2 Solenoid Valve:
|
Model No
|
RCA3D0-330
|
RCA3D0-331
|
RCA3D0-336
|
RCA3D0-338
|
|
Equal To
|
RCA3D2-T-QT/1392B
|
RCA3D2-T-QT/1004B
|
RCA3D2-T-QT/764B
|
RCA3D2-T-QT/1295B
|
|
Coil Type
|
Spade/Screws
|
|||
|
Voltages
|
AC200/240V 50/60Hz
|
AC100/120V 50/60Hz
|
24 VDC
|
12 VDC
|
|
Power
|
17.4/22.6VA
|
15.2/19.7VA
|
20W
|
|
