1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve

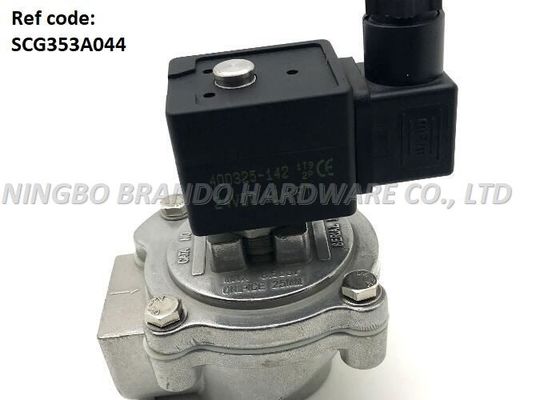

Large Image : 1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve

Product Details:

Place of Origin:	China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	SCG353A044

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Brown box, carton, pallet
Delivery Time:	Negotiation
Payment Terms:	T/T, Western Union
Supply Ability:	10000 pcs per week

Contact Now

Detailed Product Description

Port Size:	G1	Voltage:	220V AC, 110V AC, 24V DC
Orifice:	27mm	Diaphragm:	White TPE
Fluid:	Air	Application:	Dusto Collector System
Highlight:	pulse jet valves , solenoid pulse valve

1 Inch Threaded Body Pneumatic Pulse Valve SCG353A044 With White TPE Diaphragm

Pulse Valve SCG353A044 Short Description:

Voltage: 24/DC, 115/50, 230/50, 24/50

Manufacturer: NINGBO BRANDO HARDWARE CO., LTD

Orifice Size (DN): 27mm

Body: Aluminium

Seal Material: NBR

Flow Coefficient KV (m3/h): 17

Flow Coefficient KV (l/min): 283

Operating Pressure Differential (BAR): 0.3-8.5

Media: Air

Pipe Size: G1

Weight (kg): 0.65

Pulse Valve SCG353A044 Features:

1, Two position, two way, normal close switch, magnetic solenoid water valve.
2, Dust Collector Pulse Solenoid Valves
3, Can be installed at any angle, but it is a good choice when the horizontal tube keep upward.
4, Used to control automatically the air in the pipeline.

Construction of Pulse Valve SCG353A044:

Diaphragm Pulse Valve SCG353A044 Body	Aluminium
Diaphragm Pulse Valve SCG353A044 Core Tube	SS304
Diaphragm Pulse Valve SCG353A044 Core and Plugnut	430FR
Diaphragm Pulse Valve SCG353A044 Core Spring	SS304
Diaphragm Pulse Valve SCG353A044 Seal and Disc	NBR nitrile
Diaphragm Pulse Valve SCG353A044 Diaphragm	TPE, white
Diaphragm Pulse Valve SCG353A044 Shading Ring	Copper
Diaphragm Pulse Valve SCG353A044 Coil Insulation Class	F
Diaphragm Pulse Valve SCG353A044 Connector	Spade plug (cable Ø 6 - 10 mm), ISO 4400
Diaphragm Pulse Valve SCG353A044 Electrical Safety	IEC335

Dimensions of Pulse Valve SCG353A044:

1 Inch Dust Collector Solenoid Valve , Scg353a044 Pulse Jet Solenoid Valve 0

A: 75mm

B: 45mm

C: 27mm

D: 51mm

E: 89mm

F: 75mm

G: 39mm

H: 92mm

J: 113mm

K: 130mm
