| Place of Origin: | China |
| Brand Name: | GOYEN or OEM |
| Certification: | CE, ISO |
| Model Number: | CA/RCA76T |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | PVC bag, inner box, canton, then packed by pallet |
| Delivery Time: | One weeek after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100000 pcs per month |
| Part Name: | Goyen 3" Pulse Valve | Port Size: | 3 Inch |
|---|---|---|---|
| Material: | Aluminum, SS304, Enamelled Wire | Voltage: | DC, AC All Available |
| Working Pressure: | 0.3--0.8Mpa | Working Life: | More Than 1 Million Times |
| High Light: | pulse jet valves,solenoid pulse valve |
||

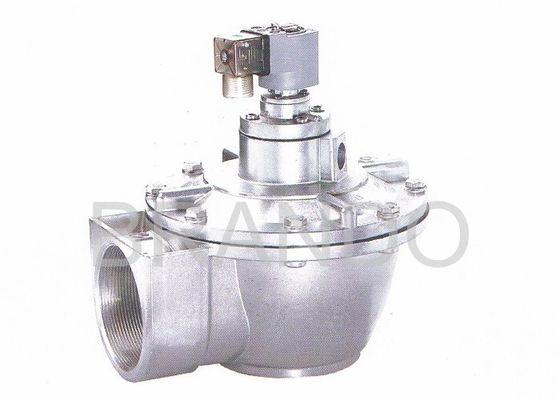

Aluminum SS304 Pneumatic Pulse Valve , 3 Inch Solenoid Valve CA / RCA76T
Advantages:
All goyen pulse valves are available in pneumatic and electric version and in this last case goyen valves has an unique pilot model for the entire range.
Complete range of high efficiency diaphragms pulse jet valve of 3/4", 1", 1 1/2", 2", 2 1/2", 3"
The pulse valve has been developed in order to optimize cleaning systems with quick opening and closing
times that allow to obtain high peak of pressure inside filter elements with a moderate air consumption, ensuring effectiveness and efficiency.
Port Size: 3"
Type: Z type
Connecting pipe port out diameter: 88.90mm
Model Specification:
| Model Number | Blowpipe Dimensions | Diaphragm | Flow Value | |||
| Valve outlet port size | Blowpipe OD | Normall temperature 82℃ | High temperature 232℃ | CV | KV | |
| RCAC20T3 | 3/4" | 26.67 | K2016 | K2017 | 17 | 14 |
| RCAC25T3 | 1" | 33.40 | K2529 | K2530 | 27 | 24 |
| CA/RCA35T | 1 1/4" | 48.26 | K3500 | K3501 | 42 | 36 |
| CA/RCA45T | 1 1/2" | 48.26 | K4502 | K4503 | 51 | 44 |
| CA/RCA50T | 2" | 60.32 | K5004 | K5000 | 106 | 91 |
| CA/RCA62T | 2 1/2" | 73.02 | K5004 | K5000 | 136 | 117 |
| CA/RCA76T | 3" | 88.90 | K7600 | K7601 | 167 | 144 |
Goyen Pulse Valve technical specifications:
| Working Pressure | Working medium | Voltage | Temperature range | Air relative humidity | Protection class | Diaphragm working life |
| 0.3-0.8MPa | clean air | 220V AC |
NBR, Nitrile, -40-82℃ Viton, -29-232℃ |
≤80% | IP65 | More than 1 million times or more than 2 years |
| 0.3-0.8MPa | clean air | 110V AC |
NBR, Nitrile, -40-82℃ Viton, -29-232℃ |
≤80% | IP65 | More than 1 million times or more than 2 years |
| 0.3-0.8MPa | clean air | 24V AC |
NBR, Nitrile, -40-82℃ Viton, -29-232℃ |
≤80% | IP65 | More than 1 million times or more than 2 years |
| 0.3-0.8MPa | clean air | 24V DC |
NBR, Nitrile, -40-82℃ Viton, -29-232℃ |
≤80% | IP65 | More than 1 million times or more than 2 years |
Overall Dimensions of GOYEN CA/RCA76T pulse jet valve
Pulse Valve Internal Structure and Main Parts:
| Part Name | Material |
| Solenoid coil | high quanlity enamelled wire |
| Armature assembly | SS304, 430FR |
| Small common cap | ADC aluminum |
| Diaphragm | NBR (nitrile, buna-n) |
| Top end cap | ADC aluminum |
| Big spring | SS304 |
| Screws | SS302 |
| Seal | NBR, Viton, all can be customized |
| Main body | ADC aluminum |
Advantages of goyen pulse valve:
1, Complete range of high efficiency diaphragms pulse jet valve of 3/4", 1", 1 1/2", 2", 2 1/2", 3"
2, suitable for all types dust collector
Welcome your enquiry, we also can OEM pulse valve as per your special demands. You can call us, or email us, we will response at once.
Contact Person: Brandon Bao
Tel: 86-13454729544
