Place of Origin: | China |
Brand Name: | Brando |
Certification: | CE, ISO |
Model Number: | CA45T |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | Negotiation |
Packaging Details: | Inner Box, Carton, Pallet |
Delivery Time: | 4 to 7 working days |
Payment Terms: | T/T, Western Union, PayPal |
Supply Ability: | 10000 pcs per month |
Port Size: | 1 1/2 Inch | Valve Series: | T Series |
---|---|---|---|
Valve Structure:: | Right Angle, Threaded Port | Coil Voltages: | DC24V, AC110V, AC220V |
Diaphragm Material: | NBR, FKM | Working Pressure Range: | 0.35 To 0.85 MPa |
Highlight: | Threaded Solenoid Pulse Jet Valve,CA Series Pulse Jet Valve,Pulse Valve For Dust Collector |

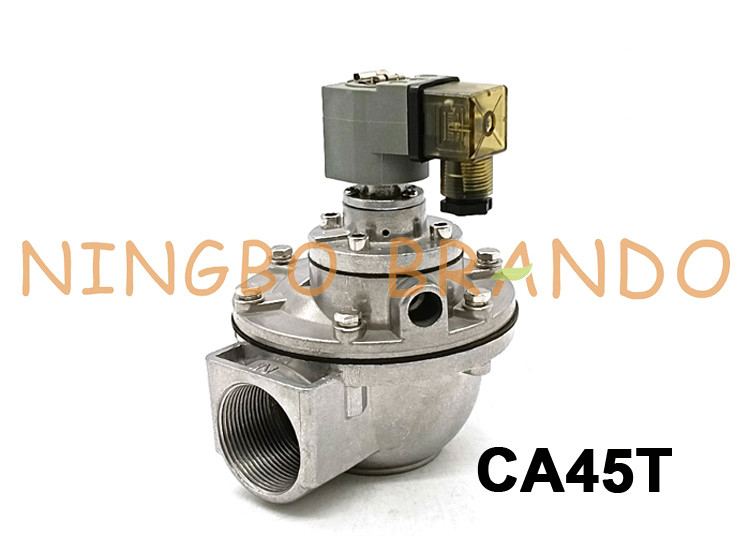

CA45T 1 1/2" Goyen Type Pulse Jet Valve Threaded Right Angle For Bag Filter
Pulse Jet valve is a kind of valve that changes the input long signal into pulse signal by the delay of gas flowing through gas resistance and gas capacity. The inner structure of the air inlet of the right angle pulse jet valve and the installation and use of the positioning steel ring can prevent loosening due to inertial impact, and ensure the accurate installation position at the same time. After long-term use, the stainless steel nut can still ensure convenient disassembly and assembly.
Specification of T Series Pulse Jet Valves:
Model No
|
CA15T
|
CA20T
|
CA25T
|
CA35T
|
CA45T
|
CA50T
|
CA62T
|
CA76T
|
Office Size
(mm)
|
15
|
20
|
25
|
35
|
45
|
50
|
62
|
76
|
Port Size
(Inch)
|
1/2''
|
3/4''
|
1''
|
1 1/2''
|
1 1/2''
|
2''
|
2 1/2''
|
3''
|
Diaphragm Number
|
1
|
2
|
||||||
Working pressure
|
0.35 to 0.85 MPa (5 to 125 PSI)
|
|||||||
Voltage
|
24VDC, 24VAC, 110VAC, 220VAC
|
|||||||
Diaphragm Material
|
NBR, FKM, EPDM
|
|||||||
Body Material
|
Aluminum Alloy
|
|||||||
Valve Structure
|
Right Angle (Outlet is at 90° to Inlet), Threaded Port
|
Dimension of CA45T Pulse Jet Valve:
Ordering Code of T Series Pulse Jet Valve:
Video of CA45T Pulse Jet Valve:
More Goyen Type Pulse Jet Valves for you to choose:
![]() |
![]() |
![]() |
![]() |
T Series | DD Series | FS Series | MM Series |
![]() |
![]() |
![]() |
![]() |
RCA Series | Solenoid Coil | Solenoid Armature | Diaphragm |
