Place of Origin: | CHINA |
Brand Name: | BRANDO |
Certification: | ISO |
Model Number: | DMF-Z-50S |
Minimum Order Quantity: | 1 pc |
---|---|
Price: | negotiation |
Packaging Details: | Box,Carton |
Delivery Time: | 5 Work days |
Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
Supply Ability: | 6000 pcs per month |
Material: | Aluminum | Pressure: | Medium Pressure |
---|---|---|---|
Port Szie: | 2 Inch | Power: | Pneumatic |
Color: | Sliver | Application: | Dust Removal |
Highlight: | pulse jet valves,pulse solenoid valve |

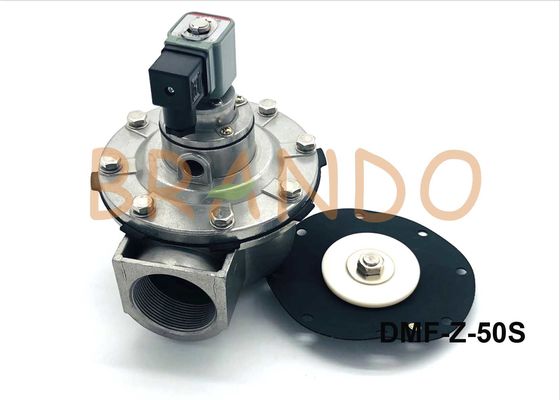

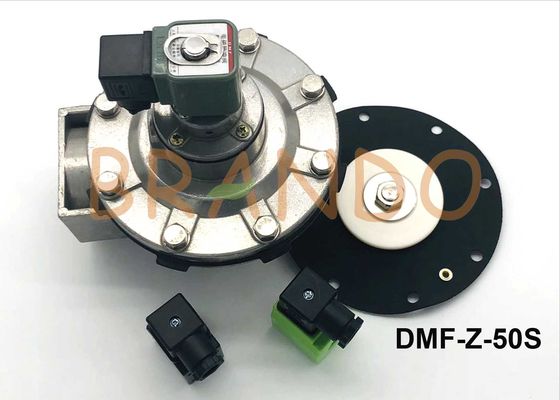

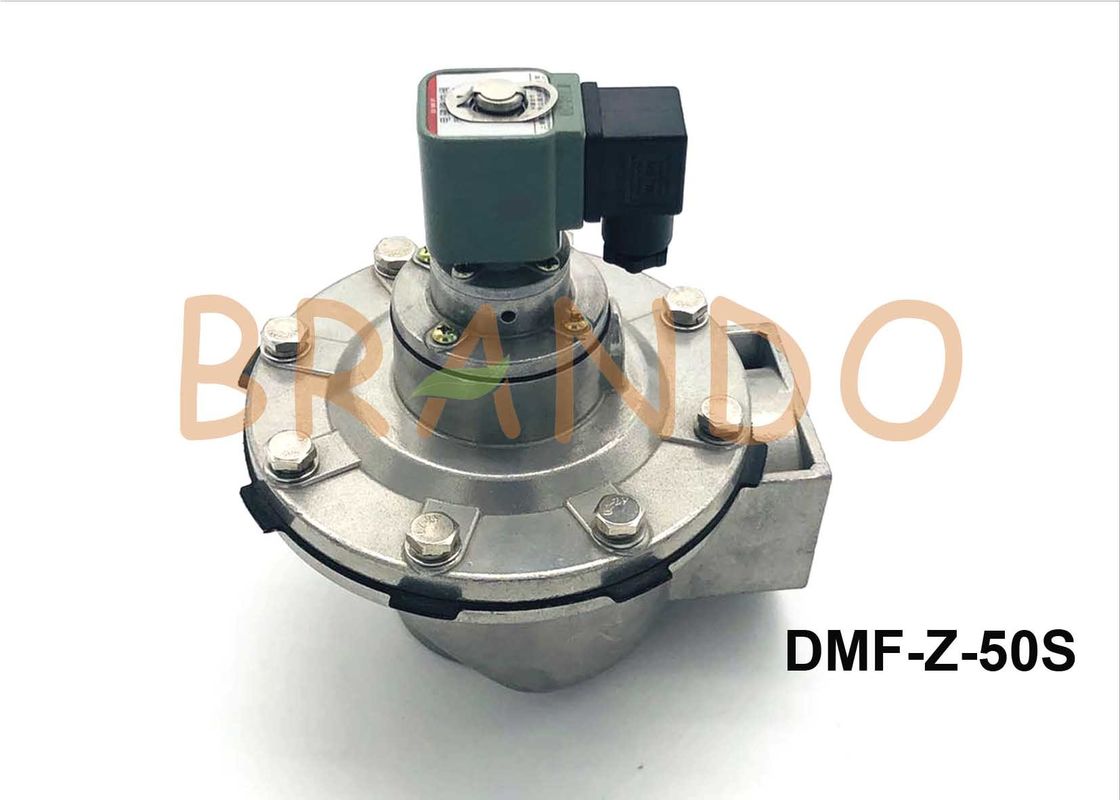

Aluminum Pneumatic DMF-Z-50S Pulse Valve 2 inch Port Size For Dust Removal
Electromagnetic pulse valve refers to a diaphragm valve that combines a solenoid valve, a pilot valve and a pulse valve and is directly controlled by an electric signal.
The role of electromagnetic pulse valve:
It is to control the size of the oil pressure in the oil circuit. Generally installed in the main oil circuit or damper back pressure oil circuit, to reduce the oil pressure shock when shifting and locking unlocking, so that the equipment operation is stable.
Specification

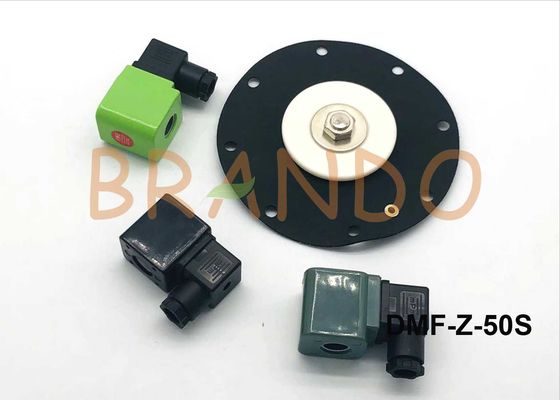

Part Name | Material |
Solenoid coil | high quanlity enamelled wire |
Armature assembly | SS304, 430FR |
Small common cap | ADC aluminum |
Diaphragm | NBR (nitrile, buna-n) |
Top end cap | ADC aluminum |
Big spring | SS304 |
Working Pressure:0.2-0.6Mpa
Vlotage:AC110V,AC220V,DC24V
Relative humidity of air:≤85%
Protection Level:IP65
Diaphragm life:Five years
Dimension of Drawing
Type | Kv/Cv | Blowing Area | Port Size | Weight | Packing Dimension |
Dmf-z-50s | 61.21/71.47 | 18-28㎡ | G2" | 2.35Kg | 18x16x21.5cm |
All kinds of types you can choose
Solenoid valve features
1, a variety of models, a wide range of uses.
Although the solenoid valve is inherently insufficient, the advantages are still outstanding, so it is designed into a wide variety of products to meet a variety of needs, and is extremely versatile. The advances in solenoid valve technology are also centered around how to overcome the inherent deficiencies and how to make good use of their inherent advantages.
2, the system is simple, then pick up the computer, the price is low.
The solenoid valve itself is simple in structure and low in price, and is easy to install and maintain compared to other types of actuators such as regulating valves. What is remarkable is that the self-control system is much simpler and the price is much lower. Since the solenoid valve is controlled by the switching signal, it is very convenient to connect with the industrial computer. In today's era of computer popularity and price drop, the advantages of solenoid valves are obvious.
3, the external leakage is blocked, the internal leakage is easy to control, use.
The solenoid valve is operated by an electromagnetic force on the iron core sealed in the magnetic isolation bushing of the electric control valve. There is no dynamic seal, so the external leakage is easy to block. The electric valve torque control is not easy, it is easy to produce internal leakage, and even the stem of the valve stem is broken; the structure of the electromagnetic valve is easy to control the internal leakage until it drops to zero.
4, the action express, the power is small, the shape is light.
The solenoid valve response time can be as short as a few milliseconds, even a pilot solenoid valve can be controlled in tens of milliseconds. Due to the self-contained loop, it is more sensitive than other self-controlled valves. The well-designed solenoid valve has low power consumption and is an energy-saving product. It can also be used to trigger the action and automatically maintain the valve position. It usually consumes no power at all. The solenoid valve has a small size, which saves space and is light and beautiful.
5, the adjustment accuracy is limited, the applicable medium is limited.
Solenoid valves usually only have two states of switching. The spool can only be in two positions and cannot be continuously adjusted. so the adjustment accuracy is also limited. Solenoid valves have high requirements on the cleanliness of the medium. Granular media cannot be used. If it is an impurity, it must be filtered first. In addition, viscous media is not suitable, and the viscosity range of the medium for a particular product is relatively narrow.
please care the products details at our website, any confuse please contact us or Note your request online. Big quantity purchase ,please contact our online service to ask more economic shipping way or discuss the more pretty price.
Welcome our inquiry!
Contact Person: Brandon Bao
Tel: 86-13454729544
Fax: 86-574-83879820
