| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | BPV10 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Application: | Reverse Osmosis, Process Water, RO Water System, Water Purifier, Pure Water, Water Dispenser | Temperature: | -10℃~+80℃ |
|---|---|---|---|
| Power: | Solenoid | Media: | Water, Air, Oil |
| Structure: | Plunger | Operation: | Direct Acting |
| Seal Material: | NBR, FKM, EPDM | Voltage: | DC12V DC24V AC24V AC120V AC240V |
| Port Size: | NPT1/4'' | Body Material: | POM |
| High Light: | 18 Seconds Delay RO Solenoid Valve,Auto Fush RO Solenoid Valve,Washing Machine Solenoid Valve |
||

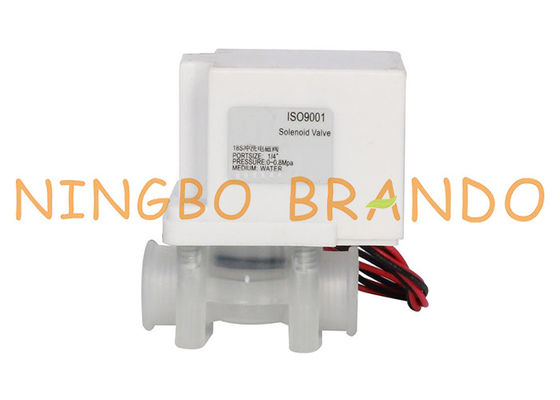

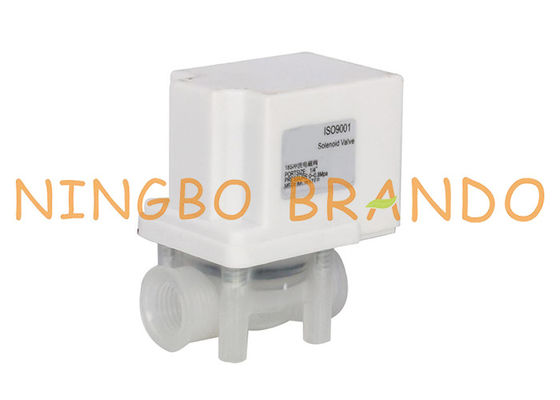

NPT 1/4'' POM Plastic 18 Seconds Delay Auto Flush RO Solenoid Valve
Auto flush valves are engineered to maximize system efficiency and prolong membrane life. These components utilise a normally closed solenoid valve which automatically “power flushes” the membrane upon start-up.
This turbulent water action removes organic and inorganic contaminants from the membrane surface. Any standing, idle water in the membrane module is automatically purged to the drain.
We recommend that membranes are flushed regularly to maintain system performance and membrane life. These flush solenoids perform that process seamlessly and automatically.
Technical data:
| Characteristic | 1)Direct acting,0 rated bar pressure.low power 2)compact design to save the space |
| Medium | Air,water,steam,oil,etc. |
| Temperature |
NBR: -10°C to 80 °C EPDM: -10°C to 120 °C FKM:-10°C to 150 °C |
| Pressure | 0-8.0Mpa |
| Port Size | NPT1/4'' |
| Port Thread | G, NPT |
| Orifice | DN10 |
| Voltage |
DC-12V,24V AC-24V,120V,110V,220V/50HZ |
| Voltage Range | ±10% |
| Material |
Body-Nylon,PP,POM Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- stainless steel 304 |
Main Dimension of RO Solenoid Water Valve:
Brando Factory Production of Solenoid Valves:
More Plastic Reverse Osmosis Solenoid Valve(RO SV):
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
Contact Person: Mia
Tel: +8613454729544
