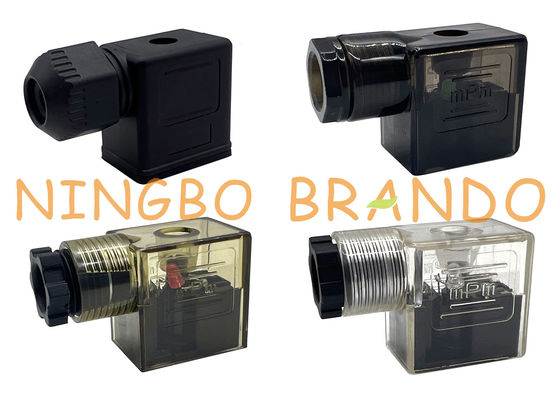

DIN 43650B Connector

DIN 43650B Connector

  • DIN 43650B Connector
DIN 43650B Connector
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE
Model Number: DIN 43650B
Payment & Shipping Terms:
Minimum Order Quantity: 3pcs
Price: negotiation
Packaging Details: decades ad box,then put into carton
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 6000pcs per two days
Contact Now
Detailed Product Description
Part Name: Solenoid Coil Connector Gender: Female
PIN Number: 3 PIN Distance: 11mm
DIN Type: DIN 43650 Form B Form: 2+1GND, 3+1GND
Wokring Voltage: AC380V, DC300V Protection Class: IP65
Nomical Current: 10A Contact Resistance: ≤5mΩ
Max Conductor Section: 3x1.5mm² Fixing Screw: M3x30
LED: Available
High Light:

DIN43650B Connector

,

DIN 43650 B Connector

,

DIN 43650 Form B Connector

DIN 43650B Connector


Other names for DIN 43650 connectors include MPM or sugarcube connectors. These solenoid valve connectors come in three versions: Form A, Form B or Form C. They have met various overvoltage protection requirements and are made to function within certain voltage limits. Solenoid Coil Connector is used extensively to provide electrical connection in a wide range of applications. The most common application for Solenoid Coil connector is in conjunction with pneumatic, hydraulic or electromagnetic devices, including solenoid valves. Other applications include, for example, pressure transducers, proximity switches, level sensors, limit switches and low energy motors.



Dimension & Data of Solenoid Coil Connector:



DIN 43650A Connector:

Dimension
DIN Type
DIN 43650 Form A
18mm MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector 0
Distance
18mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working
Voltage
AC380V, DC300V
Fixing Screw
M3x28
Nomical Current
10A
Contact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN 43650B Connector:

Dimension
DIN Type
DIN 43650 Form B
18mm MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector 1
Distance
11mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working Voltage
AC380V, DC300V
Fixing Srew
M3x30
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN 43650C Connector:

Dimension
DIN Type
DIN 43650 Form C
18mm MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector 2
Distance
9.4mm
Form
2+1GND, 3+1GND
Protection Class
IP65
Working Voltage
AC380V, DC300V
Fixing Screw
M3x25
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



GASKETS

There are three gasket options available for the DIN connectors: NBR Profile, NBR Flat or EPDM Flat. Each of the different gaskets will has different characteristics, mainly based on the material from which they are made. NBR rubber is also known as nitrile rubber. NBR is an oil resistant material, which includes both mineral and vegetable oil. EPDM rubber does not have much resilience against oils, but it does stand up well to ozone, heat and weather. Both materials are satisfactory against basic diluted acids and alkalines. Most of the gaskets available are from HTP and Hirschmann. Separate gaskets are also available for most of the male DIN connectors.



THREAD TYPES
DIN 43650 solenoid valve connectors will have different thread types for the cable entry, depending on the form. Form A connectors are currently available in PG 9, PG 11, M16, or 1/2" NPT thread sizes. Form B features PG 9 or 1/2" NPT threads, while Form C connectors are only available with PG 7 thread. M16 is a metric thread type, which globally is the most commonly used type. The number refers to the nominal diameter in millimeters. PG stands for Panzergewinde and refers to German standards. PG has a bigger thread angle but a lower thread depth than metric or NPT. NPT stands for National Pipe Thread and is an American standard. Unlike metric or PG, these threads are tapered, which helps form a seal.



PIN SPACING
Pin spacing refers to the distance between pins #1 and #2. Each form has different pin spacing, and the pin type also changes depending on the form. Form A connectors have "U" shaped pins facing inwards with an 18 mm pin spacing. Form B connectors have 2 different pin spacings: 10mm & 11mm. 11mm connectors will have 3 flat blade contacts and are the industry standard. 10mm connectors will have 1 flat blade and 2 U shaped pins pointing outward. Form C connectors have flat blade pins with 8mm or 9.4mm (industry standard) pin spacing. Diagrams of the pin spacing are pictured at the top of the page to better visualize their design.
