Home ProductsSolenoid Coil Connector

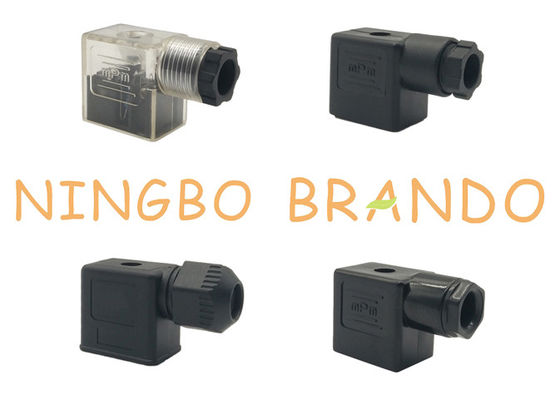

DIN 43650 Connector

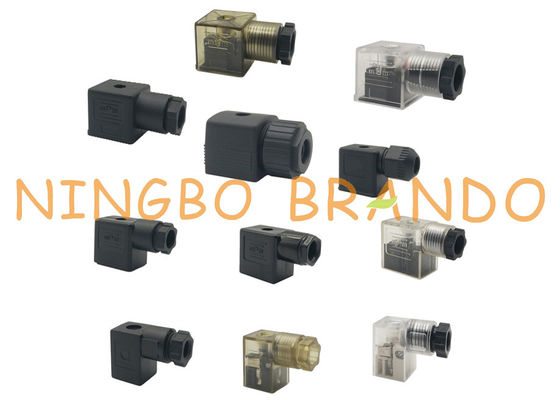

DIN 43650 Connector

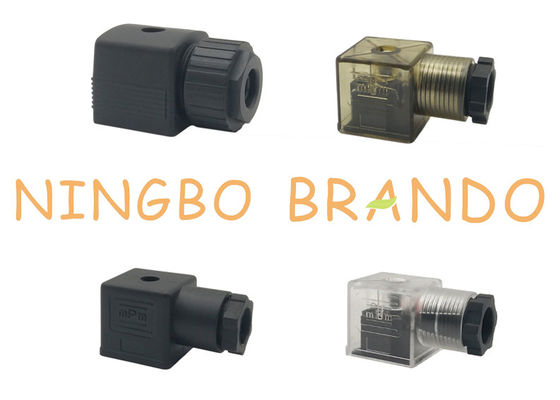

DIN 43650 Connector
video

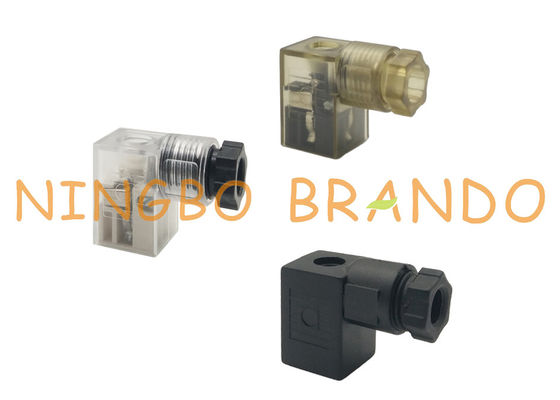

DIN 43650 Connector
Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO
Certification: CE
Model Number: DIN 43650
Payment & Shipping Terms:
Minimum Order Quantity: 3pcs
Price: negotiation
Packaging Details: decades ad box,then put into carton
Delivery Time: 4-7 work days
Payment Terms: L/C, T/T, Western Union, D/A
Supply Ability: 6000pcs per two days
Contact Now
Detailed Product Description
Part Name: Solenoid Coil Connector Gender: Female
PIN Number: 3 PIN Distance: 18mm, 11mm, 9.4mm
DIN Type: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C Form: 2+1GND, 3+1GND
Wokring Voltage: AC380V, DC300V Protection Class: IP65, IP67, IP68 (Waterproof)
Nomical Current: 10A Contact Resistance: ≤5mΩ
Max Conductor Section: 3x1.5mm², 3x0.75mm² Fixing Screw: M3x28, M3x30, M3x25
LED: Available
High Light:

DIN 43650 A Connector

,

DIN 43650 B Connector

,

Solenoid Valve Connector

DIN 43650 Connector


Solenoid Coil Connector is used extensively to provide electrical connection in a wide range of applications. The most common application for Solenoid Coil connector is in conjunction with pneumatic, hydraulic or electromagnetic devices, including solenoid valves. Other applications include, for example, pressure transducers, proximity switches, level sensors, limit switches and low energy motors.


Product Features:
1. Product Name: Solenoid Valve Coil Connector
2. Application: Power
3. Gender: Female
4. Pin Number: 3 PIN
5. Distance: 18mm, 11mm, 9.4mm
6. DIN Type: DIN 43650 Form A, DIN 43650 Form B, DIN 43650 Form C
7. Form: 2+1GND, 3+1GND
8. Wokring Voltage: AC380V, DC300V
9. Protection Class: IP65, IP67, IP68 (Waterproof)
10. Nomical Current: 10A
11. Contact Resistance: ≤5mΩ
12. Max Conductor Section: 3x1.5mm², 3x0.75mm²
13. Fixing Screw: M3x28, M3x30, M3x25
14. LED: Available



Dimension & Data of Solenoid Coil Connector:



DIN 43650A Connector:

Dimension
DIN Type
DIN 43650 Form A
18mm MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector 0
Distance
18mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working
Voltage
AC380V, DC300V
Fixing Screw
M3x28
Nomical Current
10A
Contact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN 43650B Connector:

Dimension
DIN Type
DIN 43650 Form B
18mm MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector 1
Distance
11mm
Form
2+1GND, 3+1GND
Protection
Class
IP65
Working Voltage
AC380V, DC300V
Fixing Srew
M3x30
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²



DIN 43650C Connector:

Dimension
DIN Type
DIN 43650 Form C
18mm MPM DIN 43650 Form A DIN 43650A Solenoid Coil Connector 2
Distance
9.4mm
Form
2+1GND, 3+1GND
Protection Class
IP65
Working Voltage
AC380V, DC300V
Fixing Screw
M3x25
Nomical Current
10A
Cntact Resistance
≤5mΩ
Max Conductor Section
3x1.5mm²


Brando manufactures an extensive and comprehensive range of internal- and external-thread connectors conforming to industry standard EN 175301-803 (formerly DIN 43650). Standard options include LED illuminated devices as well as VDR, diodes to offer protection against overvoltage peaks. Solenoid coil connectors offer protection from dust and water when correctly installed with screw and gasket which are supplied together with the connector.



Brando's field-attachable, external-nut design is mechanically superior to traditional internal-nut DIN valve connectors, achieving greater cable retention and improved sealing to IP67. Standard internal thread DIN valve connectors are IP65 rated and available with different thread style, gaskets and circuitry options.



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
