Product Details:
Place of Origin: Ningbo, China
Brand Name: BRANDO or OEM
Certification: CE, ISO
Model Number: BF018
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: PVC bag, inner box, carton, pallet
Delivery Time: 7 working days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000000PCS PER MONTH
Contact Now
Detailed Product Description
Part Name: Female Elbow Adapter Material: Acetal, Polypropylene, Brass, Pom
Size: 1/8" 1/4" 3/8" 1/2" "5/16" Type: Quick Connecting, Push In Type, Male Thread, Elbow
Application: Water Purification, Beverage, Pneumatic OEM: Yes
ODM: Yes Color: White
High Light:

Reverse Osmosis Accessories

,

RO Water Purifier Spare Parts

Female Elbow Fitting / Adapter reverse osmosis spare parts NSF POM Plastic



Female Threaded Elbow Adapter Features:

Constructed of Polypropylene with Leak Resistant Dual EPDM O-rings.
Our Polypropylene Fittings are designed for fluid applications where risk of chemical attack and/or leak resistance is of concern.

All fittings are constructed of FDA approved materials and are suitable for food contact.


Female G Threaded 90° Elbow Quick Connect Fitting Features
1, Leak Resistant Dual EPDM O-rings
2, Chemical Resistant Polypropylene
3, NSF/ANSI Standard 58 Certified - 150 p.s.i @ 70ºF (10 Bar @ 20ºC)
4, 60 p.s.i @ 140ºF (4 Bar @ 60ºC)
5, For use with Plastic or Soft Metal Tubing



Female G Thread and Tube Sizes for your options:

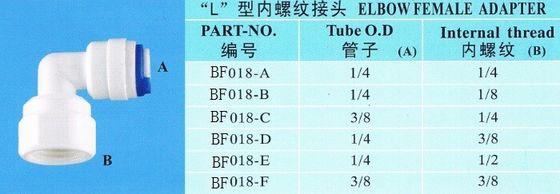

Elbow female adapter
Part No. Tube OD (A) Internal Thread (C)
BF018-A 1/4 1/4
BF018-B 1/4 1/8
BF018-C 3/8 1/4
BF018-D 1/4 3/8
BF018-E 1/4 1/2
BF018-F 3/8 3/8



Female Elbow Fitting / Adapter reverse osmosis spare parts NSF POM Plastic 0



Female Elbow Fitting / Adapter reverse osmosis spare parts NSF POM Plastic 1

Female Elbow Fitting / Adapter reverse osmosis spare parts NSF POM Plastic 2

We also have other adapters, pls have a reference bellow:



Male Tee Adapter Each Port Size Option:

Male Tee Adapter for reverse osmosis water treatment system
Part No. Tube OD (A) Tube OD (B) Tube OD (C)
BF007-A 1/4 1/4 1/4
BF007-B 1/4 3/8 1/4
BF007-C 1/4 1/4 3/8
BF007-D 1/4 3/8 3/8
BF007-E 3/8 3/8 3/8
BF007-F 3/8 1/4 3/8



Female Elbow Fitting / Adapter reverse osmosis spare parts NSF POM Plastic 3



Female Elbow Fitting / Adapter reverse osmosis spare parts NSF POM Plastic 4





More Descriptions:

1--Material: FDA & NSF certified POM plastic
2--Application :
Our quick fittings and connectors are widely used in water, beverage and food applications,
such as RO water filtration system, water treatment system, coffee maker, beverage machine,
refrigerator, vending machine, and so on.
3-- Leakage Proof Design: Have been proved in markets for years.
4-- Light weight, and easy to install.
5-- Color: white or grey body with blue locking clip.



Female Elbow Fitting / Adapter reverse osmosis spare parts NSF POM Plastic 5



Female Elbow Fitting / Adapter reverse osmosis spare parts NSF POM Plastic 6



Female Elbow Fitting / Adapter reverse osmosis spare parts NSF POM Plastic 7



Material Standards:

Material Options Fitting Color O-ring
Acetal Grey, Black, White NBR/EPDM
Polypropylene White NBR/EPDM
Brass Brass, or chromed NBR/EPDM



Fitting Working Pressure and Temperature:

  Small Size Large Size
  5/32" 3/16" 1/4" 5/16" 3/8" 1/2" 5/8" 7/8" 28mm
  4mm 5mm 6mm 8mm 10mm 12mm 15mm 16mm 18mm 22mm 28mm

1℃

34℉

16bar

230psi

11bar

170psi

11bar

170psi

20℃

68℉

16bar

230psi

11bar

170psi

11bar

170psi

65℃

150℉

10bar

150psi

7bar

100psi

7bar

100psi



Outer Diameter Tolerance Limit of Tubing Used with Fittings:

Size Tolerance
small size 5/32", 4mm +-0.004" (+-0.1mm)
small size 3/16", 5mm +-0.004" (+-0.1mm)
small size 1/4", 6mm +-0.004" (+-0.1mm)
small size 5/16", 8mm +-0.004" (+-0.1mm)
small size 3/8", 10mm +-0.004" (+-0.1mm)
small size 1/2", 12mm +-0.004" (+-0.1mm)
large size 5/8", 15(16)mm +-0.004" (+-0.1mm)
large size 7/8", 18(22)mm +-0.004" (+-0.1mm)
large size 28mm +-0.004" (+-0.1mm)



Maximum Permissible Torque:

      1/8", 1/4" 3/8", 1/2" 3/4"
Plastic Maximum Torque Nm 1.5 3.0 4.0
Steel Maximum Torque Nm 7.0-9.0 12.0-14.0 22.0-24.0 28.0-30.0 40.0





We aslo have many types quick fitting, push-in tube fitting, weclome your any question, we will response at once
