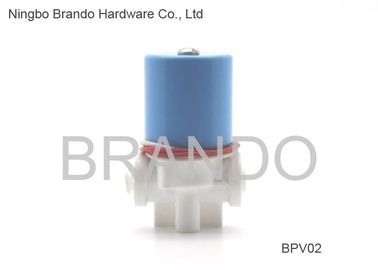

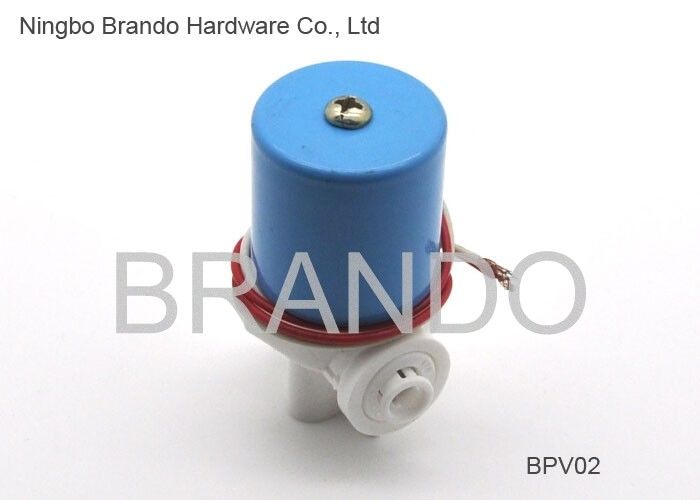

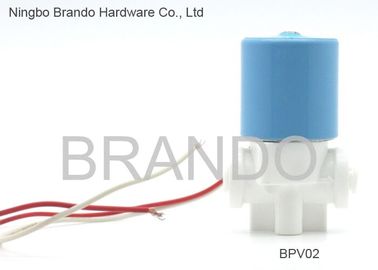

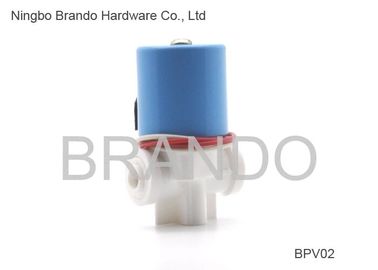

36V DC Feed Water Cylinder Blue Cap Quick Connector Solenoid Valve for RO System PARTS

36v DC Feed Water Cylinder Blue Cap Quick Connector Solenoid Valve for RO Water Treatment

Water Solenoid Valve Description:

The solenoid valve is usually used for RO purifier water treatment, with DC24V DC36V voltage option. The valve is assembled with high quality copper wire solenoid coil, and no leaking armature tube  assembly. The valve body is made of POM, delrin material, with good performance of strength. And also we assemble special designed o-ring to ensure no leaking while valve working.

Characteristic: Direct acting solenoid valve, low power consumption solenoid valve
Application: Food grade solenoid valve, used for water dispenser, RO water purifier system, washing machine, alcohol dispenser, etc
Working media: Water, Air, Oil
Working media temperature: -10℃ ~ 80℃
Valve body material: POM, delrin
Port connecting type: Fast fitting type, push-in type, for PE pipe, pipe OD 6.35mm
Working pressure: 0~8.0 Bar
Nominal diameter: DN10
Voltage: DC 12V 24V; AC 24V 120V 240V, 60Hz; AC 110V 220V, 50Hz
Coil specification: AC 6VA, DC 6W, IP65, 100%ED
Seal material: NBR, Viton
Magnetic guide tube: SS304
Plunger set: 430FR


36V DC Water Solenoid Valve Overall Dimensions:

More Details of 36v DC Blue Cap RO Water Solenoid Valve:

Packaging:

Each solenoid valve will be tested by 100% of leaking testing and function testing, after dried then packed

by inner box, then loaded into export standard carton for sea shipment, and for easy to find in the container and transportation, we will pack all goods as a pallet if goods amount is big.

Quality Warranty:

Before you place order to us, we will send you our common type sample or as your customized sample for your checking of the quality and function, after you confirmed we will keep this confirmed sample as production and inspection standard, before goods ready will test and checking one by one then ship you.

After you get goods, if any quality is different than the confirmed sample datas, just find us, we will solve your problem or give you some replacement.

Delivery Time:

Depending on your order quantity, if quantity is big, the delivery time is around 20 days after receive deposit, if less quantity, we could ship at once after receive payment.

More other Solenoid Valve for Your Selection:

Quality Control:

Each solenoid valve will tested by leaking test and working test, to avoid any problem after ship out to customer all over the world.

Welcome Contact Us with Your Any Question or Requriement, We Will Response At Once:
