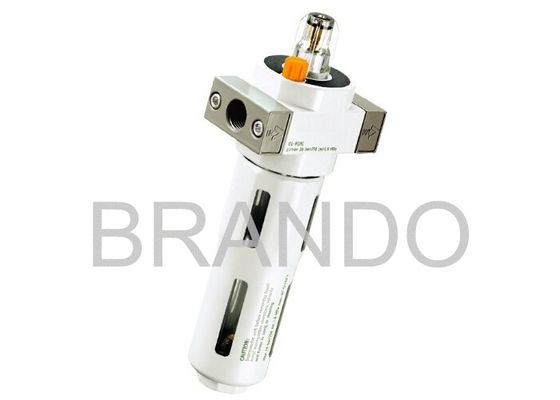

Air Filter Regulator Lubricator FRL Pneumatic System With Zinc Die-Casting Housing

Air Filter Regulator Lubricator FRL Pneumatic System With Zinc Die-Casting Housing

  • Air Filter Regulator Lubricator FRL Pneumatic System With Zinc Die-Casting Housing
Air Filter Regulator Lubricator FRL Pneumatic System With Zinc Die-Casting Housing
Product Details:
Place of Origin: CHINA
Brand Name: BRANDO or OEM
Certification: CE, ISO
Model Number: OU
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: bubble bag, inner box, carton, then pallet
Delivery Time: 7 working days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000pcs per month
Contact Now
Detailed Product Description
Part Name: Air Source Treatment Unit Type: Two Elements
Port Size: 1/8", 1/4", 3/8", 1/2", 3/4", 1" Working Medium: Air
Working Pressure: 0.5-12bar; 0.5-7bar Temperature Range: 0--60℃
High Light:

regulator filter lubricator

,

FRL air regulator

Air Filter Regulator Lubricator FRL Pneumatic System With Zinc Die-Casting Housing





Features:
(1 ) Filtering Grade: 5μm
(2) Proof Pressure: 1.6Mpa
(3) Pressure Range: 0.05-1.2MPa
(4) Temperature Range: 5-60°C
(5) Port Size: Mini-1/8", 1/4", 3/8";  Midi-1/4", 3/8", 1/2", 3/4"
(6) Min. Standard Normal Flow Rate: Miini: 3L/min;  Midi: 6L/min
(7) Material Infomation: Housing: Zinc die-casting;
                                     Filter bowl and oil bowl: PC;
                                     Metal Protective Hood: Aluminium alloy;
                                     Adjusting knob: POM
                                     Sealing: NBR;



Festo pneumatic air treatment unit
The OU consisted of OFR and OL,each unit can be ordered separately.
The OF with water separator cleans the compressed air of fluid oil,condensation and dirt particles.For special application,the standard 40μm filter element may easily be replaced by a 5μm filter element.
The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.
The proportional lubricator adds a regulated quantity of oil to the filtered air.The oil-mist content proportional to the flow and oil can be added during operation.The oil drip rate is controlled by the adjustable bolt.Normally,1to 12 drops /1000L of the air is sufficient.





1, Before use, check the unit to see if there is some damage during the transportation, of if the joint connection is loose. If everything be ok, then start to use.

2, When installing, please pay attention to the direction of air flow and keep the unit upright

3, When the inlet and outlet are in reduced connection, the airflow rate will be reduced approx by 10%. If with higher rate of precision, the airflow rate will be reduced approx by 7%

4, For units with bowl guards, make sure to fixed them before use

5, When use the regulator or filter and lubricator, firstly, we need to adjust the hand wheel to the zero position.

Fix the pressure gauge and plugs on the right positions and ensure they will not leakage

(positions of the pressure gauge and plug can be exchanged) then compressed air in and adjust the air to a proper pressure

6, When using the lubricator, we need to adjust the oil valve needle to the zero positon and add oil to the oil level line first. Then adjust to a proper position when compressed air in. Pay attention to the brand and grade of the lubricating oil. Never use spindle oil and lubricating oil containing lower ketone or aromatic hydrocabon.

7, When using metal tubles for connection, remember to remove the metal grains, dusts and oil stains in the tubes

8, Please attention whether the working condition meet the technical details of the units.(Such as the working pressure, working temperature)

9, Please change the filter element when filter's function not goes well

10, When remove the units from the system, pls pay attention to protect the units by the dust plug on the threads



Parameter:

Spec MINI MIDI MAXI
Working medium Compressed air
Structure
Installation Way Pipeline Installation or Bracket Installation
Installation position 90° +-5°
Port Size G1/8 G1/4 G3/8 G3/8 G1/2 G3/4 G3/4 G1
Standard flow rate OFR...(A) 700 1000 1200 2000 2600 2600 7000 8000
Standard flow rate OFR...-7-(A) 800 1300 1500 2500 2800 2800 8500 8700
Standard flow rate OFR...-5M-(A) 600 850 1050 1700 1800 2100 6500 7200
Input Voltage Manual water drain 1-16bar
Input Voltage Auto water drain 1.5-12bar
Voltage 0.5-12bar/0.5-7bar
Mini foggy flow 31/min 61/min 101/min
Filter precision 40um/5um
Max 22ml 43ml 80ml
Temperature range 0-60℃



Interl Structure:

Air Filter Regulator Lubricator FRL Pneumatic System With Zinc Die-Casting Housing 0

 No. Part Name Material No. Part Name Material
1 body aluminum die casting 6 Nut Aluminium
2 connecting board aluminum die casting 7 Frame polycarbonate
3 filter cup polycarbonate 8 Diaphragm NBR
4 Protection cover aluminium 8 Seal NBR
5 hand Polyacetal



Outer dimensions:

Air Filter Regulator Lubricator FRL Pneumatic System With Zinc Die-Casting Housing 1



Standard flow and output pressure:

Air Filter Regulator Lubricator FRL Pneumatic System With Zinc Die-Casting Housing 2



We also have other kinds of R.F.L, weclome your any question, we will reply at once.
