Product Features of 2L series Steam Solenoid Valve:

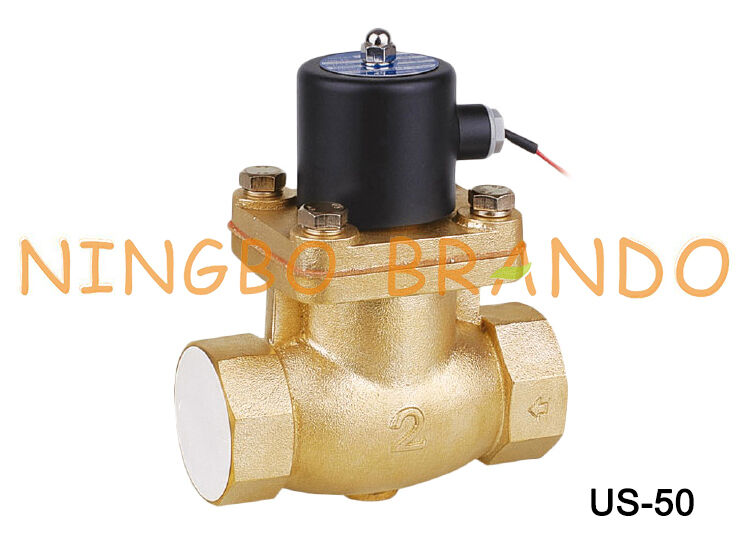

The UNI-D US-50 Solenoid Valve is a 2-inch, two-way, pilot-operated piston solenoid valve designed primarily for steam, hot water, and heavy oil applications.
Key Specifications
1. Working Medium: Hot Water, Steam, etc 2. Working Pressure Range: 0.1 to 1.5 MPa 3. Seal Material: PTFE 4. Body Material: Brass, Stainless Steel 5. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' 6. Orifice Size: 17mm, 22mm, 30mm, 50mm 7. Operation: Piston Pilot Operated
8. Function: 2 Way Normally Closed 9. Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of 2L series Steam Solenoid Valve:
2L Series Model
2L-10
2L-15
2L-20
2L-25
2L-35
2L-40
2L-50
US Series Model
US-10
US-15
US-20
US-25
US-35
US-40
US-50
Orifice Size
17
17
17
22
30
30
50
Port Size
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Medium
Hot Water, Steam
Action
Piston Pilot Operated
Function
2 Way Normally Closed
Body Material
Brass, Stainless Steel
Seal Material
PTFE
Pressure
Range
0.1 to 1.5 MPa
Temp. Range
-20 to +185℃
Coil Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Dimension of 2L series Steam Solenoid Valve:
US Series
2L Series
A
B
C
Port Size
US-10
2L-10
82
42
146
3/8''
US-15
2L-15
1/2''
US-20
2L-20
3/4''
US-25
2L-25
90
54
162
1''
US-35
2L-35
110
75
185
1 1/4''
US-40
2L-40
1 1/2''
US-50
2L-50
120
77
195
2''
