| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 321H35 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 100000 pcs per month |
| Working Medium: | Water, Air, Gas | Port Size: | 1/2'' |
|---|---|---|---|
| Orifice Size: | 15mm | Function: | 2 Way Normally Closed |
| Operation: | Diaphragm Pilot Operated | Body Material: | Brass |
| Pressure Range: | 1.5 To 50 Bar | Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz) |
| High Light: | Parker High Pressure Solenoid Valve,Parker Solenoid Valve 1/2'',321H35 Parker Solenoid Valve |
||

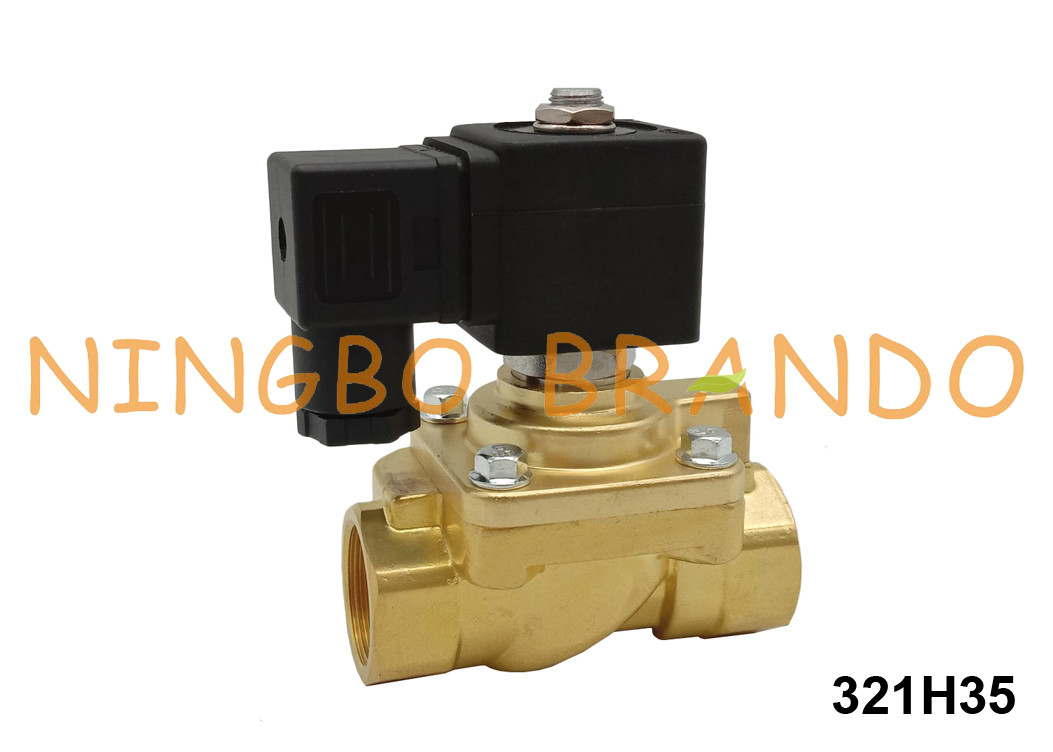

1/2'' 321H35 Parker Type High Pressure Brass Solenoid Valve 40 Bar 24V 220V
Product Features:
1. Model No: 321H35, 321H36 (Normally Closed); 322H35, 322H36 (Normally Open)
2. Port Size: 1/2'', 3/4''
3. Orifice Size: 15mm
4. Working Medium: Air, Water, Gas, etc
5. Working Pressure: 1.5 to 50 bar
6. Body Material: Brass
7. Operation: Diaphragm Pilot Operated
8. Function: 2 Way Normally Closed, 2 Way Normally Open
9. Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
10. Application examples: bottle blowing machines, laser cutting machines, air compressors, etc
Video of 321H35, 321H36:
Main Dimension:
|
Model No
|
A
|
B
|
C
|
D
|
L
|
H
|
J
|
K
|
M
|
|
321H35
|
1/2''
|
φ15
|
27
|
15
|
75
|
101
|
72
|
19
|
53
|
|
321H36
|
3/4''
|
φ19
|
32
|
15
|
82
|
107
|
72
|
19
|
53
|
Technical Data:
BRANDO Solenoid Valve Factory Production Video:
More High Pressure Solenoid Valves for you to choose:
| Brass Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 50 bar |
|
|
|
|
| MAX 50 bar | MAX 70 bar | MAX 120 bar | MAX 200 bar |
| Stainless Steel Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 100 bar |
|
|
|
|
| MAX 120 bar | MAX 160 bar | MAX 200 bar | MAX 300 bar |
