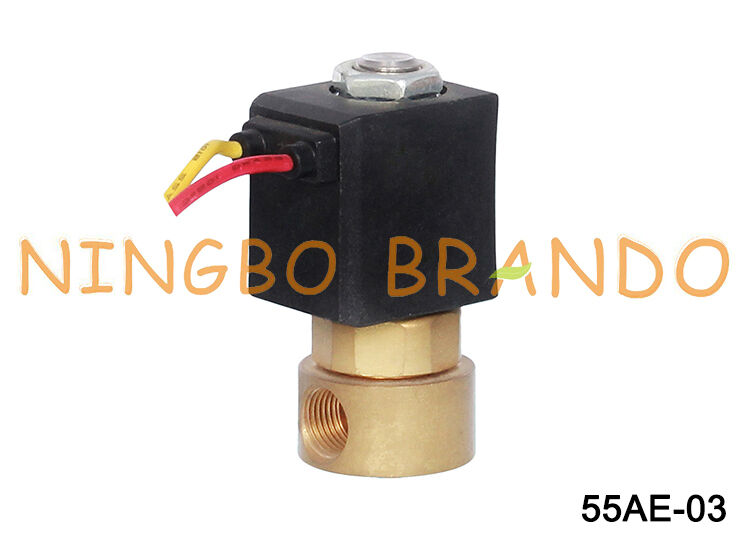

1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V

1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V

  • 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V
1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V
Product Details:
Place of Origin: CHINA
Brand Name: BRANDO
Certification: None
Model Number: 55AE-03
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Inner Box,Carton,Pallet
Delivery Time: Negotiation
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1/8'' Orifice Size: 2.5mm
Seal Material: FKM Working Pressure Range: 0 To 10 Bar
Body Material: Brass Function: 2 Way Normally Closed
Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC Medium: Water, Air, Oil, Hot Water, Steam, Etc
Highlight:

Direct Action Brass Solenoid Valve

,

FKM Solenoid Valve

,

1/8'' Direct Action Solenoid Valve

1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V


Product Feature of Brass Solenoid Valve:

1. Port Size: 1/8''
2. Orifice Size: 2.5mm
3. Body Material: Brass
4. Seal Material; FKM
5. Working Medium; Water, Air, Oil, Steam, etc
6. Working Medium Temperature Range: FKM: -30 ℃ to +150℃
7. Working Pressure Range: 0 to 10 Bar
8. Voltages: DC: 12V, 24V; AC: 24V, 110V, 120V, 220V, 230V (50/60Hz)


Dimension and Data of Brass Solenoid Valve:

1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 0

Working Medium
Water, Air, Oil, Hot Water, Steam, etc
Working Temperature
FKM: -30 to +150℃
Working Pressure
0 to 10 Bar
Port Size
1/8''
Orifice Size
2.5mm
Function
2 Way Normally Closed
Operation
Direct Acting
Voltage
DC: 12VDC, 24VDC
AC: 24VAC, 110VAC, 120VAC, 220VAC, 230VAC (50/60Hz)
Tolerance
±10%
Material
Body: Brass or Stainless Steel
Seal: FKM
Armature Tube: Stainless Steel 304
Plunger: Stainless Steel 430F
Stop: Stainless Steel 430F
Spring: Stainless Steel 304
Shading ring: Stainless Steel 304


Brando Factory Production of Solenoid Valves:


More Coffee Machine Solenoid Valves for you to choose:


Brass Solenoid Valve
1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 1 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 2 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 3 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 4
1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 5 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 6 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 7 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 8


Plastic Solenoid Valve
1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 9 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 10 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 11 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 12
1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 13 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 14 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 15 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 16


Manifold Solenoid Valve
1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 17 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 18 1/8'' 2 Way Normally Closed Direct Acting Brass Solenoid Valve FKM Seal 24V 220V 19


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
