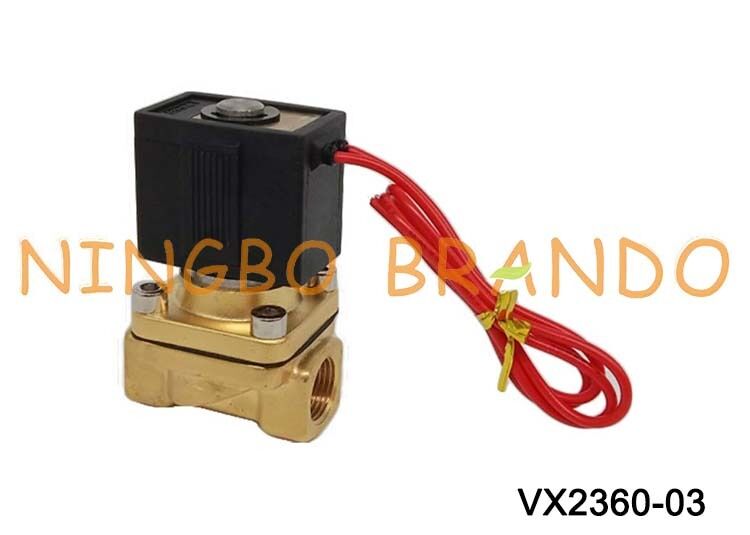

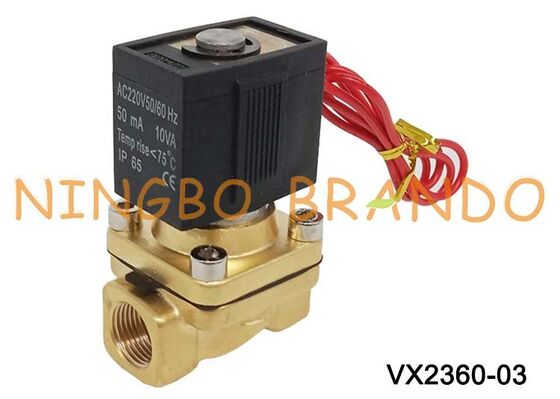

Name: SMC Type VX2360-03 3/8'' Brass Solenoid Valve AC220V AC110V DC24V
Brand: Ningbo Brando Hardware Co., Ltd
SKU: VX2360-03
Price: 51.00 USD
Availability: InStock

Home Products Brass Solenoid Valve

SMC Type VX2360-03 3/8'' Brass Solenoid Valve AC220V AC110V DC24V

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	VX2360-03

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	3/8''	Orifice Size:	13mm
Operation:	Direct Lifting Diaphragm	Pressure Range:	0 To 1 MPa
Body Material:	Brass	Voltage:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Medium Temperature:	NBR: -5 To +80℃, EPDM: -5 To +120℃, FKM: -10 To +150℃	Seal Material:	NBR, EPDM, FKM
Highlight:	SMC VX2360-03 Solenoid Valve , SMC Brass Solenoid Valve 3/8'' , SMC Solenoid Valve VX2360-03 3/8''

SMC Type VX2360-03 3/8'' Brass Solenoid Valve AC220V AC110V DC24V

Product Features:

1. Working Media: Air, Water, Gas, Liquid, Steam, etc
2. Working Pressure: 0 to 10 bar
3. Medium Temperature: NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -10 to +150℃
4. Port Size: 3/8'', 1/2''
5. Orifice Size: 10mm, 13mm
6. Body Material: Brass
7. Seal Material: NBR, EPDM, FKM
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Technical Data:

BRANDO Model	VX2260-03	VX2360-03	VX2360-04
Ref No	VX2120-10	VX2130-10	VX2130-15
Orifice Size	10mm	13mm	13mm
Port Size	3/8''	3/8''	1/2''
Medium	Water, Air, Gas, Liquid, Steam, etc
Operation	Direct Acting
Function	2 Way Normally Closed
Body Material	Brass
Seal Material	NBR, EPDM, FKM
Medium Temperature	NBR: -5 to +80℃ EPDM: -5 to +120℃ FKM: -10 to +150℃
Working Pressure	0 to 10 bar
Voltage	12VDC, 24VDC, 24VAC, 110VAC, 220VAC, other voltages can be customzied

Main Dimension:

BRANDO Model	Port	A	B	C
VX2260-03 (VX2120-10)	3/8''	40	50	80
VX2360-03 (VX2130-10)	3/8''	40	50	80
VX2360-04 (VX2130-15)	1/2''	48	66	110

Our Production:

SMC Type VX2360-03 3/8'' Brass Solenoid Valve AC220V AC110V DC24V 1
