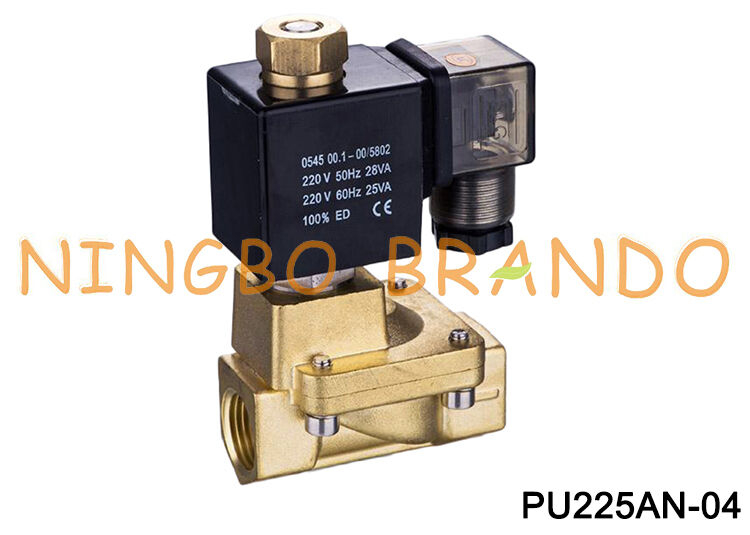

Name: 1/2 Inch Normally Open Brass Solenoid Valve NO PU225A-04
Brand: Ningbo Brando Hardware Co., Ltd
SKU: PU225A-04
Price: 51.00 USD
Availability: InStock

Home Products Brass Solenoid Valve

1/2 Inch Normally Open Brass Solenoid Valve NO PU225A-04

Product Details:

Place of Origin:	CHINA
Brand Name:	BRANDO
Certification:	None
Model Number:	PU225A-04

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner Box,Carton,Pallet
Delivery Time:	Negotiation
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	1/2''	Orifice Size:	13mm
Working Pressure Range:	0.05 To 1 MPa	Function:	2 Way Normally Closed
Body Material:	Brass	Diaphragm Material:	NBR, FKM, EPDM
Voltage:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC	Operation:	Diaphragm Pilot Operated
Highlight:	SHAKO PU225AN-04 , SHAKO solenoid valve PU225AN-04 , 2/2 way normally open PU225AN-04

1/2 Inch Normally Open Brass Solenoid Valve NO PU225A-04

The NOPU225 (or PU225AN) is a 2/2 way normally open valve will stay open until electrical power is applied, at which point the armature covers the pilot hole prevent media above the diaphragm venting downstream and the inlet pressure presses the diaphragm back into the closed position and the valve is fully closed.

Ordering Code of PU225A series Solenoid Valve:

1/2 Inch Normally Open Brass Solenoid Valve NO PU225A-04 0

Main Dimension of PU225A series Solenoid Valve:

1/2 Inch Normally Open Brass Solenoid Valve NO PU225A-04 1

PU225A Series	A	B	C	R
PU225A-03	66.5	106.5	48	3/8''
PU225A-04	66.5	106.5	48	1/2''
PU225A-06	96	126	70	3/4''
PU225A-08	96	126	70	1''
PU225A-12	131	145.5	96	1 1/4''
PU225A-14	131	145.5	96	1 1/2''
PU225A-20	160	160	112	2''

Technical Data of PU225A series Solenoid Valve:

Model	PU225A-03	PU225A-04	PU225A-06	PU225A-08	PU225A-12	PU225A-14	PU225A-20
Model	PU225AN-03	PU225AN-04	PU225AN-06	PU225AN-08	PU225AN-12	PU225AN-14	PU225AN-20
Orifice Size	13mm		25mm		38mm		50mm
Port Size	3/8''	1/2''	3/4''	1'	1 1/4''	1 1/4''	2''
Medium	Water, Light Oil, Compressed Air
Action	Diaphragm Pilot Operated
NC/NO	2 Way, Normally Closed, Normally Open
Body Material	Brass
Seal Material	NBR (Standard); EPDM, FKM, Si (Optional)
Pressure Range	0.05 to 1 MPa
Temperature Range	-5 to +80℃ (NBR), -5 to +150℃ (EPDM, FKM)
Voltages	24VDC, 110VAC, 220VAC, other voltage is optional

Brando Solenoid Valve Factory Production Video:

More Shako Type Solenoid Valves for you to choose:


PU220A Series	PU225A Series

SPU225A Series	PU225S Series

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
