PU225A-08 SHAKO Type 1'' Water Air Brass Solenoid Valve 24VDC 110VAC 220VAC

PU225A-08 SHAKO Type 1'' Water Air Brass Solenoid Valve 24VDC 110VAC 220VAC

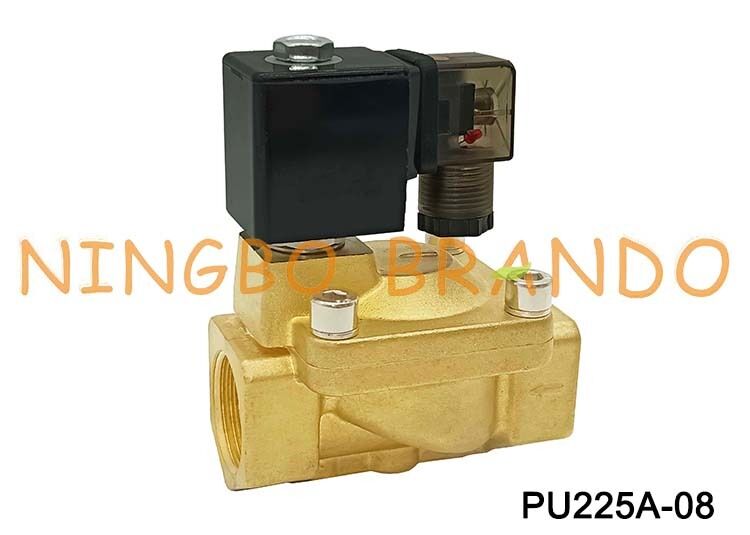

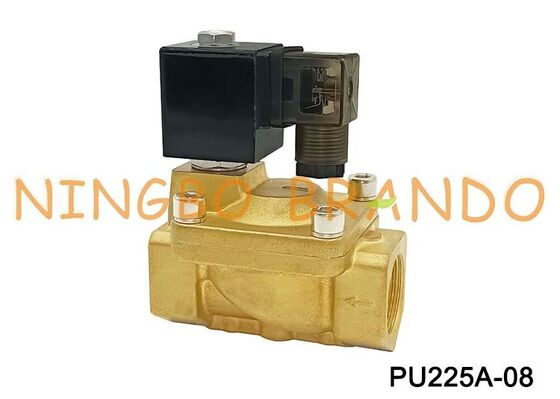

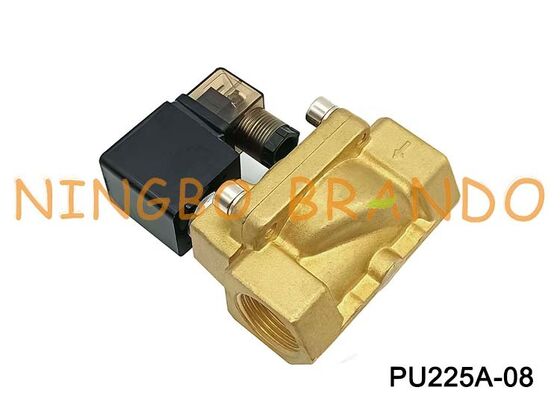

This is PU225A-08 solenoid valve, 1'' port, 25mm orifice, 0.5 to 10 bar, diaphragm pilot operated, 2 way normally closed, brass body, NBR standard diaphragm, can be customized as EPDM or FKM diaphragm to suit different working mediums, various voltages for your choice, such as 12VDC, 24VDC, 24VAC, 110VAC and 220VAC, etc. It is used for a wide arrange of industrial applications to control fluids.

Product Features:

1. Working Medium: Water, Air, Gas, Liquid, Light Oil, etc
2. Working Pressure: 0.5 to 10 bar
3. Medium Temperature: NBR (-5 to +80ºC), EPDM (-5 to +120ºC), FKM (-10 to +150ºC)
4. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2''
5. Orifice Size: 13mm, 25mm, 38mm, 50mm
6. Body Material: Brass
7. Diaphragm Material: NBR, EPDM, FKM
8. Operation: Diaphragm Pilot Operated
9. Function: 2 Way Normally Closed
10. Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data:

Main Dimension:

Our Production:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
