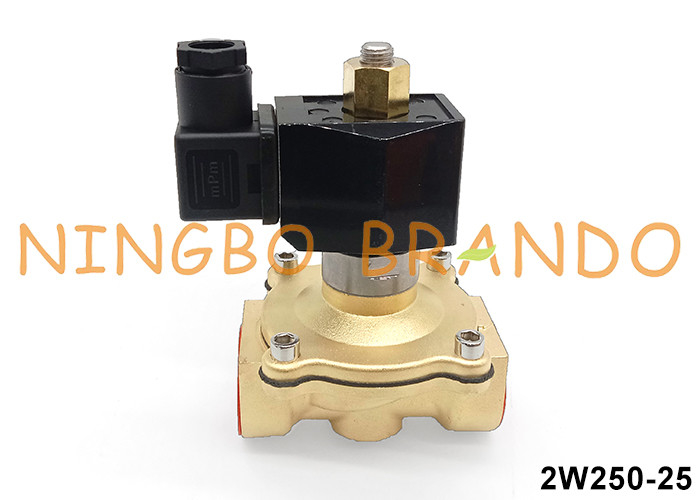

Name: 2W250-25-NO 1'' 2 Way Normally Open Solenoid Valve 24VDC 220VAC
Brand: Brando
SKU: 2W250-25-NO
Rating: 4.8 (138 reviews)

Home Products Brass Solenoid Valve

2W250-25-NO 1'' 2 Way Normally Open Solenoid Valve 24VDC 220VAC

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	2W250-25-NO

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner boxes, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	1''	Orifice Size:	25mm
Operation Mode:	2 Way, Normally Open	Action:	Direct Lifting Diaphragm
Working Fluids:	Air, Water, Oil, Gas	Body Material:	Brass
Seal Material:	NBR	Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Pressure Range:	0 To 1 MPa	Temperature Range:	-5 To +80 ℃
High Light:	1'' Normally Open Solenoid Valve , 24VDC Normally Open Solenoid Valve , 2W250-25 Normally Open

2W250-25-NO 1'' 2 Way Normally Open Solenoid Valve 24VDC 220VAC

2-way, normally open, solenoid valve has 2 pipe connections, an inlet called the cavity port and an outlet called the stop port.In its natural de-energized state the stop port is open and media flows into the cavity port and out the stop port.When the valve is energized the plunger seals the orifice stopping flow through the valve.Turn off the power. The orifice opens and flow through the valve resumes.

Main Dimension of Solenoid Valve:

2W250-25-NO 1'' 2 Way Normally Open Solenoid Valve 24VDC 220VAC 0

Model	Port Size	A	B	C
2W160-10	3/8''	66	56	103
2W160-10-NO				125
2W160-15	1/2''	66	56	103
2W160-15-NO				125
2W200-20	3/4''	73	56	110
2W200-20-NO				132
2W250-25	1''	98	73	117
2W250-25-NO				139
2W350-35	1 1/4''	118	93	160
2W350-35-NO				180
2W400-40	1 1/2''	118	93	160
2W400-40-NO				180
2W500-50	2''	156	124	188
2W500-50-NO				209

Technical Data of Solenoid Valve:

Model	2W160-10	2W160-15	2W200-20	2W250-25	2W350-35	2W400-40	2W500-50
Model	2W160-10-NO	2W160-15-NO	2W200-20-NO	2W250-25-NO	2W350-35-NO	2W400-40-NO	2W500-50-NO
Port Size	3/8''	1/2''	3/4''	1''	1 1/4''	1 1/2''	2''
Orifice Size	16		20	25	35	40	50
Cv Value	4.8		4.8	12	24	29	48
Medium	Air, Water, Oil, Gas
Action	Direct Lifting Diaphragm
Function	2 Way, Normally Closed (NC), Normally Open (NO)
Viscocity	20 cst Below
Pressure	Air: (1 to 1MPa), Water (0 to 0.7MPa), Oil (0 to 0.9MPa), Normally Open (0 to 0.8MPa)
Temperature	NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -5 to +150℃, Silicone: -15 to +150℃
Body Material	Brass
Voltages	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Coil Type	Waterproof Coil, Round Coil, Square Coil, etc.
