| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 5404 |
| Minimum Order Quantity: | 5 pc |
|---|---|
| Price: | $27 to $ 40 per pc |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000 pcs per month |
| Port Size: | 1/4'', 3/8'', 1/2'' | Orifice Size: | 12mm |
|---|---|---|---|
| Function: | 3 Way, Normally Opened | Operation: | Servo-Assisted Piston |
| Body Material: | Brass | Seal Material: | PTFE + FKM |
| Pressure Range: | 1 To 50 Bar | Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | 5404 B Brass Solenoid Valve,40 bar Brass Solenoid Valve,5404 B High Pressure Solenoid Valve |
||

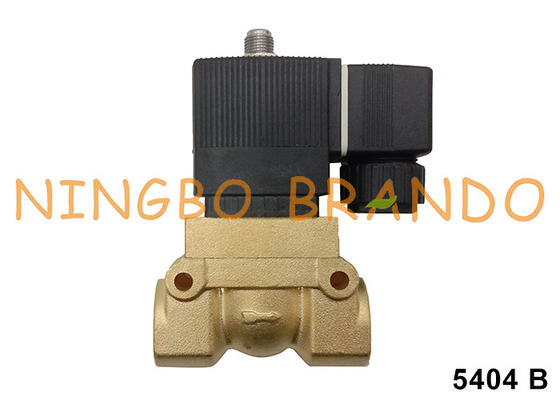

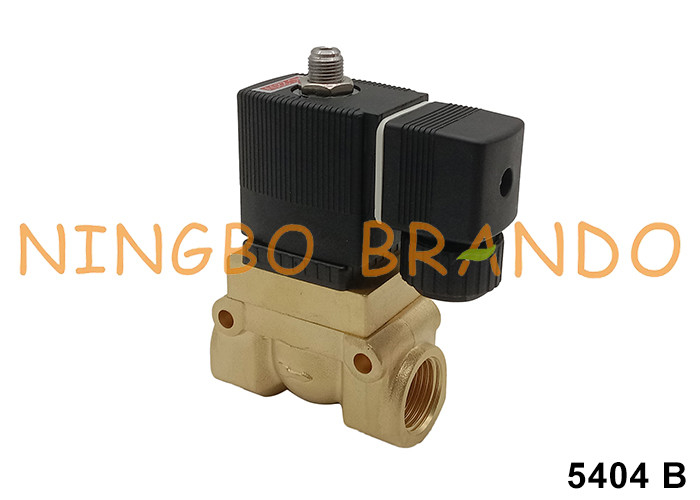

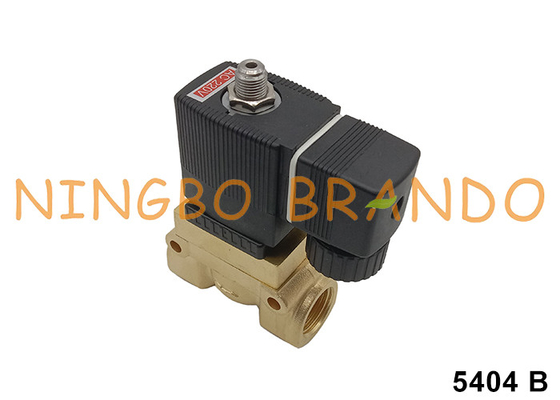

5404 B 12.0 40 bar Brass Solenoid Valve For Air Compressor 1/2''
Technical Data of 5404 Solenoid Valve:
| Model No |
Port Size (inch) |
Orifice Size (mm) |
Kv Value (m³/h) |
Pressure Range (bar) |
Body Material | Seal Material | Coil Voltage | Dimension | ||
| A | F | K | ||||||||
| 2 Way Normally Closed, Servo-Assisted Piston | ||||||||||
| 5404 | 1/4'' | 13 | 1.7 | 1 to 50 bar | Brass | PTFE+FKM |
12VDC 24VDC 24VAC 110VAC 220VAC |
72 | 32 | 97/106 |
| 3/8'' | 13 | 1.7 | 72 | 32 | 97/106 | |||||
| 1/2'' | 13 | 1.7 | 72 | 32 | 97/106 | |||||
| 3/4'' | 20 | 7 | 1 to 40 bar | 92 | 60 | 128 | ||||
| 3/4'' | 25 | 11 | 92 | 60 | 128 | |||||
| 1'' | 25 | 11 | 92 | 60 | 128 | |||||
| 2 Way Normally Open, Servo-Assisted Piston | ||||||||||
| 5404-NO | 1/4'' | 13 | 1.7 | 1 to 40 bar | Brass | PTFE+FKM |
12VDC 24VDC 24VAC 110VAC 220VAC |
72 | 32 | 103 |
| 3/8'' | 13 | 1.7 | 72 | 32 | 103 | |||||
| 1/2'' | 13 | 1.7 | 72 | 32 | 103 | |||||
