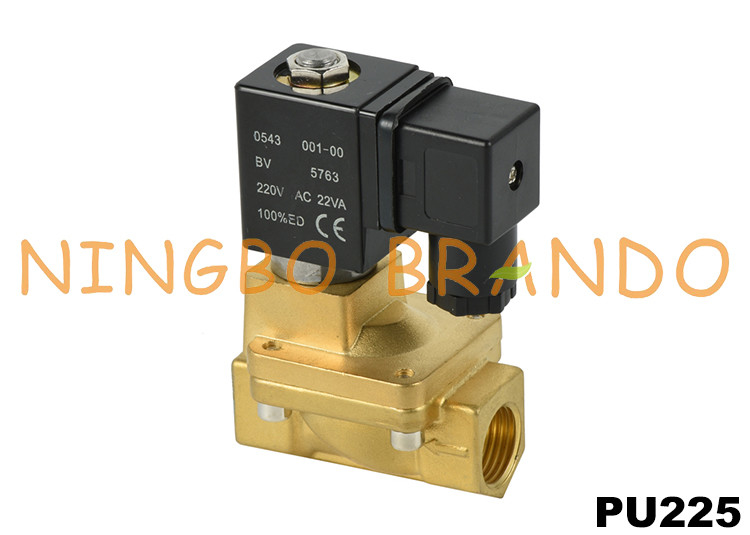

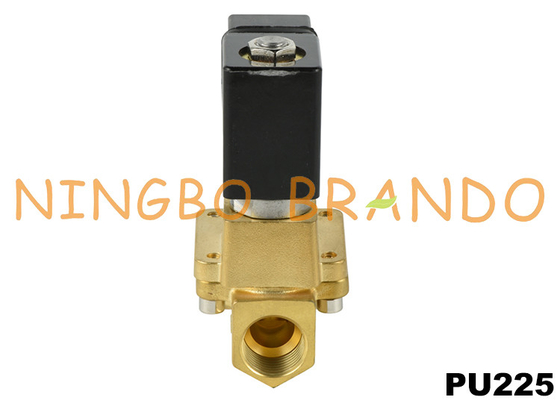

PU225S-04 1/2'' Brass Solenoid Valve For Steam 24V DC 110V 220V AC

PU225S-04 1/2'' Brass Solenoid Valve For Steam 24V DC 110V 220V AC

PU225S Piston Brass Pilot / Servo 185°C Steam Rated 2/2 way normally closed solenoid valve features:

1. Port sizes: 3/8" PU225S-03, 1/2" PU225S-04, 3/4" PU225S-06, 1" PU225S-08.

2. Construction: Body die cast Brass SS41, stainless steel internals one piece core tube, AISI430F armature and AISI302 springs that extend valve life.

3. Seal options: PTFE piston seals, PTFE armature seals Graphite impregnated PTFE for longer life.

4. Pressure Range: 0.5 to 10 Bar differential, Max working 10 Bar

5. Voltages: 12vDC, 24vDC, 48vDC, 110vDC, 220vDC or 12vAC, 24vAC, 48vAC, 110vAC, 220vAC, 230vAC, 240vAC, 380vAC and 415vAC

6. PU225S solenoid valves are all 15 Bar pressure, function and leak tested prior to despatch.

7. Includes PU225S-03, PU225S-04, PU225S-06, PU225S-08.

Main Dimension of PU225S series Steam Solenoid Valve:

Technical Data of PU225S series Steam Solenoid Valve:

Ordering Code of PU225S series Steam Solenoid Valve:

Brando Solenoid Valve Factory Production Video:

More Shako Type Solenoid Valves for you to choose:

PU220A Series	PU225A Series
SPU225A Series	PU225S Series
