| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | 6014 FLNSCH |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | $27 to $ 40 per pc |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, Western Union,Paypal |
| Supply Ability: | 50000 pcs per month |
| Orifice Size: | 1.5mm, 2.0mm | Body Material: | Brass |
|---|---|---|---|
| Seal Material: | NBR, EPDM, FKM | Function: | 3 Way Normally Closed |
| Operation: | Plunger Direct Acting | Voltage: | 12VDC, 24VDC, 110VAC, 220VAC |
| High Light: | Sub Base Brass Solenoid Valve,6014 C FLNSCH Brass Solenoid Valve,6014 C FLNSCH |
||

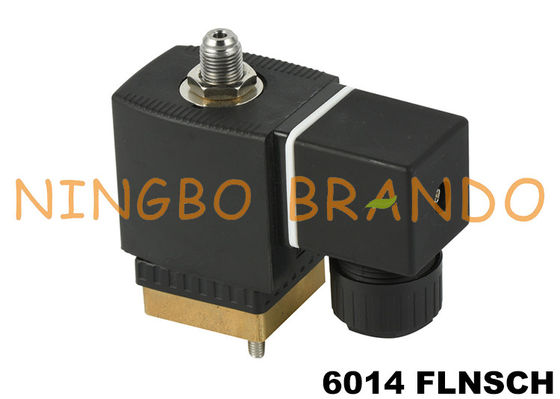

Sub Base 3 Way Brass Solenoid Valve 6014 C FLNSCH 24VDC 220VAC
6014 is a direct-acting plunger solenoid valve. Various seal material combinations are available depending on the application. A specific flange design (SFB) enables space-saving arrangement of valves on a manifold. The coils are moulded with polyamide or with chemically resistant epoxy.
Technical Data of 6014 Solenoid Valve:
|
Model
|
Port Size
(inch)
|
Orifice Size
(mm)
|
Kv
(m³ /h)
|
Pressure Range (bar)
|
Medium Temperature (℃)
|
Body Material
|
Voltage
|
|
3 Way Normally Closed (6014 C), 3 Way Normally Open (6014 D)
|
|||||||
|
6014
|
1/8''
|
1.5
|
0.07
|
0 to 16
|
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150
|
Brass
Stainless Steel
|
12VDC
24VDC
24VAC
110VAC
220VAC
|
|
2
|
0.11
|
0 to 10
|
|||||
|
2.5
|
0.16
|
0 to 6
|
|||||
|
1/4''
|
1.5
|
0.07
|
0 to 16
|
||||
|
2
|
0.11
|
0 to 10
|
|||||
|
2.5
|
0.16
|
0 to 6
|
|||||
|

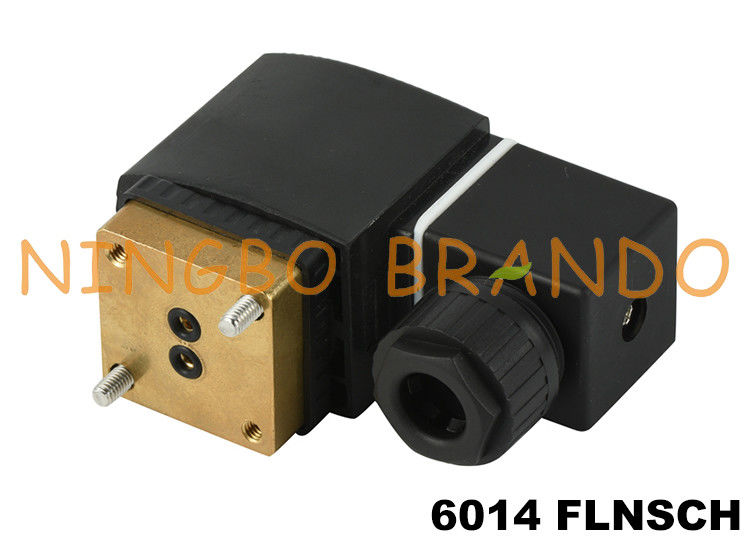

Sub-base
(SFB)
|
1.5
|
0.07
|
0 to 16
|
||||
|
2
|
0.11
|
0 to 10
|
|||||
BRANDO Solenoid Valve Production Video:
