| Place of Origin: | China, Ningbo |
| Brand Name: | BRANDO |
| Certification: | CE, ISO |
| Model Number: | G2 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Box, Carton, Pallet |
| Delivery Time: | 4 to 7 working days |
| Payment Terms: | T/T, PayPal, Western Union |
| Supply Ability: | 50000 pcs per month |
| Port Size: | 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' | Orifice Size: | 14mm, 25mm, 40mm |
|---|---|---|---|
| Function: | 2 Way, Normally Closed | Operation: | Piston Pilot Operated |
| Body Material: | Brass | Seal Material: | NBR, FKM, PTFE |
| Pressure Range: | 0.5 To 40 Bar | Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Highlight: | 4 MPa High Pressure Solenoid Valve,24V High Pressure Brass Solenoid Valve,220V High Pressure Brass Solenoid Valve |
||

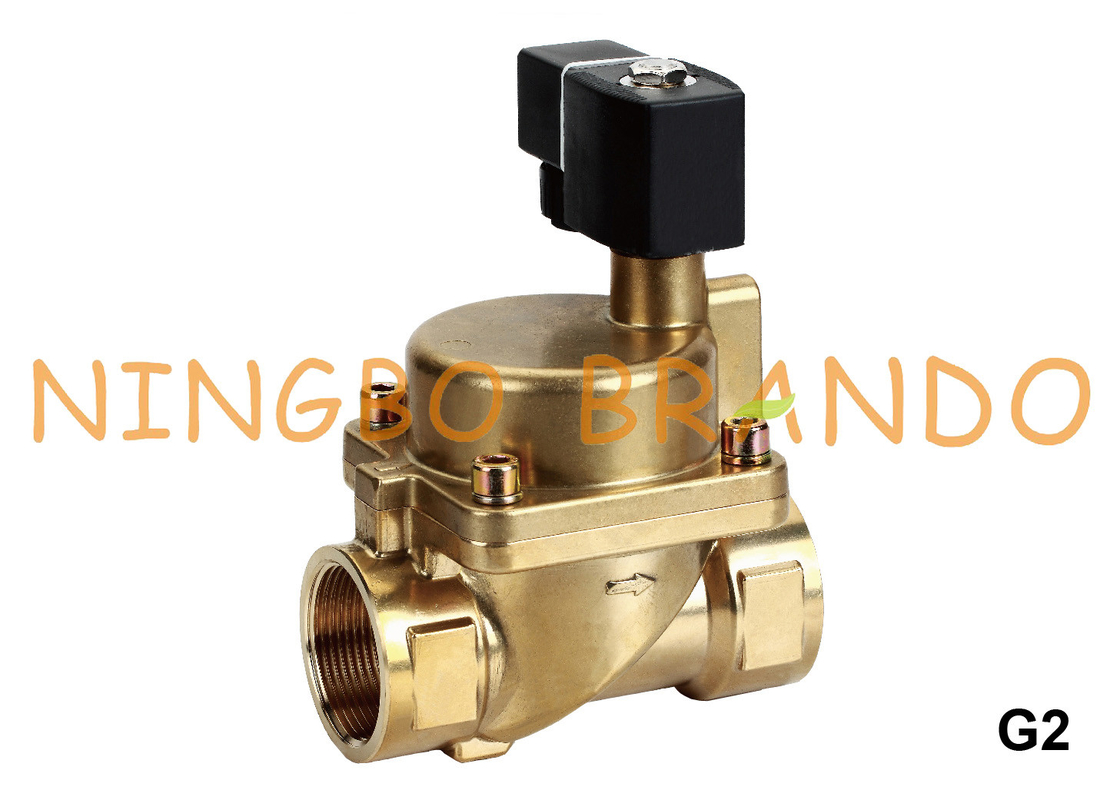

4 MPa High Pressure Brass Solenoid Valve 1/4'' 3/8'' 1/2'' 3/4'' 1'' 2'' 24V 110V 220V
Product Features:
1. Working Medium: Air, Water, Gas, Liquid, etc.
2. Working Pressure Range: 0.5 to 40 bar
3. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
4. Orifice Size: 14mm, 25mm, 40mm
5. Body Material: Brass, Stainless Steel
6. Seal Material: NBR, FKM, PTFE
7. Function: 2 Way Normally Closed
8. Operation: Piston Pilot Operated
9. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Technical Data of Solenoid Valve:
|
Port Size (inch) |
Orifice Size (mm) |
Kv Value (m³/h) |
Pressure Range (bar) |
Body Material | Seal Material | Dimension | ||
| A | F | K | ||||||
| 2 Way Normally Closed, Piston Pilot Operated | ||||||||
| 1/4'' | 14 | 1.5 | 0.5 to 40 |
Brass Stainless Steel |
NBR: -10 to +80℃ EPDM: -30 to +120℃ FKM: -30 to +150℃ |
65 | 41 | 125 |
| 3/8'' | 14 | 3 | 0.5 to 40 | 65 | 41 | 125 | ||
| 1/2'' | 14 | 3.8 | 0.5 to 40 | 65 | 41 | 125 | ||
| 3/4'' | 14 | 4.2 | 0.5 to 40 | 69 | 41 | 131 | ||
| 25 | 9 | 0.5 to 40 | 92 | 60 | 147 | |||
| 1'' | 25 | 11 | 0.5 to 40 | 92 | 60 | 147 | ||
| 1 1/4'' | 40 | 23 | 0.5 to 40 | 125/135 | 92 | 173 | ||
| 1 1/2'' | 40 | 24 | 0.5 to 40 | 125/135 | 92 | 173 | ||
| 2'' | 40 | 28 | 0.5 to 40 | 129 | 92 | 186 | ||
BRANDO Solenoid Valve Production Video:
More High Pressure Solenoid Valves for you to choose:
| Brass Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 50 bar |
|
|
|
|
| MAX 50 bar | MAX 70 bar | MAX 120 bar | MAX 200 bar |
| Stainless Steel Solenoid Valves | |||
|
|
|
|
| MAX 50 bar | MAX 50 bar | MAX 50 bar | MAX 100 bar |
|
|
|
|
| MAX 120 bar | MAX 160 bar | MAX 200 bar | MAX 300 bar |
