| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 55BD-03 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Medium: | Water, Air, Oil, Hot Water, Steam, Etc | Port Size: | Inlet: 1/8'' (G, NPT); Outlet: 7.5mm OD |
|---|---|---|---|
| Orifice Size: | 2.3mm | Seal Material: | FKM |
| Body Material: | Brass | Working Pressure Range: | 0 To 10 Bar |
| Function: | 2 Way Normally Closed | Coil Voltage: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| High Light: | Steam Iron Solenoid Valve,423901709890 Iron Solenoid Valve,ASTORIA Spare Part |
||

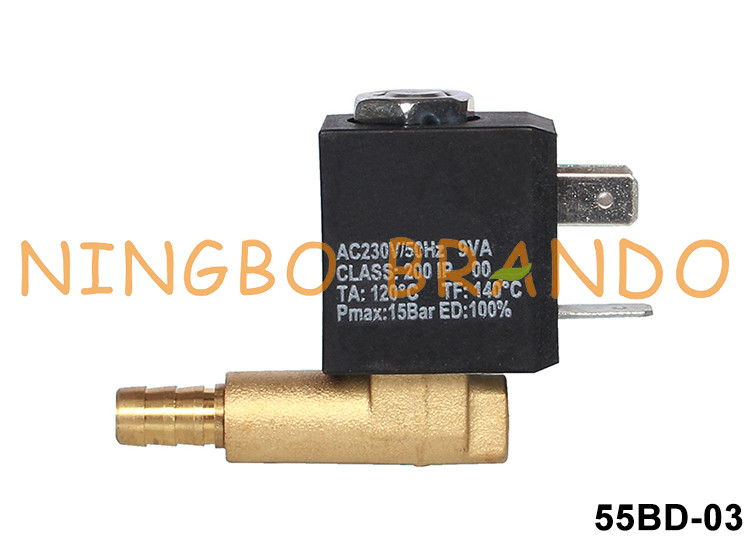

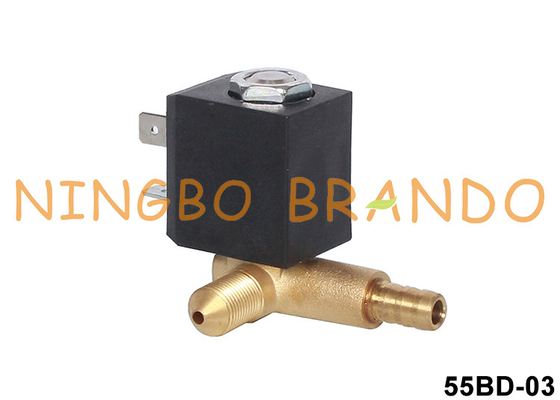

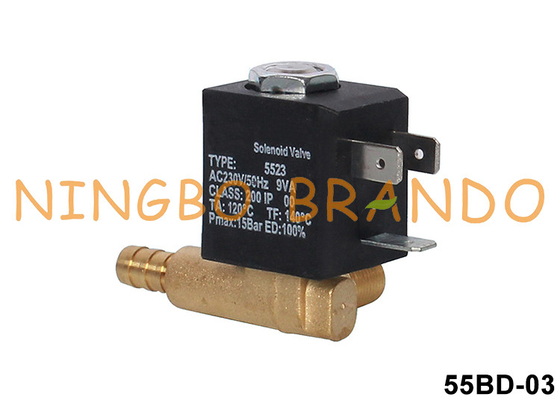

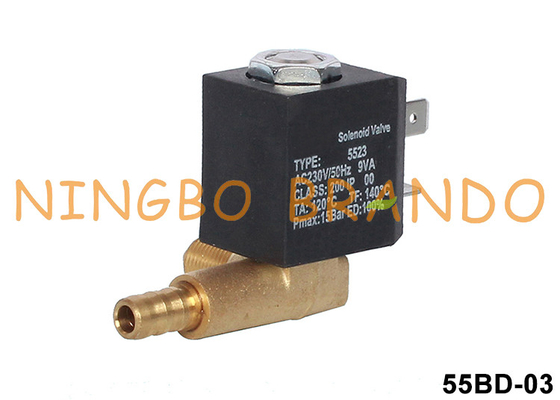

Steam Iron Solenoid Valve 020E 1161B 1159C RC022A 423901709890
Product Feature:
1. Port Size: Inlet: 1/8'' (G, NPT); Outlet: 7.5mm OD
2. Orifice Size: 2.3mm
3. Body Material: Brass
4. Seal Material; FKM
5. Working Medium; Water, Air, Oil, Steam, etc
6. Working Medium Temperature Range: -30 ℃ to +150℃
7. Working Pressure Range: 0 to 10 Bar
8. Voltages: DC: 12V, 24V; AC: 24V, 110V, 120V, 220V, 230V (50/60Hz)
Dimension and Data of Steam Iron Solenoid Valve:
Brando Factory Production of Solenoid Valves:
More Steam Iron Solenoid Valves for you to choose:
|
|
|
|
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
