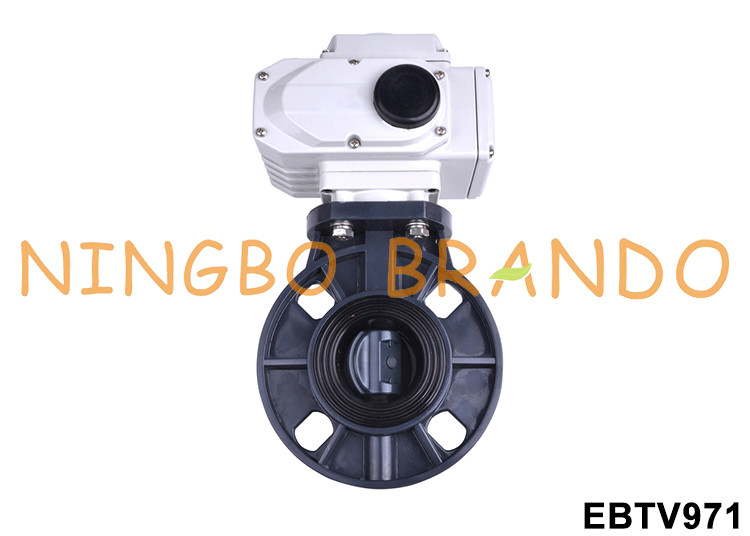

UPVC CPVC PVC Electric Actuator Plastic Butterfly Valve 24V 220V

UPVC CPVC PVC Electric Actuator Plastic Butterfly Valve 24V 220V

  • UPVC CPVC PVC Electric Actuator Plastic Butterfly Valve 24V 220V
UPVC CPVC PVC Electric Actuator Plastic Butterfly Valve 24V 220V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: D971
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Structure: Butterfly Power: Electric
Body Material: UPVC, CPVC Seal Material: Rubber
Working Medium: Neutral Gas, Air Orifice Size: DN50 To DN200
Highlight:

UPVC Electric Actuator Butterfly Valve

,

CPVC Electric Actuator Butterfly Valve

,

Electric Actuator Butterfly Valve

UPVC CPVC PVC Electric Actuator Plastic Butterfly Valve 24V 220V



Electric Actuator Butterfly Valve controls the opening and closing of the butterfly valve through the power signal. It is widely used in textile, power station, petrochemical industry, heating and cooling, pharmaceutical, shipbuilding, metallurgy, light industry, environmental protection and other fields. The product can be used for cutting off and controlling in the pipeline system.



1. According to the connection mode of the butterfly valve, it can be divided into: Wafer type electric butterfly valve, Lug electric butterfly valve, Flange electric butterfly valve and Tri-clamp electric butterfly valve.



2. According to the material of the butterfly valve, it can be divided into: Stainless steel electric butterfly valve, Cast iron electric butterfly valve and Plastic electric butterfly valve.



3. According to the seal material, it can be divided into: Soft sealing electric butterfly valve and Hard sealing electric butterfly valve.



4. According to the structure of the butterfly valve, it can be divided into: Single eccentric electric butterfly valve, Double eccentric electric butterfly valve and Triple eccentric electric butterfly valve.



5. According to the function of the butterfly valve, it can be divided into: Normal pressure electric butterfly valve, High pressure and high-temperature electric butterfly valve, Sanitary electric butterfly valve, Anti-corrosive electric butterfly valve, and Explosion-proof electric butterfly valve.



Technical Data of Electric Butterfly Valve:

Pneumatic Buterfly Valve
Electric Butterfly Valve
Air Pressure: 0.4 to 0.8 MPa
Electric Actuator Power:
380VAC, 220VAC, 110VAC (50/60Hz), 24VDC
Electric Actuator Input: 4-20mA. DC
Control Medium: Neutral Gas, Air
Ambient Temperature: -20 to +60℃
Manufacturing Standard: GB, ISO, ANSI, BS, DIN


Main Dimension of Electric Butterfly Valve:

UPVC CPVC PVC Electric Actuator Plastic Butterfly Valve 24V 220V 0

UPVC CPVC PVC Electric Actuator Plastic Butterfly Valve 24V 220V 1
