Name: Sanitary Tri Clamp Pneumatic Angle Seat Valve Stainless Steel
Brand: Brando
SKU: JZF-Q
Rating: 4.9 (189 reviews)

Home Products Pneumatic Cylinder Valve

Sanitary Tri Clamp Pneumatic Angle Seat Valve Stainless Steel

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	JZF-Q

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner boxes, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	1/2'' To 2''	Orifice Size:	DN15 To DN50
Port Connections:	Tri Clamp	Working Fluids:	Netral And Aggressive Liquid, Gas
Body Material:	Stainless Steel (304, 316)	Seal Material:	PTFE
Working Pressure Range:	0.4 To 0.8 MPa	Max. Working Pressure Range:	1.6 MPa
High Light:	Sanitary Clamp Angle Seat Valve , Tri Clamp Angle Seat Valve , Tri-Clamp Angle Seat Valve

Sanitary Tri Clamp Pneumatic Angle Seat Valve Stainless Steel

An angle seat piston valve is a pneumatically-controlled valve with a piston actuator providing linear actuation to lift a seal off its seat. The seat is set at an angle to provide the maximum possible flow when unseated. Angle seat piston valves are particularly suited to applications where high temperatures and large flow rates are required, such as steam or water.

Pneumatic angle seat valve is a general switch in the automatic control system which is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, pharmacy and other automatic machinery and equipment. It is featured with water hammer protection,noise-free, reliable sealing performance.

Technical Data of Pneumatic Angle Seat Valve:

Medium Temperature	-10 to +180℃
Ambient Temperature	-10 to +60℃
Max. Working Pressure Range	1.6 MPa
Working Medium	Netral and Aggressive Liquid, Gas
Working Pressure	0.4 to 0.8 MPa
Body Material	SS304, SS316
Seal Material	PTFE
Connection Size	1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections	Threaded, Flanged, Welded, Clamp
Nominal Diameter	DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure	Normally Closed, Normally Open

Main Dimension of Pneumatic Angle Seat Valve:

Stainless Steel Body With Plastic Actuator

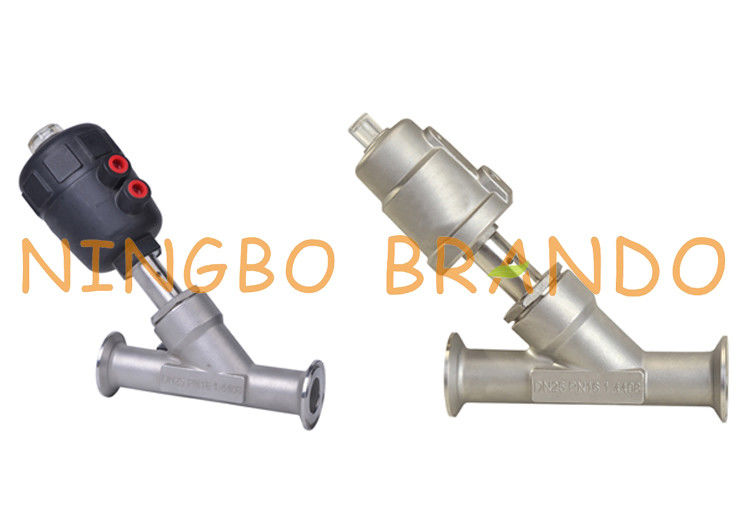

Sanitary Tri-Clamp Angle Seat Valve Pneumatic 1/2'' DN15 PN16 0

Nominal Diameter	Size				Quick Connection Size	Actuator
Nominal Diameter	L	L1	L2	H	D	Actuator
15	190	131.5	66.5	155	50.5	φ50
20	186	131.5	66.5	162	50.5	φ50
25	220	140.5	82.5	186	50.5	φ63
32	225	150.5	82.5	197	50.5	φ63
40	245	180	82.5	206	50.5	φ63
50	274	195	102.5	227	64	φ80

Stainless Steel Body With Stainless Steel Actuator

1'' DN25 Tri-Clamp Air Actuated Angle Seat Valve With Pneumatic Actuator 0

Nominal Diameter	Size				Quick Connection Size	Actuator
Nominal Diameter	L	L1	L2	H	D	Actuator
15	190	131	61.5	158	50.5	φ50
20	193	130.5	61.5	166	50.5	φ50
25	214	140.5	75.5	183	50.5	φ63
32	220	150	75.5	191	50.5	φ63
40	238	180	75.5	196	64	φ63
50	256	195.5	75.5	210	64	φ80
