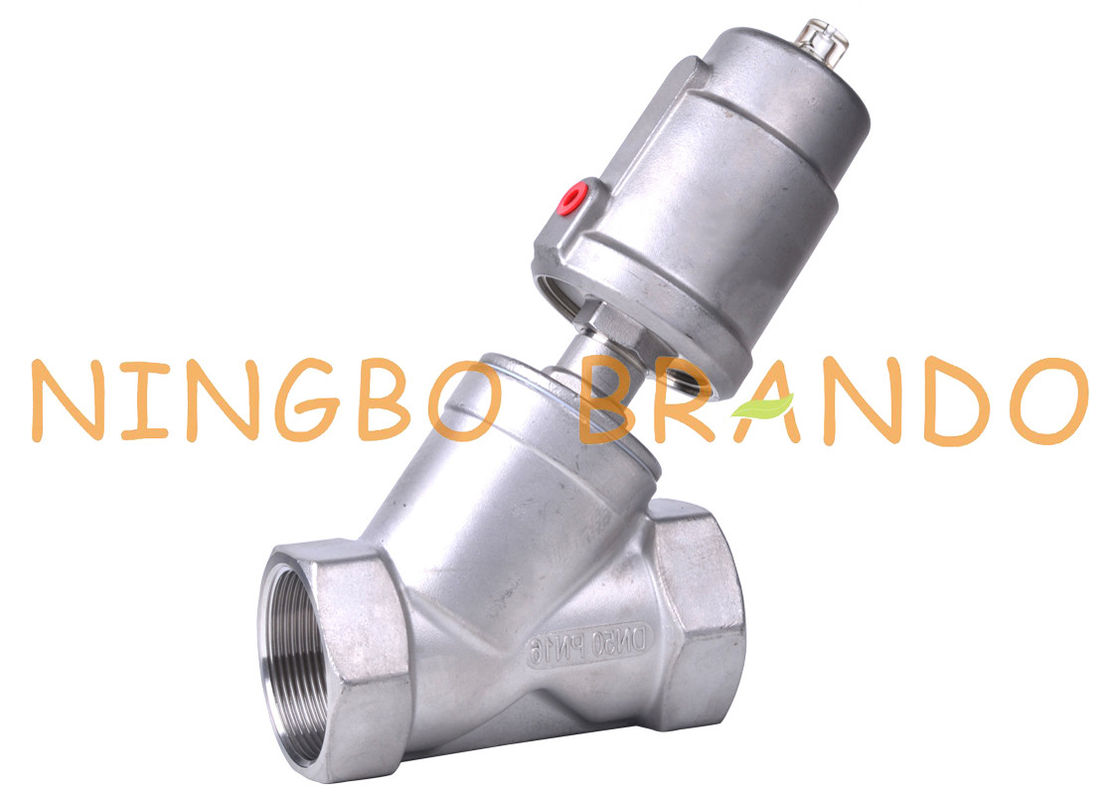

2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head

2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head

  • 2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head
2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: JZF-DN50-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 2'' Port Connections: Threaded
Orifice Size: 50mm Working Fluids: Netral And Aggressive Liquid, Gas
Body Material: SS304, SS316 Seal Material: PTFE
Working Pressure Range: 0.4 To 0.8 MPa Max. Working Pressure Range: 1.6 MPa
Highlight:

Pneumatic Angle Seat Valve 2''

,

Pneumatic Angle Seat Valve DN50

,

Pneumatic Stainless Steel Angle Seat Valve

2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head



Pneumatic angle seat valve is a general switch in the automatic control system which are suitable in demanding applications such as steam, water and aggressive media. They are especially suited for vacuum and fast acting applications that require a long service life. It is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, pharmacy and other automatic machinery and equipment. It is featured with water hammer protection, noise-free, reliable sealing performance.



Main Dimension of Angle Seat Valve:



Stainless Steel Body With Stainless Steel Actuator

                                      1 1/4'' Threaded 2/2 Way Pneumatic Angle Seat Valve Double Acting 0

Nominal Diameter
Actuator
(mm)
D
R
P
G
H
L
L1
T
DN15
50
62
33.5
1/8''
1/2''
126
137
68
13
DN20
50
62
33.5
3/4''
138
144
75
16
DN25
50
62
33.5
1''
148
156
90
16
DN32
63
76
42
1 1/4''
182
188
110
21
DN40
63
76
42
1 1/2''
182
190
116
21
DN50
63
76
42
2''
195
205
136
22
DN65
80
96
52
2 1/2''
280
252
185
30
DN80
100
114
63
3''
320
280
220
33
DN100
100
114
63
4''
350
300
235
35



Technical Data of Angle Seat Valve:

Medium Temperature
-10 to +180℃
Ambient Temperature
-10 to +60℃
Max. Working Pressure Range
1.6 MPa
Working Medium
Netral and Aggressive Liquid, Gas
Working Pressure
0.4 to 0.8 MPa
Body Material
SS304, SS316
Seal Material
PTFE
Connection Size
1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections
Threaded, Flanged, Welded, Clamp
Nominal Diameter
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure
Normally Closed, Normally Open



Brando Factory Valve Production:



More Angle Seat Valves for you to choose:

2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head 1 2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head 2 2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head 3
2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head 4 2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head 5 2'' DN50 PN16 Pneumatic Threaded Angle Seat Valve Stainless Steel Head 6
