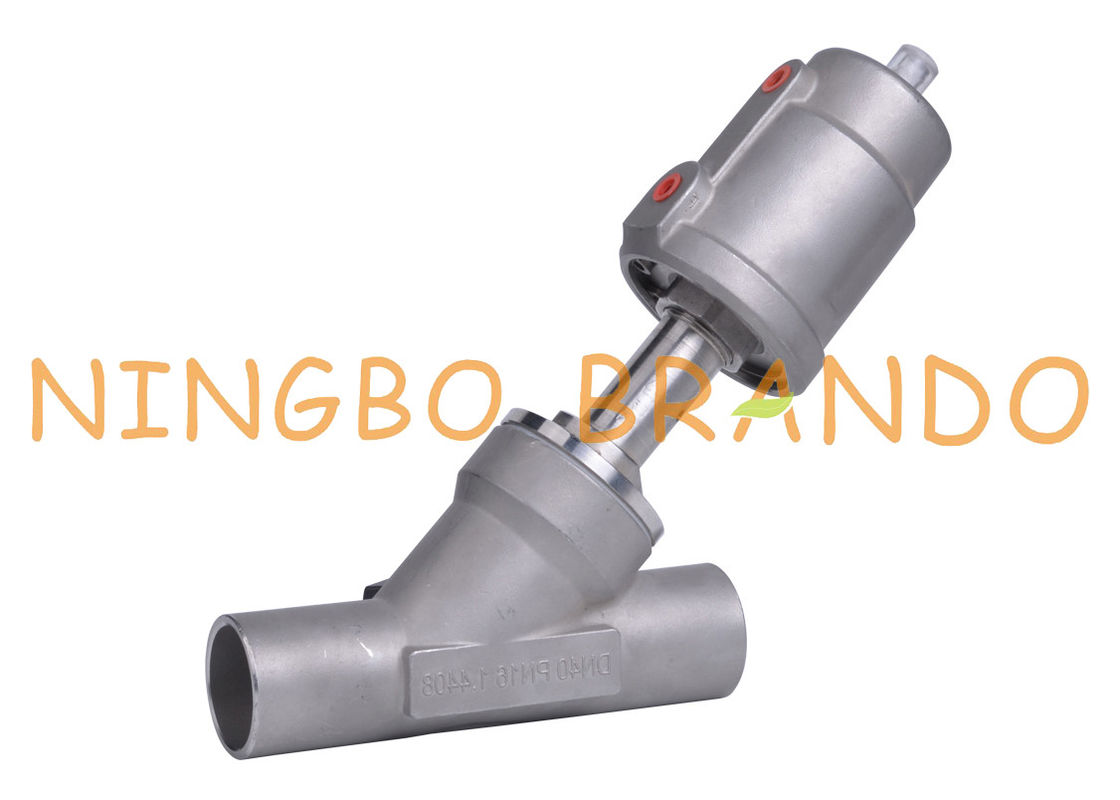

1 1/2'' DN40 PN16 Welded Pneumatic Angle Seat Valve Double Acting

1 1/2'' DN40 PN16 Welded Pneumatic Angle Seat Valve Double Acting

  • 1 1/2'' DN40 PN16 Welded Pneumatic Angle Seat Valve Double Acting
1 1/2'' DN40 PN16 Welded Pneumatic Angle Seat Valve Double Acting
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: JZF-DN40-W-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1 1/2'' Port Connections: Welded
Orifice Size: 40mm Working Fluids: Netral And Aggressive Liquid, Gas
Body Material: SS304, SS316 Seal Material: PTFE
Working Pressure Range: 0.4 To 0.8 MPa Max. Working Pressure Range: 1.6 MPa
High Light:

Welded Pneumatic Angle Seat Valve

,

Pneumatic Angle Seat Valve DN40 PN16

,

Pneumatic Angle Seat Valve 1 1/2''

1 1/2'' DN40 PN16 Welded Pneumatic Angle Seat Valve Double Acting



Angle seat valves are 2/2-way pneumatically actuated piston valves. The piston actuator provides a linear motion to lift the seal off its seat. Because the seat is positioned under an angle, the flow is minimally impeded in the open position, resulting in an excellent flow rate and a low pressure loss. They are used to regulate the flow of liquids, gases, steam, vacuum and even aggressive fluids. They can also operate with high temperatures and high viscosity media, even under zero differential pressures. The robust design makes angle seat valves a popular choice for harsh applications and they have very high cycle lives. Therefore, they are excellent long-life alternatives to ball valves. These valves are also suitable alternatives for solenoid valves, especially with contaminated, viscous media where typical solenoid valves would fail. They may be operated using a single acting or double acting configuration, which has an influence on its pressure rating. They can also be designed as manually operated or electrically operated.



Main Dimension of Angle Seat Valve:



Stainless Steel Body With Stainless Steel Actuator

                                                   1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40 0

Nominal Diameter
Actuator
(mm)
L
L1
L2
B
H
DN15
50
193
131.5
61.5
15.5
160
DN20
50
192
130
61.5
20.5
163
DN25
63
217
141
75.5
26.5
186
DN32
63
222
150.5
75.5
32.5
194
DN40
63
238
180
75.5
40.5
203
DN50
80
255
195
75.5
50
213



Technical Data of Angle Seat Valve:

Medium Temperature
-10 to +180℃
Ambient Temperature
-10 to +60℃
Max. Working Pressure Range
1.6 MPa
Working Medium
Netral and Aggressive Liquid, Gas
Working Pressure
0.4 to 0.8 MPa
Body Material
SS304, SS316
Seal Material
PTFE
Connection Size
1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections
Threaded, Flanged, Welded, Clamp
Nominal Diameter
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure
Normally Closed, Normally Open
