| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | JZF-DN50-F |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 2'' | Port Connections: | Flanged |
|---|---|---|---|
| Orifice Size: | 50mm | Working Fluids: | Netral And Aggressive Liquid, Gas |
| Body Material: | SS304, SS316 | Seal Material: | PTFE |
| Working Pressure Range: | 0.4 To 0.8 MPa | Max. Working Pressure Range: | 1.6 MPa |
| High Light: | Pneumatic Flanged Angle Seat Valve,Pneumatic Angle Seat Valve 2'',Pneumatic Angle Seat Valve DN50 |
||

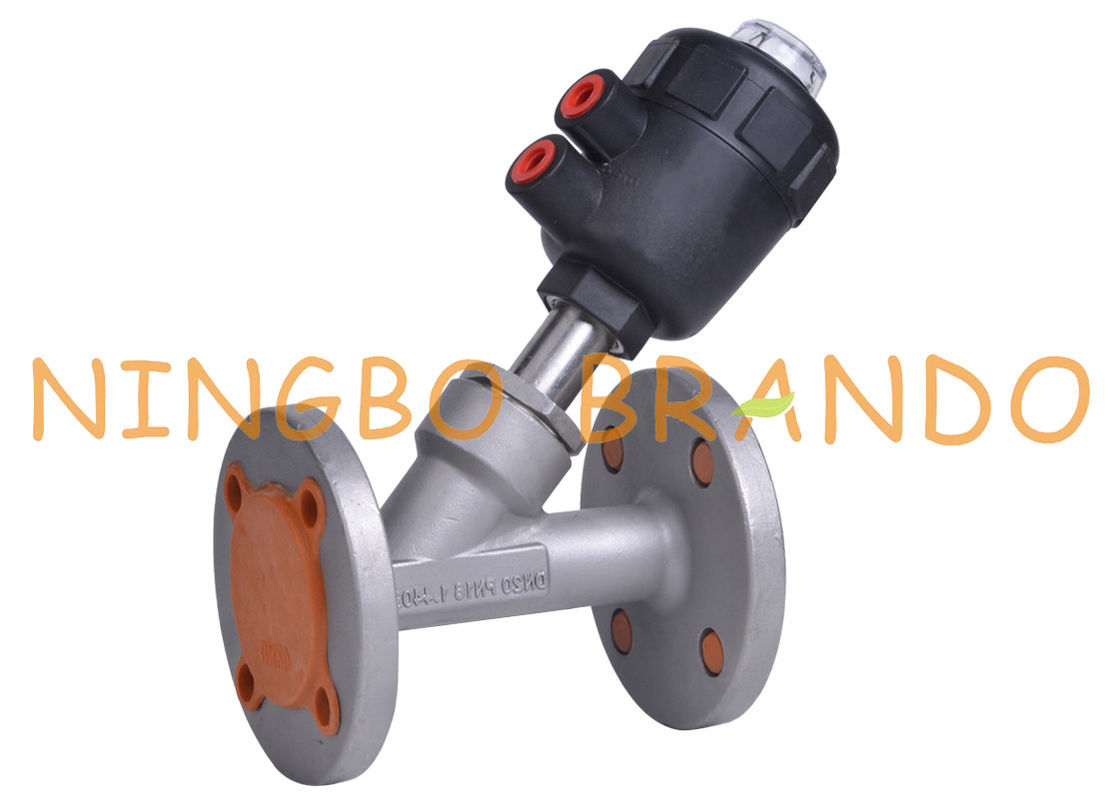

2'' DN50 PN16 Pneumatic Flanged Angle Seat Valve Stainless Steel
The angle-seat valves from BRANDO offer a long service life, reliable on-off and precise control performance. Due to the angled arrangement of the valve actuators in relation to the pipeline, the compact angle seat on-off and control valves can be installed and operated even in very confined spaces.
Compared to traditional globe valves, the angle seat design from BRANDO offers a higher flow capacity. This design is also easy to insulate, which significantly reduces heat losses at the angle seat valve itself. The body provides various combination with different actuator types for a wide range of applications in industrial piping systems.
Main Dimension of Angle Seat Valve:
Stainless Steel Body With Plastic Actuator
Technical Data of Angle Seat Valve:
Angle Seat Valve Disassembly Display:
Brando Factory Valve Production:
More Angle Seat Valves for you to choose:
|
|
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
