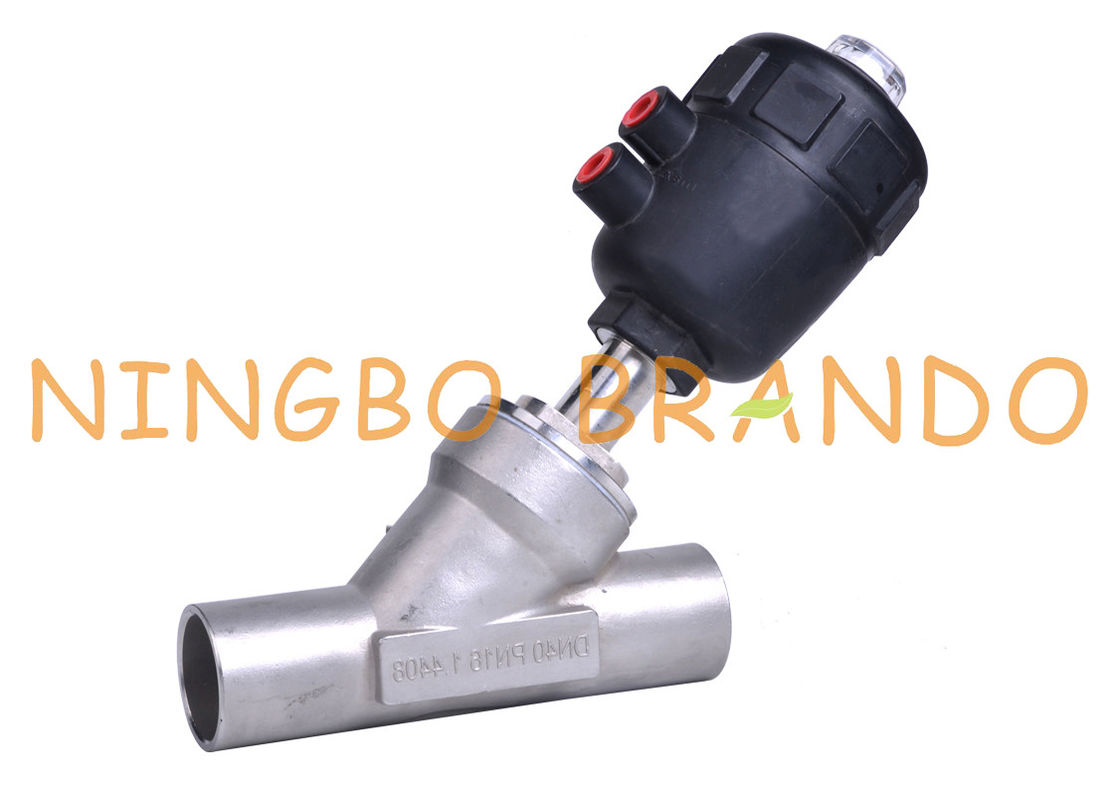

1.5'' DN40 PN16 Welding Pneumatic Angle Seat Valve Stainless Steel

1.5'' DN40 PN16 Welding Pneumatic Angle Seat Valve Stainless Steel

Angle seat valves are 2/2-way pneumatically actuated piston valves. The piston actuator provides a linear motion to lift the seal off its seat. Because the seat is positioned under an angle, the flow is minimally impeded in the open position, resulting in an excellent flow rate and a low pressure loss. They are used to regulate the flow of liquids, gases, steam, vacuum and even aggressive fluids. They can also operate with high temperatures and high viscosity media, even under zero differential pressures. The robust design makes angle seat valves a popular choice for harsh applications and they have very high cycle lives. Therefore, they are excellent long-life alternatives to ball valves. These valves are also suitable alternatives for solenoid valves, especially with contaminated, viscous media where typical solenoid valves would fail. They may be operated using a single acting or double acting configuration, which has an influence on its pressure rating. They can also be designed as manually operated or electrically operated.

Main Dimension of Angle Seat Valve:

Stainless Steel Body With Plastic Actuator

Technical Data of Angle Seat Valve:

Angle Seat Valve Disassembly Display:

Brando Factory Valve Production:

More Angle Seat Valves for you to choose:

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
