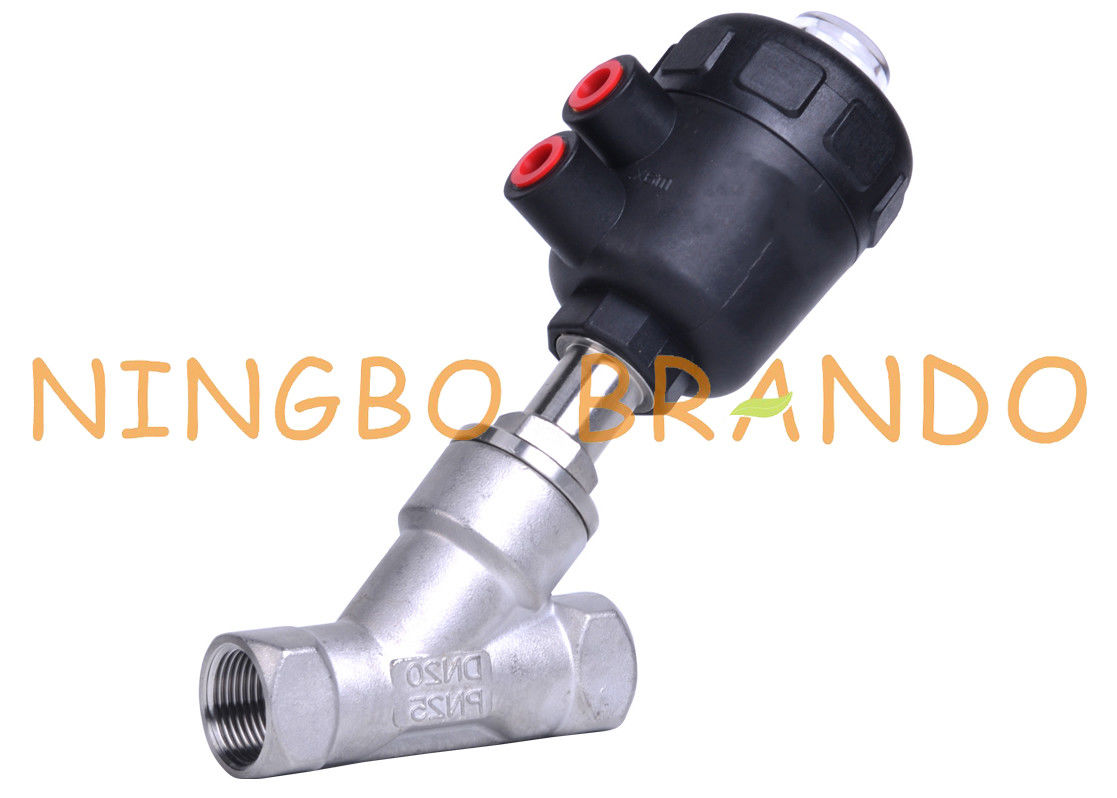

Y Type Plastic Head Pneumatic Angle Seat Valve 3/4'' DN20 PN25

Pneumatic angle seat valve is a general switch in the automatic control system which are suitable in demanding applications such as steam, water and aggressive media. They are especially suited for vacuum and fast acting applications that require a long service life. It is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, pharmacy and other automatic machinery and equipment. It is featured with water hammer protection, noise-free, reliable sealing performance.

Main Dimension of Angle Seat Valve:

Stainless Steel Body With Plastic Actuator

Y Type Plastic Head Pneumatic Angle Seat Valve 3/4'' DN20 PN25 0

Nominal Diameter	Actuator (mm)	D	A	B	C	φE	F	G	H
DN15	50	1/2''	85	170	16	64	44	112	140
DN20	50	3/4''	95	180	16	64	44	112	145
DN25	63	1''	105	215	19	80	52	120	175
DN32	63	1 1/4''	117	220	21	80	52	120	185
DN40	63	1 1/2''	129	230	21	80	52	120	185
DN50	80	2''	149	265	25	100	60	120	220
DN65	100	2 1/2''	155	252	26	126	73	140	300
DN80	100	3''	220	368	30	126	73	140	340
DN100	125	4''	235	420	35	168	97	164	395

Technical Data of Angle Seat Valve:

Medium Temperature	-10 to +180℃
Ambient Temperature	-10 to +60℃
Max. Working Pressure Range	1.6 MPa
Working Medium	Netral and Aggressive Liquid, Gas
Working Pressure	0.4 to 0.8 MPa
Body Material	SS304, SS316
Seal Material	PTFE
Connection Size	1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections	Threaded, Flanged, Welded, Clamp
Nominal Diameter	DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure	Normally Closed, Normally Open
