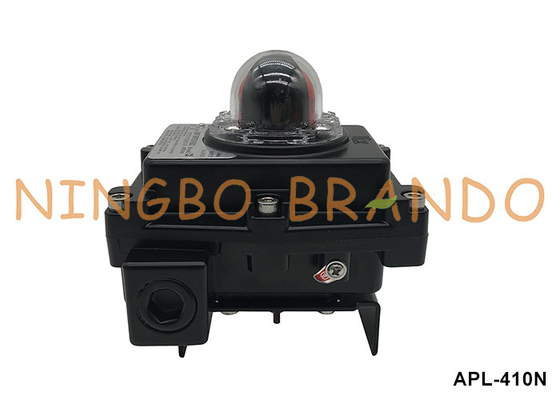

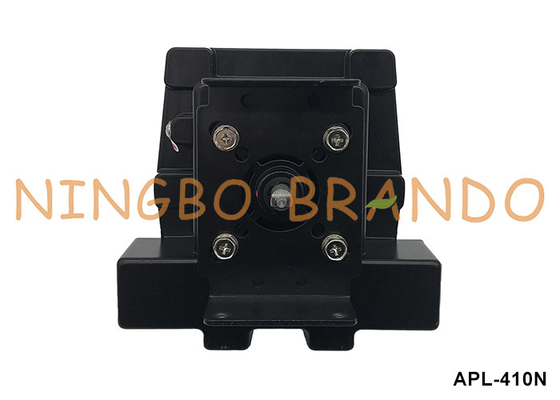

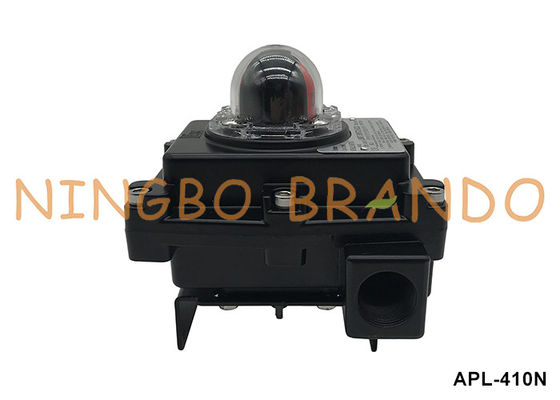

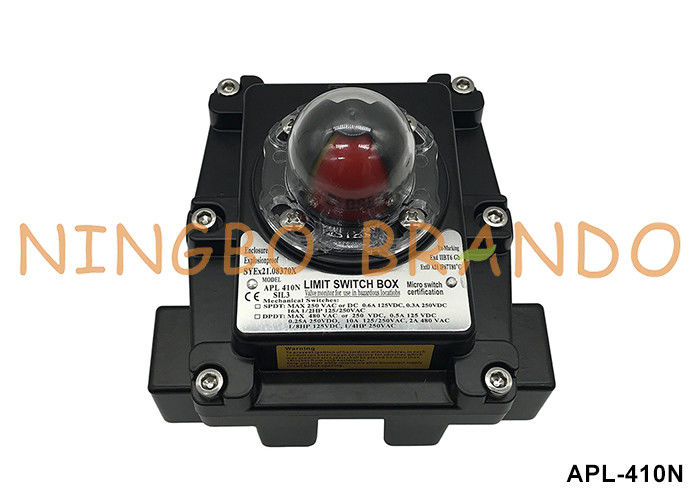

APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	BRANDO
Certification:	CE, ISO
Model Number:	APL-410N

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	Box, Carton, Pallet
Delivery Time:	4 to 7 working days
Payment Terms:	T/T, PayPal, Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Product Name:	Limit Switch Box	Cable Entry:	2xG3/4''
Enclosure:	Explosion Proof (Ex D IIB T6)	Terminal Points:	8 (0.08 To 2.5mm²)
Travel Angle:	0 To 90°	Dome Indicator:	2-Way, Close: Red, Open: Yellow
Switch Type:	2xMechanical Switches (2-SPDT)	Ambient Temperature:	-20 To 60℃
High Light:	APL-410N Limit Switch Box , Explosion Proof Limit Switch Box , Ball Valve Limit Switch Box

APL-410N Explosion Proof Limit Switch Box Valve Position Indicator For Ball Valve

Limit Switch Box (Valve Position Indicator) is activated by cams connected to the actuator shaft. When activated, they send discrete electrical signals to indicate actual valve position, usually confirming that a valve fully opened or closed operated remotely.

Order Code:

APL order code

Standard Specifications:

Model	APL-2N	APL-3N	APL-4N	APL-5N
Enclosure	IP67/NEMA4&4X		IP67/NEMA4&4X, Ex d IIB T6	IP67/NEMA4&4X, Ex d IIC T6
Cable Entries	2x G1/2''		2x G3/4''
Ambient Temperature	-20 to 80℃		-20 to 60℃
Terminal Points	8 (0.08 to 2.5mm²)
Travel Angle	0 to 90°
Dome Indicator	2-way, yellow (open) / red (close)
Switches	2x mechanical switches 2x proximity sensors
Color	Black (Chromated polyester powder coating)

Optional Specifications:

Model	APL-2N	APL-3N	APL-4N	APL-5N
Enclosure	IP68		IP68	IP68, Ex d IIB T6, Ex ia IIC T6
Cable Entries	2x NPT1/2'', M20, PG13.5, PF1/2'', PT1/2''		2x NPT3/4'', M20, PG13.5, PF3/4'', PT3/4'' or 4x NPT3/4'', M20, PG13.5, PF3/4'', PT3/4''	2x NPT3/4'', M20, PG13.5, PF3/4'', PT3/4''
Terminal Points	10, 12, 14, 16, 20 (0.08 to 2.5mm²)
Travel Angle	0 to 90°
Dome Indicator	3-way, green (open) / red (close)
Switches	4x mechanical switches 4x proximity sensors
Potentiometer Unit (PIU)	1k ohm, 5k ohm, 10k ohm
Current Position Transmitter (CPT)	4-20 mA dc 12.5-37VDC
Color	Red, Green, Blue, Yellow, Silver
