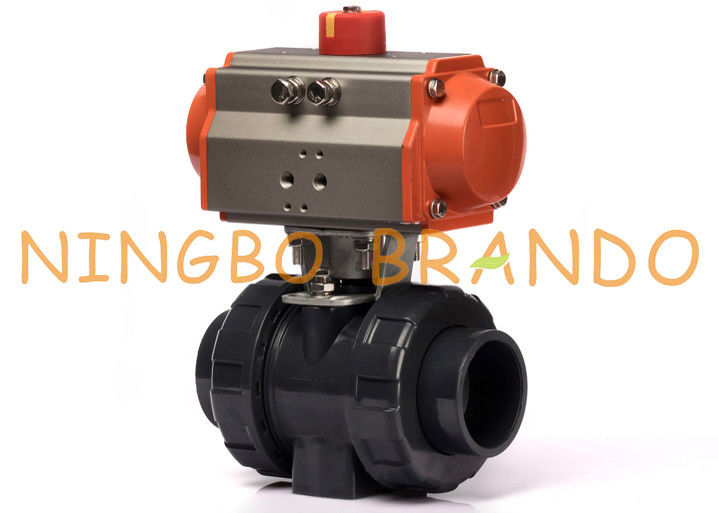

PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union

PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union

  • PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union
PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: Q691
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Structure: Ball Power: Pneumatic
Pipe Connection: Union Body Material: UPVC, CPVC
Seal Material: PTFE, TFM Working Medium: Neutral Gas, Air
Orifice Size: DN15 To DN100
High Light:

Pneumatic Plastic Ball Valve

,

Pneumatic PVC Ball Valve

,

Pneumatic Actuated PVC Ball Valve

PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union



Pneumatic PVC ball valves have PVC as their housing material. They are typically used for water management and irrigation applications as they are suitable for corrosive media (sea water), most acids and bases, salt solutions, organic solvents, and much more.



Pneumatic actuators control ball valves by the conversion of compressed air energy to mechanical motion. A rotary mechanical motion is required in a ball valve for a 90 degrees turn. Pneumatic actuator ball valves can be single-acting or double-acting. A single-acting pneumatic actuator uses a single compressed air input to turn the valve and a spring to return the valve to the normal position. A double-acting pneumatic actuator has two compressed air inputs to turn the valve and return the valve to the original position.



Technical Data of Pneumatic Ball Valve:

Pneumatic Ball Valve
Electric Ball Valve
Air Pressure: 0.4 to 0.8 MPa
Electric Actuator Power:
380VAC, 220VAC, 110VAC (50/60Hz), 24VDC
Electric Actuator Input: 4-20mA. DC
Control Medium: Neutral Gas, Air
Ambient Temperature: -20 to +60℃
Medium Temperature: -20 to +180℃
UPVC Ball Valve: -10 to +45℃
CPVC Ball Valve: -15 to +90℃
Normal Seal's Working Temperature: PTFE (-20 to +180℃), TFM (-30 to +230℃)
Manufacturing Standard: GB, ISO, ANSI, BS, DIN



Main Dimension of Pneumatic Ball Valve:

PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 0

PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 1



More Pneumatic Actuator Valves for you to choose:

Pneumatic Ball Valves
PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 2 PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 3 PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 4 PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 5
PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 6 PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 7 PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 8 PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 9
Pneumatic Butterfly Valves
PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 10 PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 11 PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 12 PVC Pneumatic Actuator Plastic Ball Valve 2'' DN50 UPVC CPVC Double Union 13
