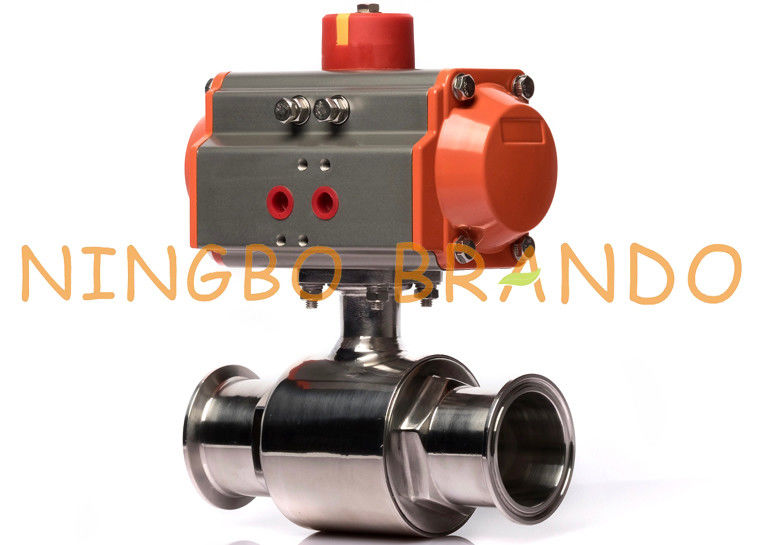

Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel

Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel

  • Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel
Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: Q681
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Power: Pneumatic Structure: Ball
Pipe Connection: Tri Clamp Body Material: Sanitary Stainless Steel (304, 316)
Seal Material: PTFE, TFM Working Medium: Neutral Gas, Air
High Light:

Pneumatic Sanitary Clamp Ball Valve

,

Pneumatic Tri Clamp Ball Valve

,

Pneumatic Tri-Clamp Ball Valve

Sanitary Stainless Steel Tri Clamp Ball Valve With Pneumatic Actuator



Pneumatic Actuated Ball Valve offered by BRANO helps to automatically control the fluid flow using BRANO pneumatic rotary actuator. BRANDO makes high quality Investment casted ball valves with ISO 5211 mounting pad are very much suitable for direct mounting of Pneumatic Actuator on Ball Valves. The Actuator used is of Single acting and Double acting depending upon the application. Single acting actuator is used where power fails causes valve to close. On the other hand, Double acting actuator is used where differential pressure on both the supply ports which leads to open and close the valve.



Technical Data of Pneumatic Ball Valve:

Pneumatic Ball Valve
Electric Ball Valve
Air Pressure: 0.4 to 0.8 MPa
Electric Actuator Power:
380VAC, 220VAC, 110VAC (50/60Hz), 24VDC
Electric Actuator Input: 4-20mA. DC
Control Medium: Neutral Gas, Air
Ambient Temperature: -20 to +60℃
Medium Temperature: -20 to +180℃
UPVC Ball Valve: -10 to +45℃
CPVC Ball Valve: -15 to +90℃
Normal Seal's Working Temperature: PTFE (-20 to +180℃), TFM (-30 to +230℃)
Manufacturing Standard: GB, ISO, ANSI, BS, DIN



Main Dimension of Pneumatic Ball Valve:

Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 0

Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 1



More Pneumatic Actuator Valves for you to choose:

Pneumatic Ball Valves
Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 2 Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 3 Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 4 Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 5
Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 6 Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 7 Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 8 Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 9
Pneumatic Butterfly Valves
Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 10 Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 11 Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 12 Pneumatic Actuator Tri Clamp Ball Valve Sanitary Stainless Steel 13



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
