| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | PU220A-E |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiation |
| Packaging Details: | Inner Box, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, Western Union,Paypal, MoneyGram |
| Supply Ability: | 300000 sets per month |
| Port Size: | 3/8'', 1/2'', 3/4'', 1'' | Orifice Size: | 13mm, 20mm, 25mm |
|---|---|---|---|
| Function: | 2 Way Normally Closed | Operation: | Assisted Lift |
| Body Material: | Brass | Seal Material: | NBR, FKM, EPDM |
| Working Pressure Range: | 0 To 7 Bar | Coil Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Coil Protection Class: | Explosion Proof | ||
| High Light: | Explosion Proof Solenoid Valve 24V DC,Explosion Proof Solenoid Valve 220V AC,Solenoid Valve PU220 |
||

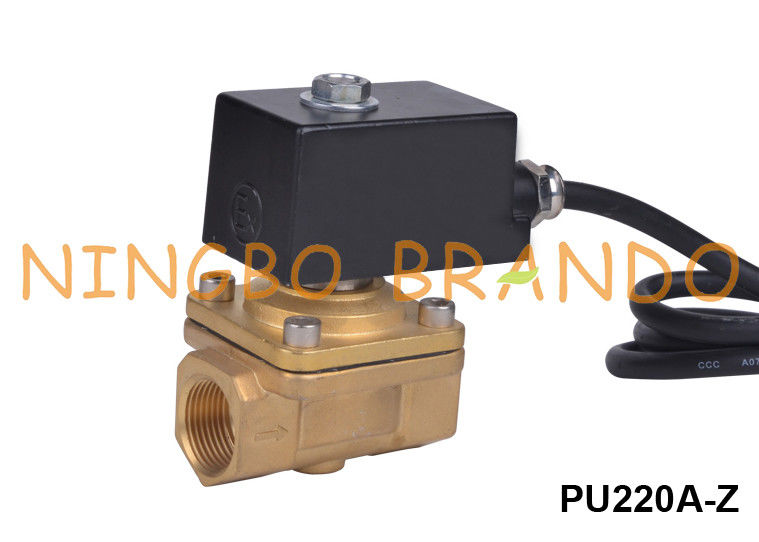

Explosion Proof 2/2 Way Brass Solenoid Valve PU220 24V DC 110V 220V AC
Product Features of PU220A Series Solenoid Valve:
1. Working Medium: Air, Water, Oil, etc
2. Working Pressure Range: 0 to 7 bar
3. Seal Material: NBR, EPDM, FKM
4. Body Material: Brass
5. Port Size: 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 13mm, 20mm, 25mm
7. Operation: Assisted Lift Diaphragm
8. Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Main Dimension of PU220A series Solenoid Valve:
Technical Data of PU220A series Solenoid Valve:
Ordering Code of PU220A series Solenoid Valve:
