| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 5404-Z |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | $3 to $50 per pc |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Working Medium: | Air, Water, Oil, Steam | Port Size: | 1/4'', 3/8'', 1/2'' |
|---|---|---|---|
| Orifice Size: | 13mm | Operation Mode: | 2 Way Normally Closed |
| Operation: | Piston Pilot Operated | Body Material: | Brass |
| Seal Material: | PTFE Seat Seal + FKM | Pressure Range: | 0.3 To 5 MPa |
| Fluid Temperature: | 0 To +180 °C | Coil Voltages: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Coil Protection Class: | Explosion Proof | ||
| High Light: | 1/2'' Explosion Proof Solenoid Valve,1/2'' High Pressure Solenoid Valve,Explosion Proof Solenoid Valves |
||

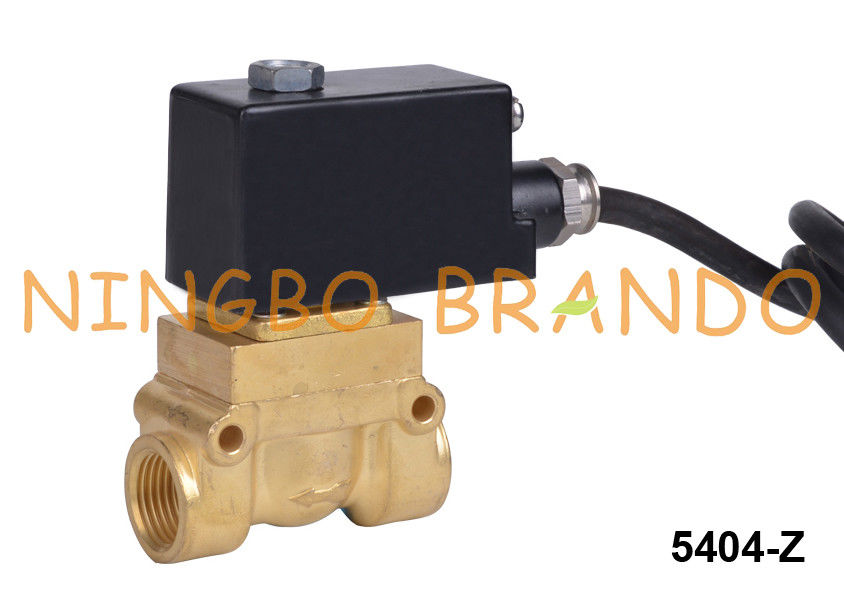

1/2'' Explosion Proof Brass Solenoid Valve High Pressure 5 MPa 24V 220V
Product Features of 5404 Solenoid Valve:
1. Working Medium: Air, Water, Oil, Steam, etc
2. Working Pressure Range: 0.3 to 5 MPa
3. Seal Material: PTFE + FKM
4. Body Material: Brass
5. Port Size: 1/4'', 3/8'', 1/2'', 3/4'', 1''
6. Orifice Size: 13mm, 25mm
7. Operation: Piston Pilot Operated
8. Coil Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of 5404 Solenoid Valve:
Main Dimension of 5404 Solenoid Valve:
Brando Solenoid Valve Factory Production Video:
More Explosion Proof Solenoid Valves for you to choose:
|
|
|
|
|
|
|
|
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
