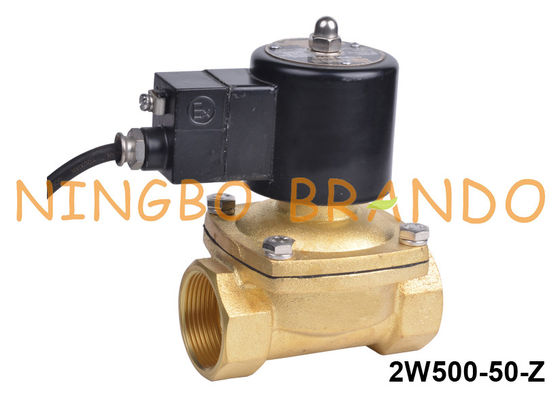

Name: 2'' Explosion Proof Water Brass Solenoid Valve 12V 24V DC 110V 220V AC
Brand: Brando
SKU: 2W500-50-Z
Rating: 4.7 (129 reviews)

Home Products Brass Solenoid Valve

2'' Explosion Proof Water Brass Solenoid Valve 12V 24V DC 110V 220V AC

Product Details:

Place of Origin:	China
Brand Name:	Brando
Certification:	CE
Model Number:	2W500-50-Z

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Price:	Negotiation
Packaging Details:	Inner boxes, Carton, Pallet
Delivery Time:	4-8 days
Payment Terms:	L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability:	100000 pcs per month

Contact Now

Detailed Product Description

Port Size:	2''	Orifice Size:	50mm
Operation Mode:	2 Way Normally Closed	Action:	Direct Lifting Diaphragm
Working Fluids:	Air, Water, Oil, Gas	Body Material:	Brass
Diaphragm Material:	NBR, FKM, EPDM	Voltages:	12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Pressure Range:	0 To 1 MPa	Coil Protection Class:	Explosion Proof
High Light:	Explosion Proof Solenoid Valve 2'' , Explosion Proof Solenoid Valve 24V , Explosion Proof Solenoid Valve 220V

2'' Explosion Proof Water Brass Solenoid Valve 12V 24V DC 110V 220V AC

Product Features:

1. Function Options: 2 Way Normally Closed
2. Operation Options: Direct Lifting Diaphragm
3. Port Size Options: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', etc;
4. Orifice Size Options: 15mm, 20mm, 25mm, 35mm, 40mm, 50mm
5. Medium Options: Water, Air, Gas, Oil, etc.

6. Valve Body Material Opetions: Brass, Stainless Steel
7. Seal Material Options: NBR, EPDM, FKM;
8. Coil Voltage Options: 12VDC 24VDC, 24VAC, 110VAC, 220VAC, etc;
9. Coil Protection Class Option: IP65, IP67, Ex Proof, etc;

Ordering Code of Brass Solenoid Valve:

2'' Explosion Proof Water Brass Solenoid Valve 12V 24V DC 110V 220V AC 0

Technical Data of Solenoid Valve:

2W Series (Brass)	2W025-08	2W040-10	2W160-15	2W200-20	2W250-25	2W350-35	2W400-40	2W500-50
2S Series (SS304)	2S025-08	2S040-10	2S160-15	2S200-20	2S250-25	2S350-35	2S400-40	2S500-50
Orifice Size (mm)	2.5	4	15	20	25	35	40	50
Port Size (Inch)	1/4''	3/8''	1/2''	3/4''	1''	1-1/4''	1-1/2''	2''
Medium	Water, Air, Oil, Gas
Action	Direct Acting		Semi-Direct Diaphragm Operated
Function	2 Way, Normally Closed / Normally Open
Fluid Viscosity	20 CST below
Pressure Range	0 to 1.0 Mpa
Temp. Range	-5 to +80℃ (NBR) -30 to +150℃ (FKM)

Main Dimension of Solenoid Valve:

2'' Explosion Proof Water Brass Solenoid Valve 12V 24V DC 110V 220V AC 1

2S Series (SS304)	2W Series (Brass)	A	B	C	D	E
2S025-06	2W025-06	64.5	30	75	43	1/8''
2S025-08	2W025-08	64.5	30	75	43	1/4''
2S040-10	2W040-10	70.6	32	82.4	53	3/8''
2S160-15	2W160-15	101.5	57	117	69	1/2''
2S200-20	2W200-20	107	57	123.5	73	3/4''
2S250-25	2W250-25	111.5	73.5	134.5	99	1''
2S350-35	2W350-35	142	95	172	123	1-1/4''
2S400-40	2W400-40	142	95	172	123	1-1/2''
2S500-50	2W500-50	172	123	209	168	2''
