| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 12BA-B |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 1/8'', 1/4'', 3/8'' | Orifice Size: | 1.6mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm |
|---|---|---|---|
| Operation: | Direct Acting | Body Material: | Brass |
| Working Medium: | Air, Water, Etc | Seal Material: | NBR, FKM, EPDM |
| Pressure Range: | 0 To 1.2 MPa | Latching Coil Voltages: | 6VDC, 12VDC, 24VDC |
| High Light: | Latching Solenoid Valve Water,Latching Solenoid Valve 6V,Latching Solenoid Valve 12V |
||

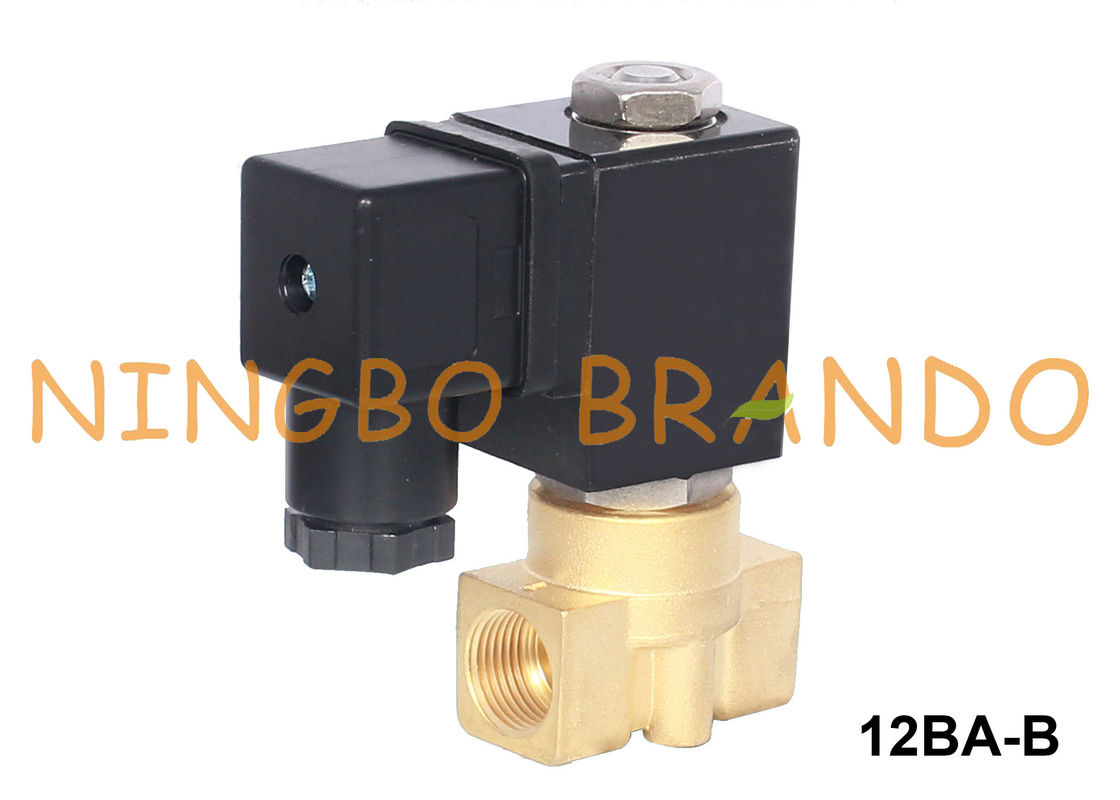

2 Way Direct Acting Water Air Latching Brass Solenoid Valve 6V 12V 24V DC
Product Features of Latching Brass Solenoid Valve:
1. Working Medium: Air, Water, etc.
2. Working Pressure Range: 0 to 1.2 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Port Size: 1/8'', 1/4'', 3/8''
5. Orifice Size: 1.6mm, 2.5mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM
8. Operation: Direct Acting
8. Latching Coil Voltage Option: 6VDC, 12VDC, 24VDC, Instant power-on time (0.3 to 0.5 sec)
Technical Data of Latching Brass Solenoid Valve:
More Latching Solenoid Valves for you to choose:
 |
|
|
Brando Factory Production Video of Solenoid Valves:
BRANDO Factory Production Picture of Solenoid Valves:
Packaging and Shiping of Brando Solenoid Valves:
|
|
|
| Internal Box | Carton | Pallet |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
