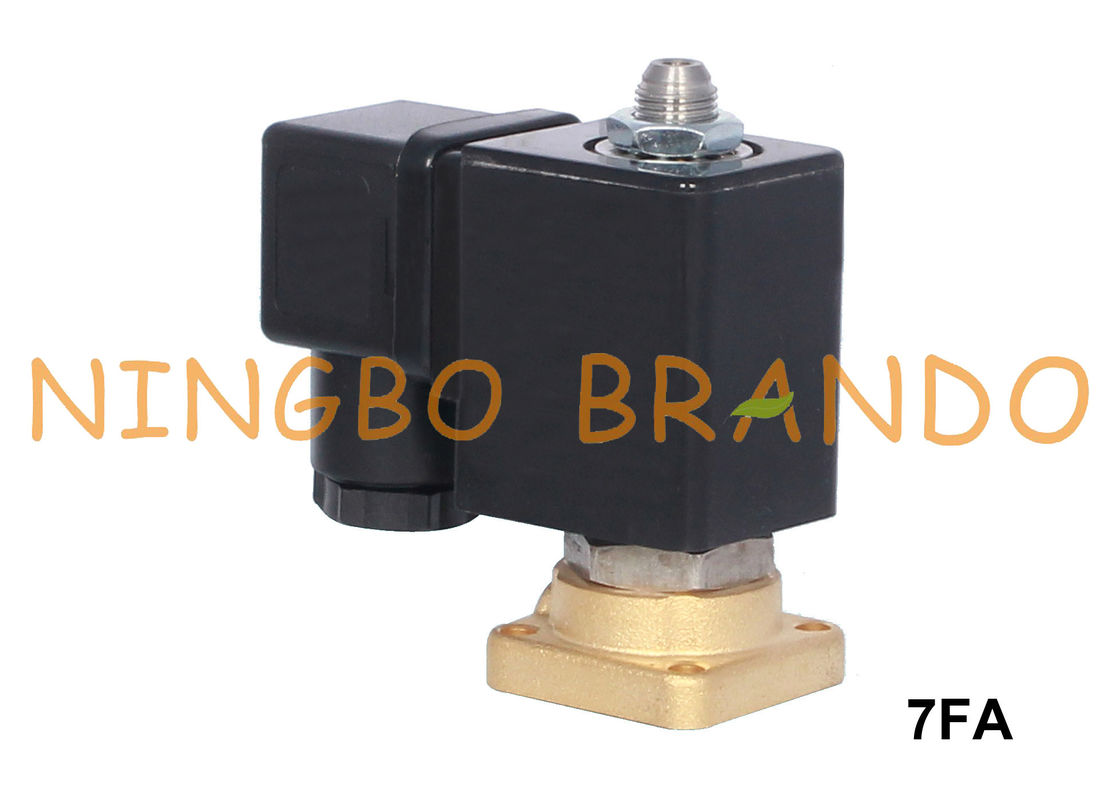

Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC

Espresso Coffee Maker 3 Way Solenoid Valve 220VAC 230VAC 240VAC

Product Features of Brass Solenoid Valve:

1. Working Medium: Air, Water, Steam, Oil etc.
2. Working Pressure Range: 0 to 1.5 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Connection: Sub Base
5. Orifice Size: 1.6mm, 2.5mm, 3mm, 4mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM
8. Function: 3 Way Normally Open
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Brass Solenoid Valve:

3 Way Normally Open

Main Dimension of Sub Base Brass Solenoid Valve:

Brando Factory Production Video of Solenoid Valves:
