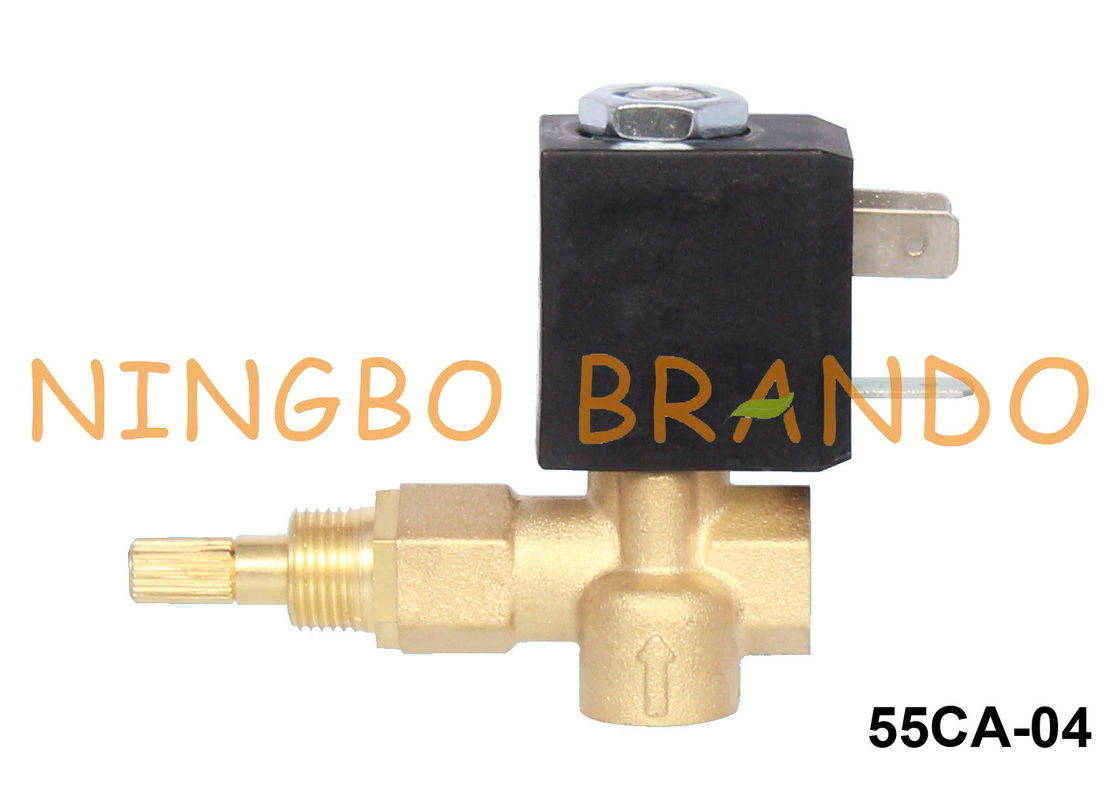

1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating

1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating

  • 1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating
1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 55CA-04
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Medium: Natural Gas, Coalgas, Etc Port Size: 1/8''
Orifice Size: 2.0mm Pipe Connection: Threaded
Seal Material: NBR, FKM, EPDM Body Material: Brass
Working Pressure Range: 0 To 6 Bar Function: 2 Way Normally Closed
Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
High Light:

Coal Gas Solenoid Valve

,

Gas Solenoid Valve For Oven

,

Solenoid Operated Gas Valve

1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating​



Product Feature:

1. Port Size: 1/8''
2. Orifice Size: 2.0mm
3. Body Material: Brass
4. Seal Material; FKM
5. Working Medium; Natural Gas, Coalgas, etc
6. Working Medium Temperature Range: -30 ℃ to +150℃
7. Working Pressure Range: 0 to 6 Bar
8. Voltages: DC: 12V, 24V; AC: 24V, 110V, 120V, 220V, 230V (50/60Hz)



Dimension and Data of Gas Solenoid Valve:

1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating 0

Working Medium
Coalgas, Natural Gas, etc
Working Temperature
FKM: -30 to +150℃
Working Pressure
0 to 6 Bar
Port Size
1/8''
Orifice Size
2.0mm
Function
2 Way Normally Closed
Operation
Direct Acting
Voltage
DC: 12VDC, 24VDC
AC: 24VAC, 110VAC, 120VAC, 220VAC, 230VAC (50/60Hz)
Tolerance
±10%
Material
Body: Brass or Stainless Steel
Seal: FKM
Armature Tube: Stainless Steel 304
Plunger: Stainless Steel 430F
Stop: Stainless Steel 430F
Spring: Stainless Steel 304
Shading ring: Stainless Steel 304



Brando Factory Production of Solenoid Valves:



More Gas Solenoid Valves for you to choose:

1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating 1 1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating 2 1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating 3
1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating 4 1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating 5 1/8'' Flow Adjustable Coal Gas Brass Solenoid Valve For Oven Heating 6



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
