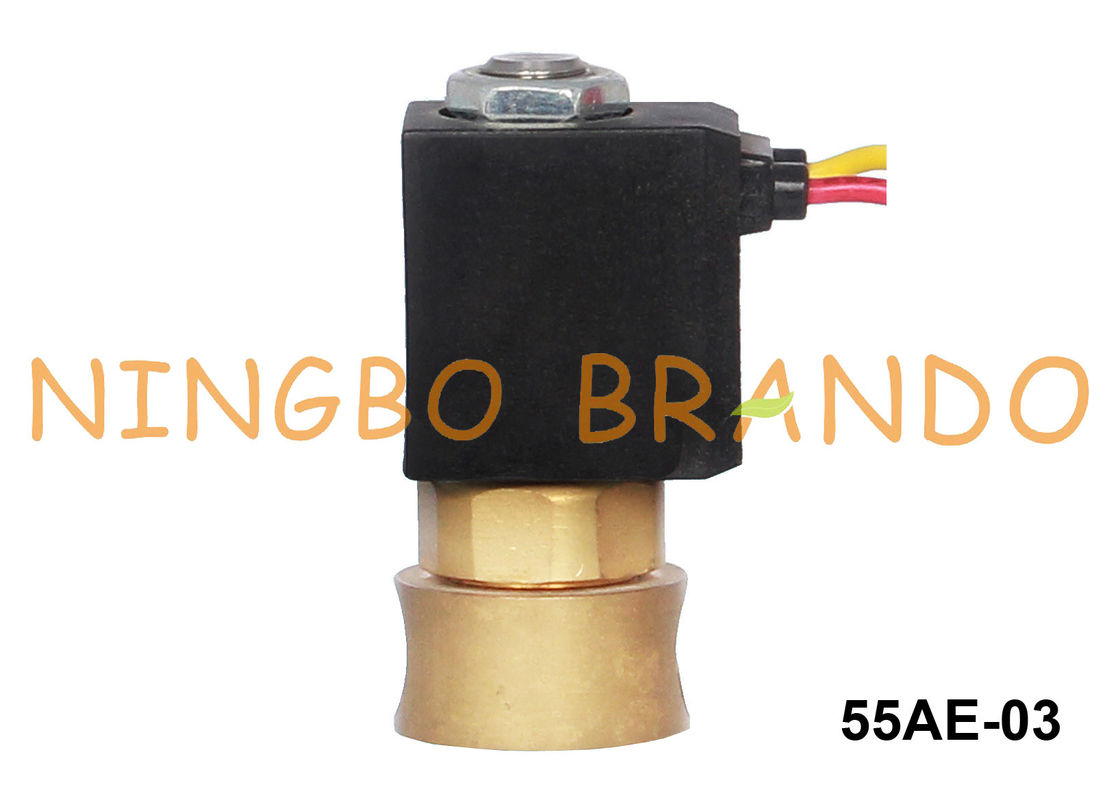

1/8'' 2-Way Direct Operated Brass Solenoid Valve FKM Seal 24V 220V

1/8'' 2-Way Direct Operated Brass Solenoid Valve FKM Seal 24V 220V

  • 1/8'' 2-Way Direct Operated Brass Solenoid Valve FKM Seal 24V 220V
1/8'' 2-Way Direct Operated Brass Solenoid Valve FKM Seal 24V 220V
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: 55AE-03
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Medium: Water, Air, Oil, Hot Water, Steam, Etc Port Size: 1/8''
Orifice Size: 2.5mm Seal Material: FKM
Body Material: Brass Working Pressure Range: 0 To 10 Bar
Function: 2 Way Normally Closed Coil Voltage: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC
High Light:

Direct Operated Solenoid Valve

,

2-Way Brass Solenoid Valve

,

Solenoid Valve FKM Seal

1/8'' 2-Way Direct Operated Brass Solenoid Valve FKM Seal 24V 220V



Product Feature of Brass Solenoid Valve:

1. Port Size: 1/8''
2. Orifice Size: 2.5mm
3. Body Material: Brass
4. Seal Material; FKM
5. Working Medium; Water, Air, Oil, Steam, etc
6. Working Medium Temperature Range: FKM: -30 ℃ to +150℃
7. Working Pressure Range: 0 to 10 Bar
8. Voltages: DC: 12V, 24V; AC: 24V, 110V, 120V, 220V, 230V (50/60Hz)



Dimension and Data of Brass Solenoid Valve:

1/8'' 2-Way Direct Operated Brass Solenoid Valve FKM Seal 24V 220V 0

Working Medium
Water, Air, Oil, Hot Water, Steam, etc
Working Temperature
FKM: -30 to +150℃
Working Pressure
0 to 10 Bar
Port Size
1/8''
Orifice Size
2.5mm
Function
2 Way Normally Closed
Operation
Direct Acting
Voltage
DC: 12VDC, 24VDC
AC: 24VAC, 110VAC, 120VAC, 220VAC, 230VAC (50/60Hz)
Tolerance
±10%
Material
Body: Brass or Stainless Steel
Seal: FKM
Armature Tube: Stainless Steel 304
Plunger: Stainless Steel 430F
Stop: Stainless Steel 430F
Spring: Stainless Steel 304
Shading ring: Stainless Steel 304



Brando Factory Production of Solenoid Valves:


Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
