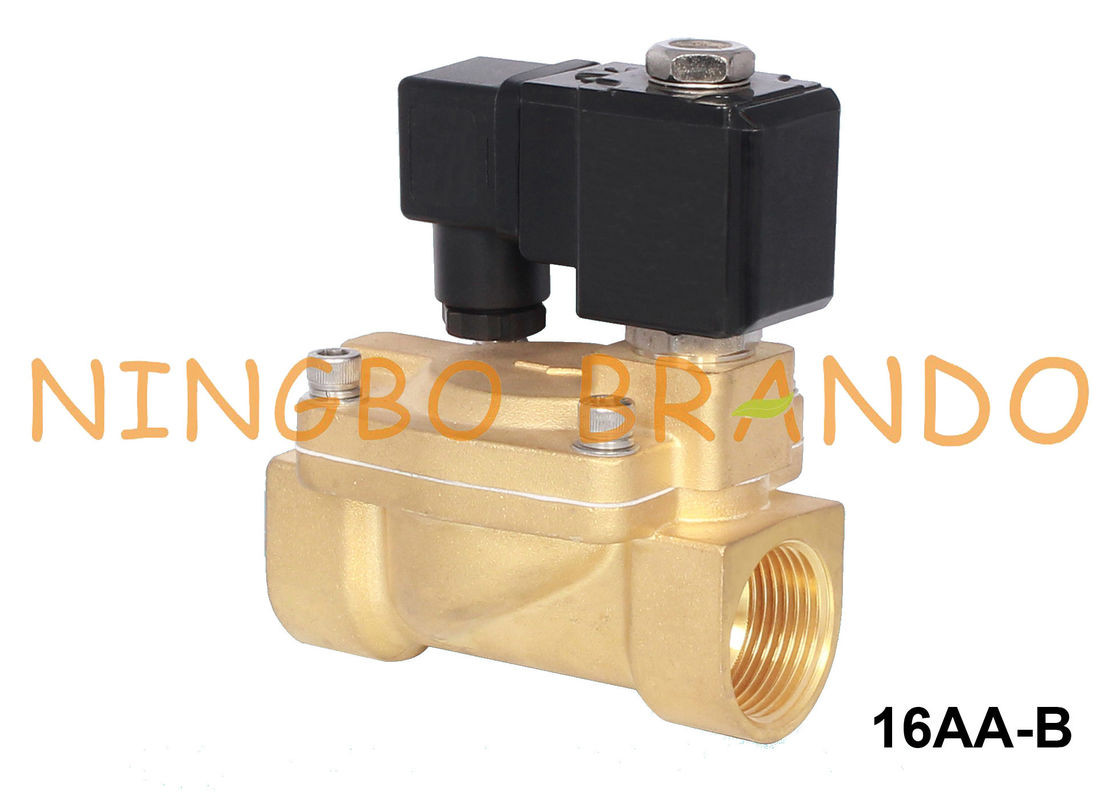

1'' PTFE Diaphragm Operated Brass Solenoid Valve 24VDC 220VAC

1'' PTFE Diaphragm Operated Brass Solenoid Valve 24VDC 220VAC

Product Features of Solenoid Valve:

1. Working Medium: Air, Hot Water, Steam, Ammonia, Oil etc.
2. Working Pressure Range: 0.3 to 16 bar (See the parameter table below for details)
3. Medium Temperature Range: PTFE (-30 to +200℃)
4. Port Size: 3/8'', 1/2'', 3/4'', 1''
5. Orifice Size: 12mm, 15mm, 20mm, 25mm
6. Body Material: Brass, Stainless Steel
7. Diaphragm Material: PTFE
8. Function: 2 Way Normally Closed
9. Operation: Diaphragm Pilot Operated
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)

Technical Data of Solenoid Valve:

Main Dimension of Solenoid Valve:

Brando Factory Production of Solenoid Valves:

More Steam Solenoid Valves for you to choose:

Brass Solenoid Valves

Stainless Steel Solenoid Valves
