| Place of Origin: | China |
| Brand Name: | Brando |
| Certification: | CE |
| Model Number: | 12BA-B |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Inner boxes, Carton, Pallet |
| Delivery Time: | 4-8 days |
| Payment Terms: | L/C, T/T, PayPal, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per month |
| Port Size: | 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' | Orifice Size: | 12mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm |
|---|---|---|---|
| Operation: | Diaphragm Pilot Operated | Body Material: | Brass |
| Working Medium: | Air, Water, Etc | Seal Material: | NBR, FKM, EPDM |
| Pressure Range: | 0.03 To 1.0MPa | Latching Coil Voltages: | 6VDC, 12VDC, 24VDC |
| High Light: | Latching Solenoid Valve 3/4'',Latching Water Solenoid Valve,Latching Air Solenoid Valve |
||

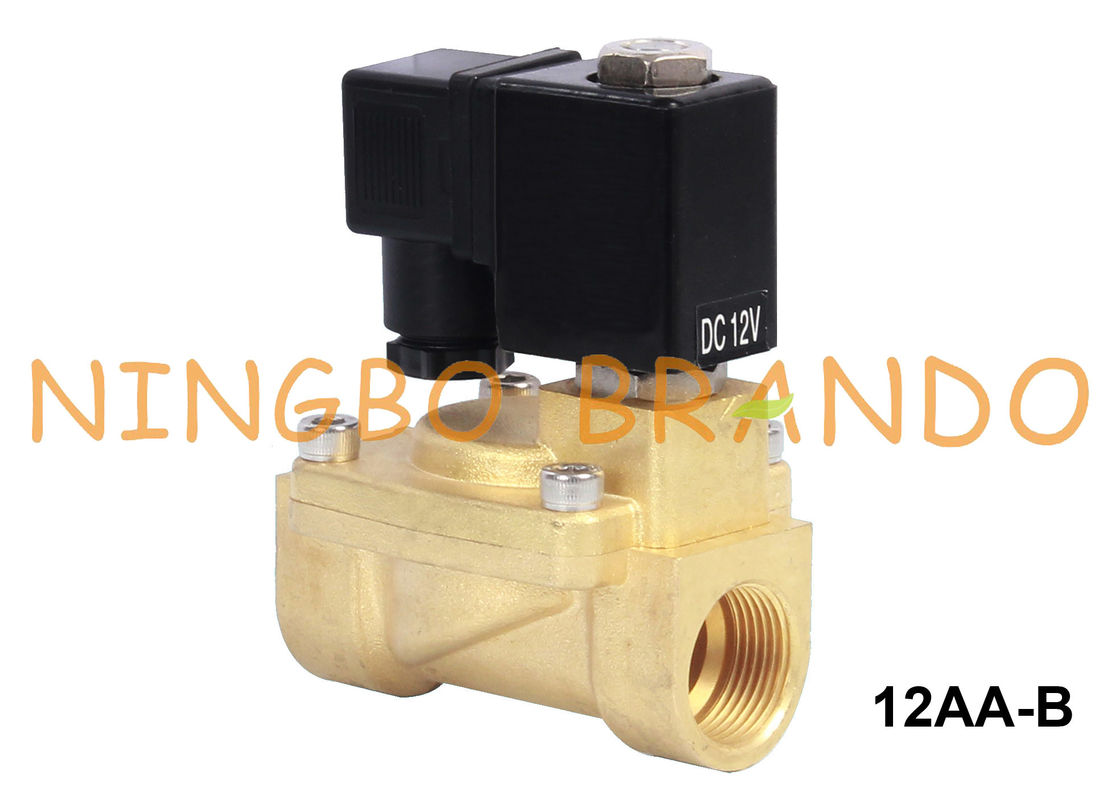

3/4'' Water Air Latching Brass Electric Solenoid Valve 6V 12V 24V DC
Product Features of Latching Brass Solenoid Valve:
1. Working Medium: Air, Water, etc.
2. Working Pressure Range: 0 to 1.0 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Port Size: 3/8'', 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2''
5. Orifice Size: 12mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM
8. Operation: Diaphragm Pilot Operated
8. Latching Coil Voltage Option: 6VDC, 12VDC, 24VDC, Instant power-on time (0.3 to 0.5 sec)
Technical Data of Latching Brass Solenoid Valve:
Main Dimension of Latching Brass Solenoid Valve:
