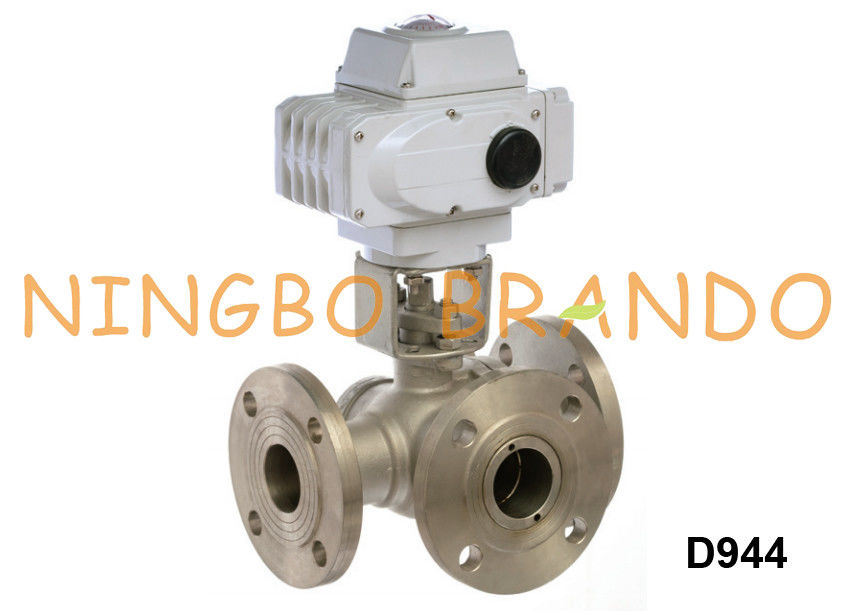

3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC

3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC

  • 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC
3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: Q944
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Way Number: 3 Way Orifice Size: 15mm To 200mm
Structure: Ball Power: Electric
Pipe Connection: Flanged Body Material: Cast Steel, SS304, SS316
Seal Material: PTFE, TFM Medium Temperature: PTFE: -20 To +180℃, TFM: -30 To +230℃
Working Medium: Neutral Gas, Air
Highlight:

3 Way Electric Actuated Ball Valve

,

Electric Flange Ball Valve

,

3 Way Electric Ball Valve

3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC



BRANDO offer you good quality ball valve with electric actuator with following advantages:



1. Multi actuator types for choice: On/Off type, Modulating type, intelligent type and explosion-proof type

2. Available in 12V, 24VDC; 110V, 220V, 380VAC

3. Large size range for choice. 1/2" to 8"

4. Various connection type for choice. Threaded, flanged, tri-clamp and welding

5. Overloading protection & low failure rate



Ball Valve With Electric Actuator is driven by power supply and signal. Features of ball valve with electric actuator including long working time, remote control, high flow rates, a wide range of applications. Best choice for your actuation solution.



Technical Data of Electric Ball Valve:

Pneumatic Ball Valve
Electric Ball Valve
Air Pressure: 0.4 to 0.8 MPa
Electric Actuator Power:
380VAC, 220VAC, 110VAC (50/60Hz), 24VDC
Electric Actuator Input: 4-20mA. DC
Control Medium: Neutral Gas, Air
Ambient Temperature: -20 to +60℃
Medium Temperature: -20 to +180℃
UPVC Ball Valve: -10 to +45℃
CPVC Ball Valve: -15 to +90℃
Normal Seal's Working Temperature: PTFE (-20 to +180℃), TFM (-30 to +230℃)
Manufacturing Standard: GB, ISO, ANSI, BS, DIN



Main Dimension of Electric Ball Valve:

3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 0

3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 1



Flow Direction of 3 Way Electric Actuator Ball Valve:

3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 2



More Electric Actuator Valves for you to choose:

Electric Ball Valves
3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 3 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 4 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 5 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 6
3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 7 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 8 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 9 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 10
Electric Butterfly Valves
3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 11 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 12 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 13 3 Way Electric Actuated Flange Ball Valve Stainless Steel 24VDC 220VAC 14



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
