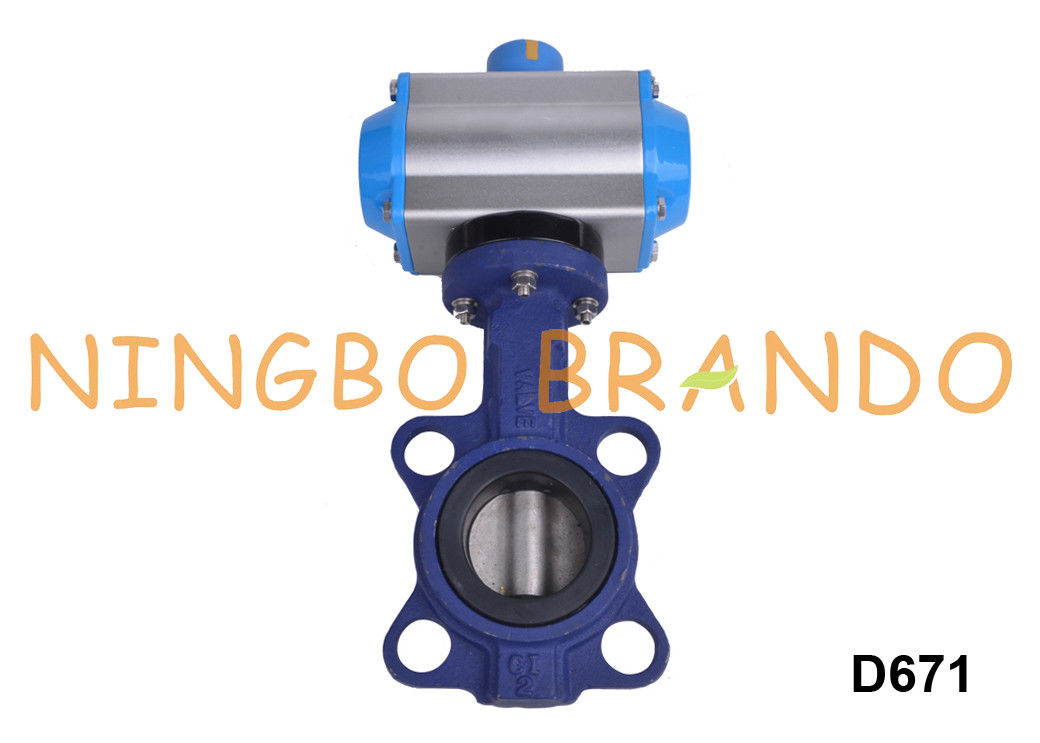

Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50

Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50

  • Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50
Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: D671
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Product Name: Pneumatic Butterfly Valve Orifice Size: DN40 To DN300
Connection Type: Wafer Body Material: Cast Iron, Cast Steel
Seal Material: Rubber Working Medium: Neutral Gas, Air
High Light:

Pneumatic Actuator Butterfly Valve

,

Pneumatic Wafer Type Butterfly Valve

,

Butterfly Valve With Pneumatic Actuator

Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50



Pneumatic actuator valves are valves driven by compressed air. Generally used with pneumatic components. It can be used to control the flow of various types of fluids such as air, water, steam, various corrosive media, mud, oil, liquid metal and radioactive media.
1. According to the type of valve body, it can be divided into: Pneumatic ball valve, Pneumatic butterfly valve and Pneumatic knife gate valve
2. According to the type of actuator, it can be divided into: Single-acting pneumatic valve and Double-acting pneumatic valve
3. Air Supply Pressure: 0.4 MPa to 0.8 MPa
4. Pneumatic Accessories: Positioner, limit switch, gearbox, pneumatic solenoid valve, and F.R.L



Technical Data of Pneumatic Butterfly Valve:

Pneumatic Butterfly Valve
Electric Butterfly Valve
Air Pressure: 0.4 to 0.8 MPa
Electric Actuator Power:
380VAC, 220VAC, 110VAC (50/60Hz), 24VDC
Electric Actuator Input: 4-20mA. DC
Control Medium: Neutral Gas, Air
Ambient Temperature: -20 to +60℃
Manufacturing Standard: GB, ISO, ANSI, BS, DIN



Main Dimension of Pneumatic Butterfly Valve:

Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 0

Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 1



More Pneumatic Actuator Valves for you to choose:

Pneumatic Ball Valves
Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 2 Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 3 Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 4 Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 5
Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 6 Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 7 Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 8 Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 9
Pneumatic Butterfly Valves
Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 10 Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 11 Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 12 Cast Iron Pneumatic Actuator Wafer Type Butterfly Valve 2'' DN50 13



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
