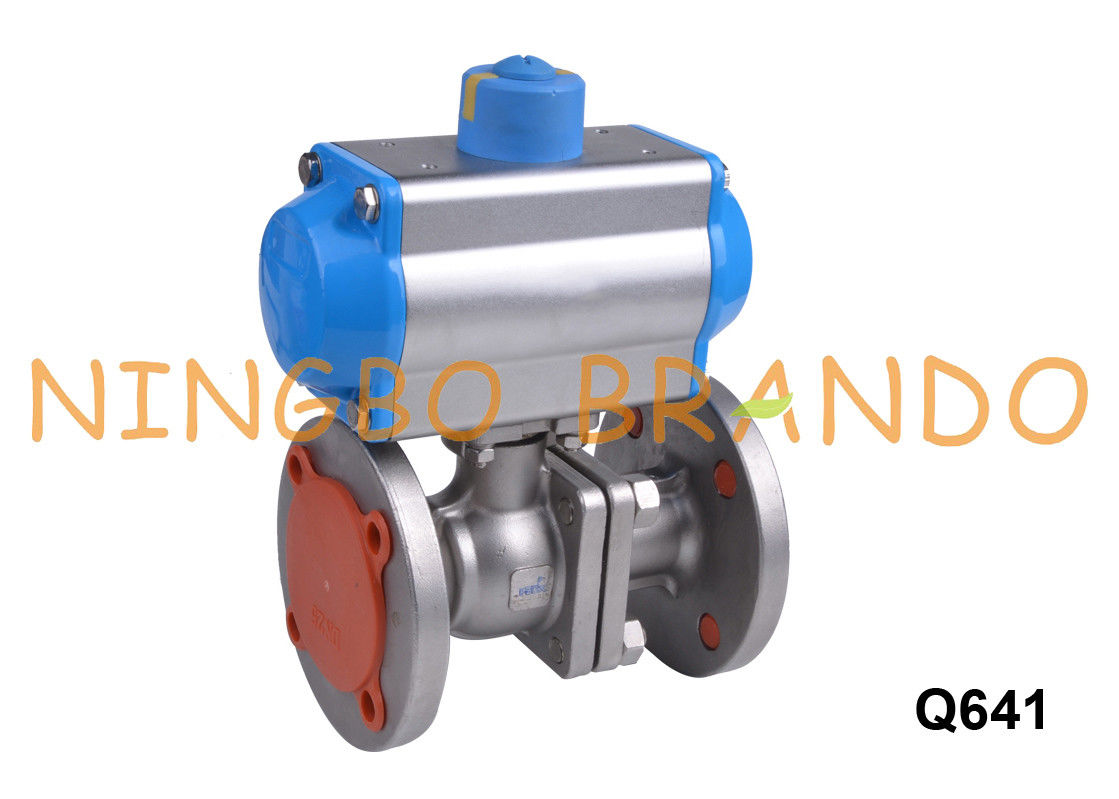

DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304

DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304

  • DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304
DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: Q641
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Orifice Size: DN15 To DN200 Structure: Ball
Power: Pneumatic Pipe Connection: Flanged
Body Material: Stainless Steel (304, 316) Seal Material: PTFE, TFM
Working Medium: Neutral Gas, Air
High Light:

Pneumatic Ball Valve DN25

,

1'' Pneumatic Ball Valve

,

Pneumatic Flanged Ball Valve

DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304



Pneumatic ball valves are used to control the flow of a media, liquid or gas, by means of a rotating ball with a bore. The rotating ball is controlled by a pneumatic actuator that is capable of turning it. A ball valve is one of the most common valves due to their simple operation, reliability, long service life, and wide range of application uses.



2-way pneumatic ball valves have 2 ports, an inlet and an outlet. The media flows from one direction to the other and the valve is used to open or close the flow. A 2-way ball valve is commonly called a shut off valve.



3-way pneumatic ball valves have 3 ports. The bore in the ball is not straight, but rather in an L or T formation. This allows for various circuit functions (flow directions) for the valve. It can be used to distribute, mix, or divert flow in the desired direction. Therefore, any of the 3 ports can be an inlet or an outlet.



Technical Data of Pneumatic Ball Valve:

Pneumatic Ball Valve
Electric Ball Valve
Air Pressure: 0.4 to 0.8 MPa
Electric Actuator Power:
380VAC, 220VAC, 110VAC (50/60Hz), 24VDC
Electric Actuator Input: 4-20mA. DC
Control Medium: Neutral Gas, Air
Ambient Temperature: -20 to +60℃
Medium Temperature: -20 to +180℃
UPVC Ball Valve: -10 to +45℃
CPVC Ball Valve: -15 to +90℃
Normal Seal's Working Temperature: PTFE (-20 to +180℃), TFM (-30 to +230℃)
Manufacturing Standard: GB, ISO, ANSI, BS, DIN



Main Dimension of Pneumatic Ball Valve:

DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 0

DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 1



More Pneumatic Actuator Valves for you to choose:

Pneumatic Ball Valves
DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 2 DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 3 DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 4 DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 5
DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 6 DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 7 DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 8 DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 9
Pneumatic Butterfly Valves
DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 10 DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 11 DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 12 DN25 1'' Flanged Pneumatic Actuated Ball Valve Stainless Steel 304 13
