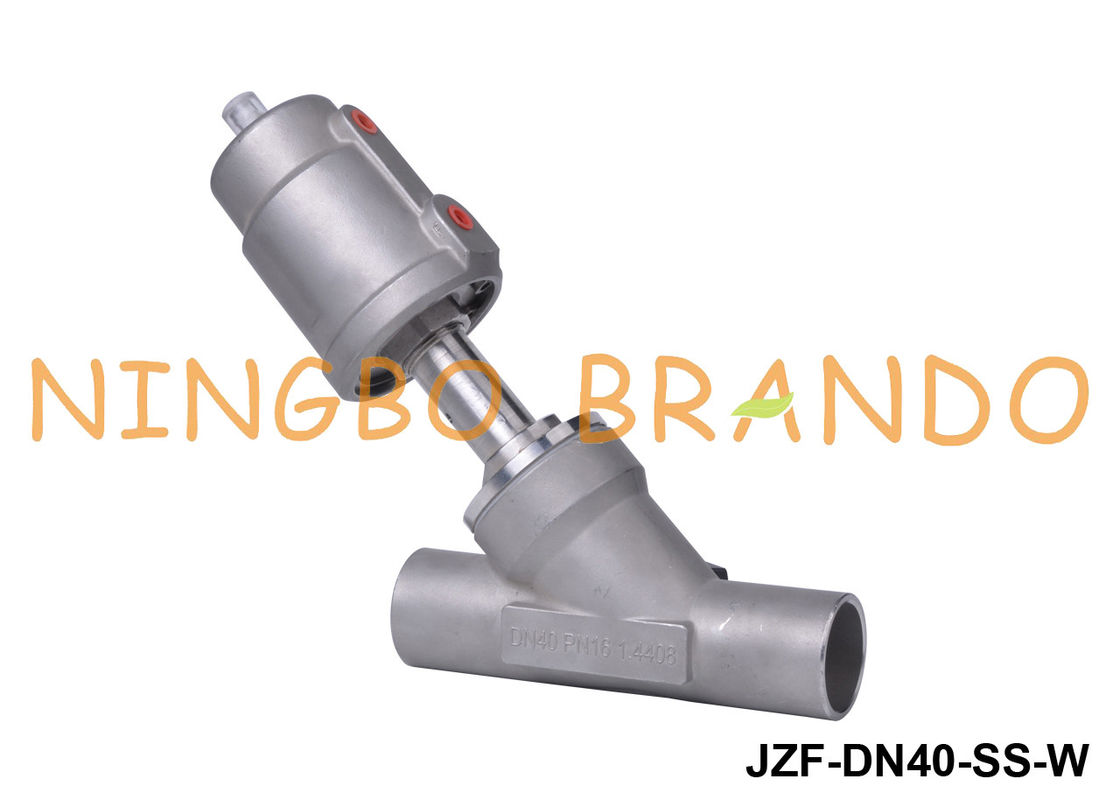

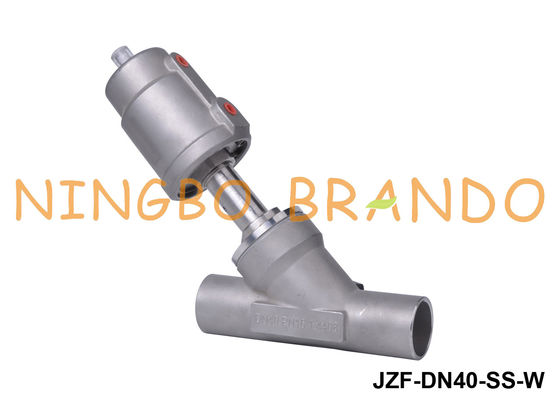

1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40

1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40

  • 1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40
1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: JZF-DN40-SS-W
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1 1/2'' Port Connections: Welded
Orifice Size: 40mm Working Fluids: Netral And Aggressive Liquid, Gas
Body Material: SS304, SS316 Seal Material: PTFE
Working Pressure Range: 0.4 To 0.8 MPa Max. Working Pressure Range: 1.6 MPa
High Light:

Pneumatic Actuated Angle Seat Valve

,

Welded Pneumatic Angle Seat Valve

,

Pneumatic Angle Seat Valve 1 1/2''

1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40



The pneumatic angle seat valve is an air operated linear process control valve that has an angled body to provide the maximum possible flow rate with minimal pressure loss across the piston valve when open. A piston actuator is connected to the valve plug and is available with either double acting or single acting function.



The piston valve bodies are typically available in bronze or stainless steel with various port sizes, pneumatic piston actuator sizes and materials plus a variety of extra facilities such as a stroke inhibitor, electrical position feedback and even fully modulating angle seat valves.



Main Dimension of Angle Seat Valve:



Stainless Steel Body With Stainless Steel Actuator

                                        1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40 0

Nominal Diameter
Actuator
(mm)
L
L1
L2
B
H
DN15
50
193
131.5
61.5
15.5
160
DN20
50
192
130
61.5
20.5
163
DN25
63
217
141
75.5
26.5
186
DN32
63
222
150.5
75.5
32.5
194
DN40
63
238
180
75.5
40.5
203
DN50
80
255
195
75.5
50
213



Technical Data of Angle Seat Valve:

Medium Temperature
-10 to +180℃
Ambient Temperature
-10 to +60℃
Max. Working Pressure Range
1.6 MPa
Working Medium
Netral and Aggressive Liquid, Gas
Working Pressure
0.4 to 0.8 MPa
Body Material
SS304, SS316
Seal Material
PTFE
Connection Size
1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections
Threaded, Flanged, Welded, Clamp
Nominal Diameter
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure
Normally Closed, Normally Open



Angle Seat Valve Disassembly Display:

1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40 1



Brando Factory Valve Production:



More Angle Seat Valves for you to choose:

1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40 2 1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40 3 1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40 4
1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40 5 1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40 6 1 1/2 Inch Welded Pneumatic Actuated Angle Seat Valve DN40 7



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
