1'' Y Type Tri Clamp Pneumatic Angle Seat Valve Stainless Steel

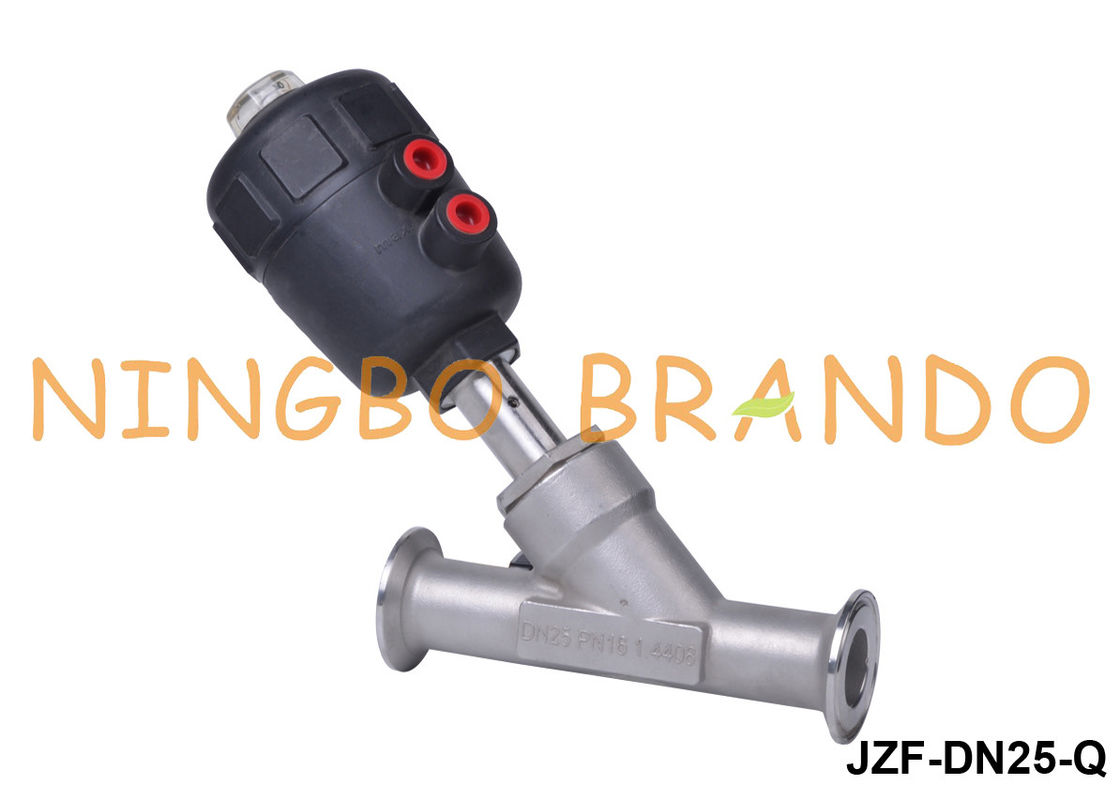

1'' Y Type Tri Clamp Pneumatic Angle Seat Valve Stainless Steel

  • 1'' Y Type Tri Clamp Pneumatic Angle Seat Valve Stainless Steel
1'' Y Type Tri Clamp Pneumatic Angle Seat Valve Stainless Steel
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: JZF-DN25-Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 1'' Port Connections: Tri Clamp
Orifice Size: 25mm Working Fluids: Netral And Aggressive Liquid, Gas
Body Material: SS304, SS316 Seal Material: PTFE
Working Pressure Range: 0.4 To 0.8 MPa Max. Working Pressure Range: 1.6 MPa
Highlight:

Pneumatically Actuated Angle Seat Valve

,

Angle Seat Piston Valve Pneumatic

,

Ar Actuated Angle Seat Valve

1'' Y Type Tri Clamp Pneumatic Angle Seat Valve Stainless Steel



An angle seat piston valve is a pneumatically-controlled valve with a piston actuator providing linear actuation to lift a seal off its seat. The seat is set at an angle to provide the maximum possible flow when unseated. Angle seat piston valves are particularly suited to applications where high temperatures and large flow rates are required, such as steam or water.



Pneumatic angle seat valve is a general switch in the automatic control system which is widely used in printing, dyeing, bleaching, food, washing, chemical, water treatment, pharmacy and other automatic machinery and equipment. It is featured with water hammer protection,noise-free, reliable sealing performance.



Main Dimension of Angle Seat Valve:



Stainless Steel Body With Plastic Actuator

                                  1'' Y Type Tri Clamp Pneumatic Angle Seat Valve Stainless Steel 0

Nominal
Diameter
Size
Quick Connection Size
Actuator
L
L1
L2
H
D
15
190
131.5
66.5
155
50.5
φ50
20
186
131.5
66.5
162
50.5
φ50
25
220
140.5
82.5
186
50.5
φ63
32
225
150.5
82.5
197
50.5
φ63
40
245
180
82.5
206
50.5
φ63
50
274
195
102.5
227
64
φ80



Technical Data of Angle Seat Valve:

Medium Temperature
-10 to +180℃
Ambient Temperature
-10 to +60℃
Max. Working Pressure Range
1.6 MPa
Working Medium
Netral and Aggressive Liquid, Gas
Working Pressure
0.4 to 0.8 MPa
Body Material
SS304, SS316
Seal Material
PTFE
Connection Size
1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections
Threaded, Flanged, Welded, Clamp
Nominal Diameter
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure
Normally Closed, Normally Open



Angle Seat Valve Disassembly Display:
