2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head

2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head

  • 2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head
2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: JZF-DN65
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 100000 pcs per month
Contact Now
Detailed Product Description
Port Size: 2 1/2'' Port Connections: Threaded
Orifice Size: 65mm Working Fluids: Netral And Aggressive Liquid, Gas
Body Material: SS304, SS316 Seal Material: PTFE
Working Pressure Range: 0.4 To 0.8 MPa Max. Working Pressure Range: 1.6 MPa
High Light:

Threaded Angle Seat Valve

,

SUS304 Angle Seal Valve

,

Angle Seat Valve Plastic Head

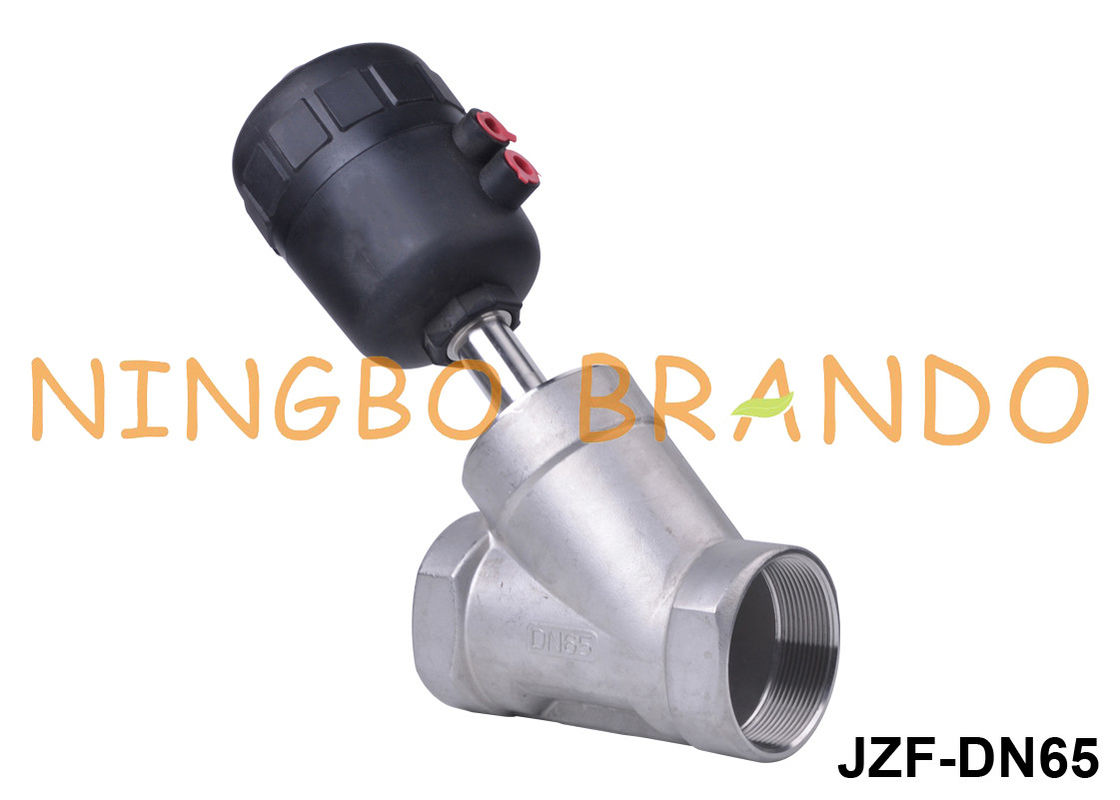

2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head



Angle Seat Valves have a robust construction similar to globe valves, but use a piston operated angle seat valve with a closure spring. The body is normally cast or die-forged in one piece. A plug is connected to the end of the piston which is seated on PTFE seats. The piston is designed to retract further from the seat, thereby providing maximum flow rate. They may be Normally Closed (NC), Normally Open (NO) or Double Acting. The piston actuator comes with threaded ports or with NAMUR ports which allows for direct mounting of NAMUR style solenoid valves.



Often, the actuator head can be rotated 360° to allow optimum position of air and electric lines in tight locations. The valve body is generally made of brass or stainless steel. Connection types include threaded, clamped or welded. Typically, a visual indicator on the top of the piston shows whether the valve is open or closed.



Main Dimension of Angle Seat Valve:



Stainless Steel Body With Plastic Actuator

                                  2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head 0

Nominal Diameter
Actuator
(mm)
D
A
B
C
φE
F
G
H
DN15
50
1/2''
85
170
16
64
44
112
140
DN20
50
3/4''
95
180
16
64
44
112
145
DN25
63
1''
105
215
19
80
52
120
175
DN32
63
1 1/4''
117
220
21
80
52
120
185
DN40
63
1 1/2''
129
230
21
80
52
120
185
DN50
80
2''
149
265
25
100
60
120
220
DN65
100
2 1/2''
155
252
26
126
73
140
300
DN80
100
3''
220
368
30
126
73
140
340
DN100
125
4''
235
420
35
168
97
164
395




Technical Data of Angle Seat Valve:

Medium Temperature
-10 to +180℃
Ambient Temperature
-10 to +60℃
Max. Working Pressure Range
1.6 MPa
Working Medium
Netral and Aggressive Liquid, Gas
Working Pressure
0.4 to 0.8 MPa
Body Material
SS304, SS316
Seal Material
PTFE
Connection Size
1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2'', 3'', 4''
Port Connections
Threaded, Flanged, Welded, Clamp
Nominal Diameter
DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100
Safety setting in case of power failure
Normally Closed, Normally Open



Angle Seat Valve Disassembly Display:

2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head 1



Brando Factory Valve Production:



More Angle Seat Valves for you to choose:

2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head 2 2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head 3 2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head 4
2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head 5 2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head 6 2 1/2'' Threaded SUS304 Pneumatic Angle Seat Valve With Plastic Head 7



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
