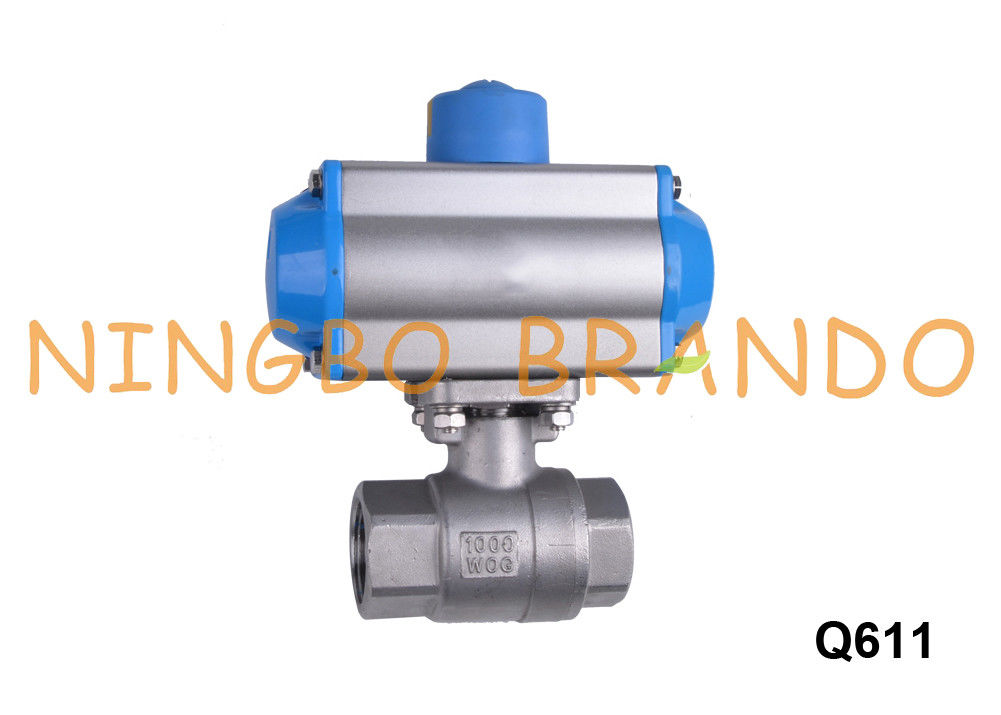

2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel

2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel

  • 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel
2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel
Product Details:
Place of Origin: China
Brand Name: Brando
Certification: CE
Model Number: Q611
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiation
Packaging Details: Inner boxes, Carton, Pallet
Delivery Time: 4-8 days
Payment Terms: L/C, T/T, PayPal, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Contact Now
Detailed Product Description
Structure: Ball Power: Pneumatic
Pipe Connection: Female Thread Body Material: Stainless Steel (304, 316)
Seal Material: PTFE, TFM Working Medium: Neutral Gas, Air
Port Size: 1/2'' To 4''
High Light:

Pneumatically Actuated Ball Valve

,

Pneumatic Actuated Ball Valve

,

Stainless Steel Pneumatic Ball Valve

2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel



Ball valves can be combined with a pneumatic actuator (pneumatic ball valves) or an electric actuator (electric ball valves) for automation and/or for controlling remotely. Depending on the application, automating with a pneumatic actuator vs an electric one may be more advantageous, or vice-versa.



Pneumatic actuators control ball valves by the conversion of compressed air energy to mechanical motion. A rotary mechanical motion is required in a ball valve for a 90 degrees turn. Pneumatic actuator ball valves can be single-acting or double-acting. A single-acting pneumatic actuator uses a single compressed air input to turn the valve and a spring to return the valve to the normal position. A double-acting pneumatic actuator has two compressed air inputs to turn the valve and return the valve to the original position.



Technical Data of Pneumatic Ball Valve:

Pneumatic Ball Valve
Electric Ball Valve
Air Pressure: 0.4 to 0.8 MPa
Electric Actuator Power:
380VAC, 220VAC, 110VAC (50/60Hz), 24VDC
Electric Actuator Input: 4-20mA. DC
Control Medium: Neutral Gas, Air
Ambient Temperature: -20 to +60℃
Medium Temperature: -20 to +180℃
UPVC Ball Valve: -10 to +45℃
CPVC Ball Valve: -15 to +90℃
Normal Seal's Working Temperature: PTFE (-20 to +180℃), TFM (-30 to +230℃)
Manufacturing Standard: GB, ISO, ANSI, BS, DIN



Main Dimension of Pneumatic Ball Valve:

2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 0

2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 1



More Pneumatic Actuator Valves for you to choose:

Pneumatic Ball Valves
2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 2 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 3 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 4 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 5
2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 6 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 7 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 8 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 9
Pneumatic Butterfly Valves
2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 10 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 11 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 12 2 Way Thread Port Pneumatically Actuated Ball Valve Stainless Steel 13



Focus on your demands, Offer you best solution:



√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing



Welcome to your any question and inquiry!
